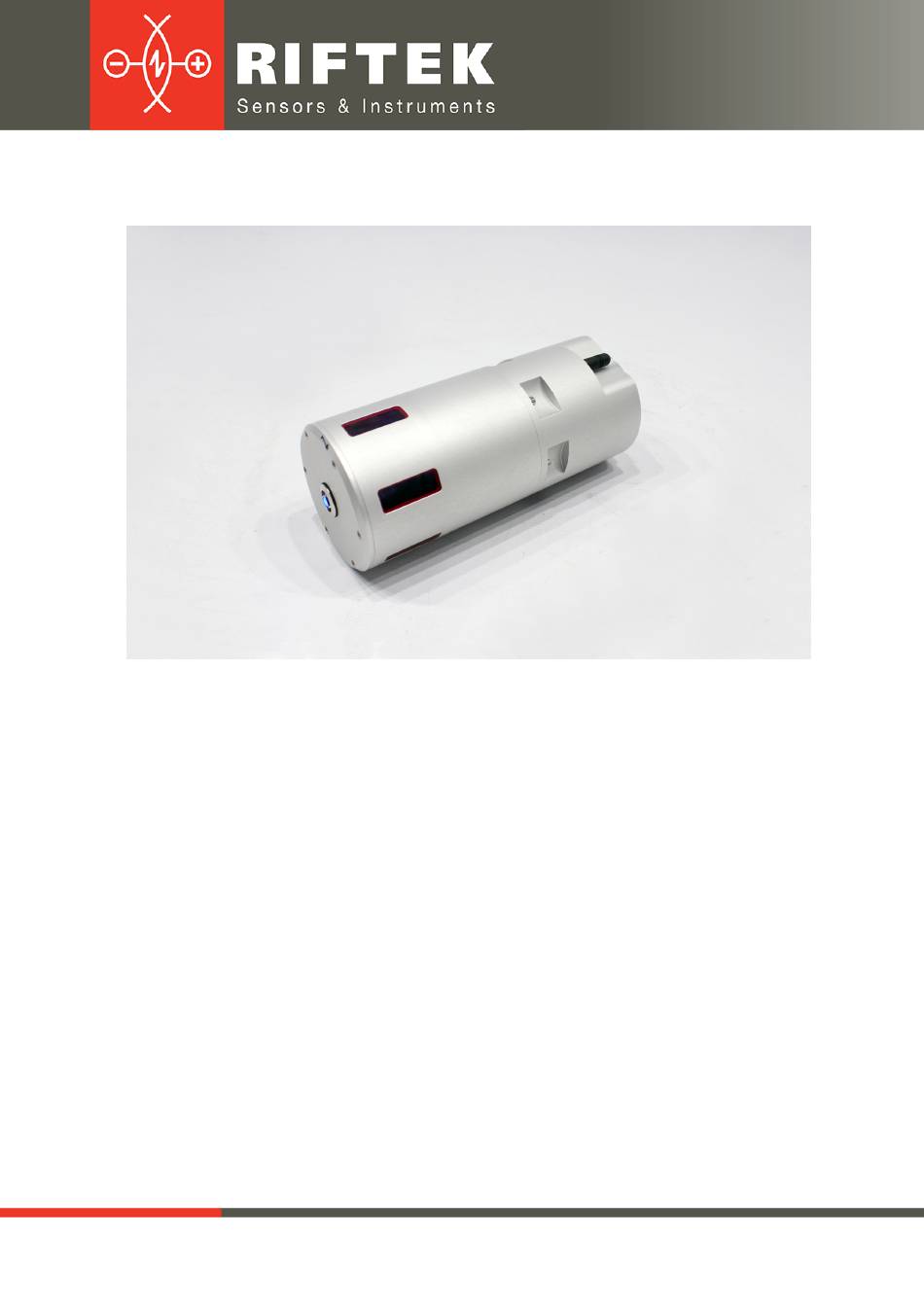

- Page 1 MULTISENSOR INNER DIAMETER MEASUREMENT SYSTEM RF040-100/150-Wi-Fi Series User's manual www.riftek.com info@riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series Contents Safety precautions .............................3 CE сompliance .............................3 Laser safety .............................3 General information .............................3 Basic technical data .............................4 Example of item designation when ordering .............................4 Structure and operating principle .............................4 Complete set to be supplied .............................5 Overall demands for mounting .............................6... -
Page 3: Safety Precautions
Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series Safety precautions · Use supply voltage and interfaces indicated in the system specification. · In connection/disconnection of cables, the system power must be switched off. · Do not use the system in locations close to powerful light sources. CE сompliance The system has been developed for use in industry and meets the requirements of the following Directives:... -
Page 4: Basic Technical Data
Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series Basic technical data Parameter Value Diameter measurement range, mm 100...150 Measurement error, mm ±0.05 Number of measurements per second Light source red semiconductor laser, 660 nm wavelength Output power, mW <1 Laser safety class 2 (IEC60825-1) Interface Wi-Fi, USB... -
Page 5: Complete Set To Be Supplied
Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series The system operates as follows. The measuring head is placed inside the hole and sequentially moves to the required control positions by a special movement module or robot. Laser sensors measure the distance to the inner surface. The software calculates the inner diameter. Overall and mounting dimensions, as well as the main components of the system are shown in Figure 2. -
Page 6: Overall Demands For Mounting
Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series Figure 3. The main components of the system Designations: 1 - laser head; 2 - calibration ring; 3 - Wi-Fi module; 4 - data cable; 5 - charger. Overall demands for mounting The system is positioned so that the object under control has to be placed within the working range of the system. -
Page 7: Installation And Connection
Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series 10.1.2. Installation and connection · Remove cover 3 from connector 2 (see Figure 2) and connect the charger to the laser module. · Charge the laser module for 6 hours. · Connect the Wi-Fi module to the PC via the USB port of the computer. ·... -
Page 8: Rf040 Test Program
Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series Step Description Call connect() to connect to the system. Call switchSensor(true) to switch on the system. Call calibrate() to run the calibration, or getCalibratedMeasures() to get calibration data. Call getMeasures(result_array) to run the measurement process. Call switchSensor(off) to switch off the system - optional. -
Page 9: Measurement
Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series 11.4.2. Measurement When the system is calibrated, you can start the measurement process. To start the measurement process, press the Enter key. The program will display the calculated values: Warranty policy Warranty assurance for the Multisensor Inner Diameter Measurement System RF040-100/150-Wi-Fi –... - Page 10 Multisensor Inner Diameter Measurement System. RF040-100/150-Wi-Fi Series Distributors AUSTRALIA BELGIUM BOSNIA AND HERZEGOVINA Applied Measurement Althen Sensors & Controls Australia Pty Ltd ASCO RAIL sp. z o.o. RAILWAY INSTRUMENTS ONLY Verrijn Stuartlaan 40, 2288 EL, EXCLUSIVE REPRESENTATIVE Rijswijk, Leidschendam Thornton Plaza, Unit 5, FOR RAILWAY EQUIPMENT The Netherlands 27 Thornton Crescent, Mitcham...
