Summary of Contents for Riftek IMR-L Series
-
Page 2: Table Of Contents
11.3. Calibration of the sensor zero ................7 12. Charging of built-in accumulator battery ..............8 13. Warranty policy ......................8 14. Distributors ........................ 8 15. Annex 1. RIFTEK measurement instruments for railway transport ......10 IMR-L [Revision 1.0] 1th October 2012... -
Page 3: Safety Precautions And Measurement Conditions

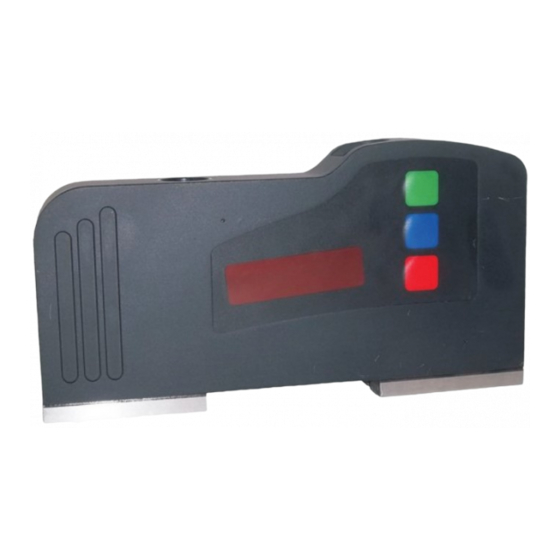

Back-to-back distance measuring gauge, IMR-L Safety precautions and measurement conditions • The metering accuracy depends greatly on the wheel surface quality. There- fore it is necessary to carry out the check and presorting of the wheel surface roughness and flaws before measuring the diameter. •... -
Page 4: Basic Data And Performance Characteristics
Back-to-back distance measuring gauge, IMR-L Basic data and performance characteristics Name of parameter Value Measurement range, mm 1300…1500 or on request Measurement error, mm ±0,3 Indication discreteness 0.1mm, 0.01mm * or 0.01 inch Display build-in, LED Operating temperature, -5…+40 Weigh, kg Dimensions figure 1 Power supply... -
Page 5: Operation Principle
Back-to-back distance measuring gauge, IMR-L Operation principle The method of back-to-back distance measurement is based on the derect measurement the distance by laser triangulation sensor in-built onto the gauge. Working with the gauge 9.1. Gauge turn-on Press button to turn on the power. The display shows “ErrP” message if the ac- cumulator battery voltage became lower then the control level. -
Page 6: Indication Parameters Setup
Back-to-back distance measuring gauge, IMR-L 10. Indication parameters setup 10.1. Image brightness set-up To change the display brightness it is necessary to: • turn the power on (press button); • press Blue button and keep it pressed for more than three seconds; •... -
Page 7: Get Into Operational Modes
Back-to-back distance measuring gauge, IMR-L Figure 2 * - the length of calibration tool is checked with accuracy of 0,01 mm. 11.2. Get into operational modes • To get into the operational modes it is necessary to turn-off the device (press button more then 3 seconds). -
Page 8: Charging Of Built-In Accumulator Battery
85-250V and to a battery compartment on the top panel of the gauge. The period of charging is 15 hours. 13. Warranty policy Warranty assurance for the Back-to-back measurement gauge IMR-L Series - 24 months from the date of putting in operation; warranty shelf-life - 12 months. 14. Distributors... - Page 9 Back-to-back distance measuring gauge, IMR-L ITALY FINLAND LITHUANIA FAE s.r.l. TERÄSPYÖRÄ-STEELWHEEL OY JSC "Comexim" RAILWAY INSTRUMENTS ONLY Via Tertulliano, 41 Serbentu, 222, LT-5419 Juvan teollisuuskatu 28 20137 Milano, Italy Siauliai, Lithuania Tel: +39-02-55187133 FI-02920 ESPOO, Finland Tel/Fax:+370 41553487 Tel: +358 400 422 900 Fax: +39-02-55187399 comexim@siauliai.aiva.lt Fax: +358 9 2511 5510...
-
Page 10: Annex 1. Riftek Measurement Instruments For Railway Transport
Fax: 01327 353564 Fax: +1 (518) 449-5567 www.ixthus.co.uk railway_marketing@iem.net info@ixthus.co.uk www.iem.net 15. Annex 1. RIFTEK measurement instruments for railway transport Laser wheel profilometer. IKP Series A laser profilometer is designed for the measuring of: wheel flange height; ... - Page 11 Back-to-back distance measuring gauge, IMR-L Wheel diameter measuring gauge. IDK Series Electronic gauge is designed for measuring wheel roll- ing circle diameter of railway, metro and tram wheel sets. Measurements are made directly on rolling stock with- out wheel set roll-out. Disc brakes profile gauge, IKD Series Laser disc brakes profilometer IKD Series is designed for disc brakes profile measuring.
