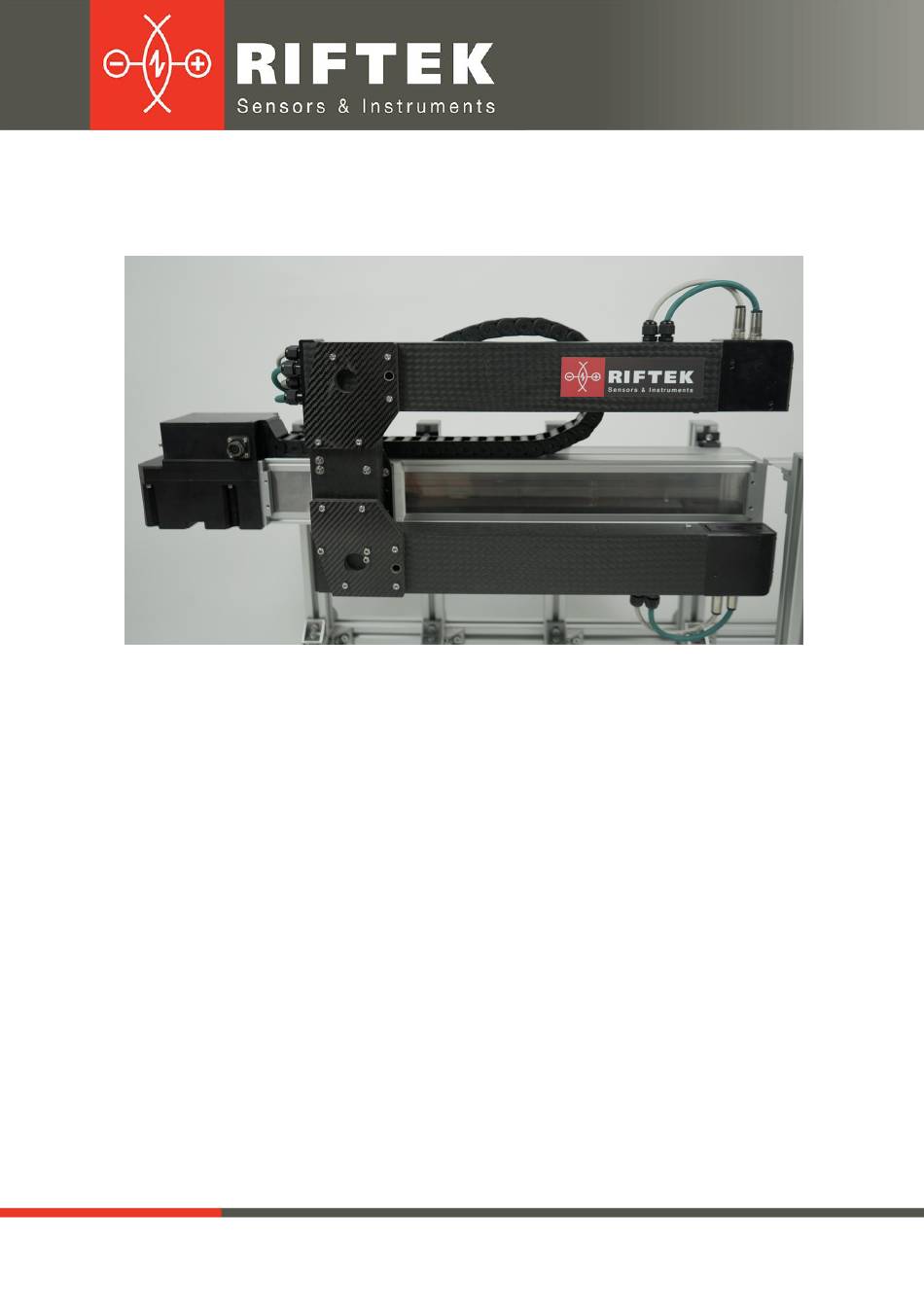

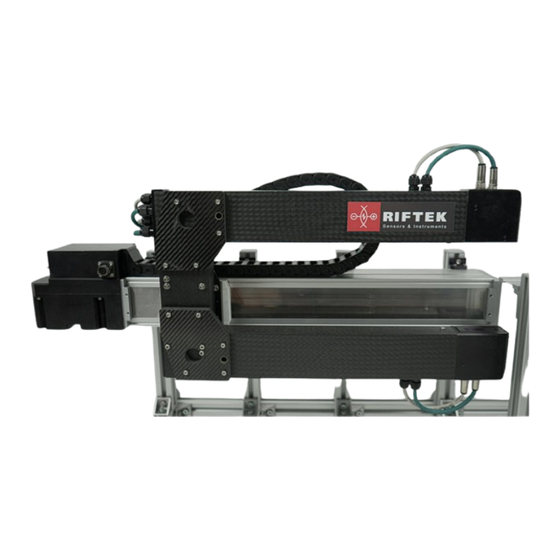

- Page 1 THICKNESS MEASUREMENT SYSTEM RF160.20 Series User's manual www.riftek.com info@riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Thickness Measurement System. RF160.20 Series Contents Safety precautions .............................3 CE сompliance .............................3 Laser safety .............................3 General information .............................3 Structure and operating principle .............................4 5.1............................4 Laser sensors 5.2............................5 Control cabinet and panel computer Basic technical data .............................6 Example of item designation when ordering .............................6... -
Page 3: Safety Precautions
Thickness Measurement System. RF160.20 Series Safety precautions · Use supply voltage and interfaces indicated in the system specifications. · In connection/disconnection of cables, the system power must be switched off. · Do not use the system in locations close to powerful light sources. -
Page 4: Structure And Operating Principle
Thickness Measurement System. RF160.20 Series Structure and operating principle The operation of the system is based on continuous scanning of the sheet surfaces by laser sensors. The system contains two laser triangulation sensors (2) mounted on the C-frame (3). The C-frame is installed on the carriage of the linear motion module (4). The system also contains a calibration plate (6). -
Page 5: Control Cabinet And Panel Computer
Thickness Measurement System. RF160.20 Series 5.2. Control cabinet and panel computer The control cabinet contains a power supply, a motor driver for the linear motion system, and an Ethernet switch. The industrial panel computer is designed to receive information from sensors, analyze and display measurement results. -
Page 6: Basic Technical Data
Thickness Measurement System. RF160.20 Series Panel computer connectors: Figure 3. Panel computer connectors Designations: 1 – Display power cable. 2 – Data cable for connection to COM1 port. 3 – Ethernet cable. Basic technical data Parameter Value Thickness measurement range, mm... -
Page 7: Service Program
Thickness Measurement System. RF160.20 Series Service program After powering on the panel computer, the main program window appears: Buttons assignment: Button Assignment Settings Open the "Settings" window. Measurement Open the "Thickness measurement" window. Calibration Calibrate the system. Database Browse the database. -
Page 8: Device Settings
Thickness Measurement System. RF160.20 Series 8.1.1. Device settings 8.1.1.1. Language To change the program language, tap Language, select the language support file, and tap Select. 8.1.1.2. Password To change a password, tap Password. Then enter a new password, confirm it, and tap Save. -
Page 9: Parameters
Thickness Measurement System. RF160.20 Series Tap "Yes" to save the new password, or tap "No" to cancel the action. 8.1.2. Parameters 8.1.2.1. Settings ид вкл дки Configuration: обл сти н строек Sensor пользов тель может ук з ть: · порт для подключения д тчиков. - Page 10 Thickness Measurement System. RF160.20 Series There are two measurement modes: Thickness and Distance. For each sensor, it is necessary to enter the serial number and address. A window for entering the serial number will appear when the cursor is placed in the Serial number field.
-
Page 11: Measurement Scheme
Thickness Measurement System. RF160.20 Series Parameter Description Averaging time The time for which the measurement results will be output/saved (for example, every 0.1 s). Number of chart points The number of measured points displayed on the graph. Reference value The reference value used when calibrating the system. - Page 12 Thickness Measurement System. RF160.20 Series An example of adding the measurement scheme with two control points. In the system, the control point means the following: the entire width of the sheet is divided into equal zones, the thickness of the material at the control point is defined as the average thickness over the entire zone.
-
Page 13: Operator
Thickness Measurement System. RF160.20 Series 8.1.2.5. Operator The Operator tab: In this tab, the user can enter the operator's data. Subsequently, when saving the measurement results to the database, the data of the selected operator will be written to the database. - Page 14 Thickness Measurement System. RF160.20 Series The Measurement window: This window displays: · Name of the selected set of parameters (to the right of the window name). · Current measured thickness (green or red). · Sensor readings (Sensor1, Sensor2). · Nominal thickness (Nominal).
-
Page 15: Calibration
Thickness Measurement System. RF160.20 Series To cancel the data output at the control point, clear the corresponding Thickness checkbox. To stop the measurement process, tap the Stop button. 8.3. Calibration The thickness of the product is controlled within the working range of the sensor (sensors). - Page 16 Thickness Measurement System. RF160.20 Series By default, the current measurement scheme is selected for calibration. You can select any other scheme from the Scheme drop-down list. To calibrate the system, it is necessary to place the sensors in the calibration position.
-
Page 17: Database
Thickness Measurement System. RF160.20 Series 8.4. Database During the system operation, the thickness values are written to the database (provided that the Save data option is selected, see par. 8.2). To view the database, tap the Database button in the main menu. The Database window will appear. -
Page 18: Operating The System
Thickness Measurement System. RF160.20 Series To delete all measurements, select the All checkbox and then tap the Delete button. Data can be exported to CSV and XLS formats - tap the Export button and select the required format. Operating the system Follow these steps: ·... - Page 19 Thickness Measurement System. RF160.20 Series · Connect the power cable to the power connector of the panel computer. · Connect the data cable to the COM1 connector of the panel computer. · Connect the Ethernet cable to the LAN 1RJ-45 connector of the panel computer.
-
Page 20: Technical Support
Technical assistance related to incorrect work of the system and to problems with a service program is free. Requests for technical assistance should be directed to support@riftek.com. Warranty policy Warranty assurance for the Thickness Measurement System – 24 months from the date of putting in operation;... - Page 21 Thickness Measurement System. RF160.20 Series Distributors AUSTRALIA BELGIUM BOSNIA AND HERZEGOVINA Applied Measurement Althen Sensors & Controls Australia Pty Ltd ASCO RAIL sp. z o.o. RAILWAY INSTRUMENTS ONLY Verrijn Stuartlaan 40, 2288 EL, EXCLUSIVE REPRESENTATIVE Rijswijk, Leidschendam Thornton Plaza, Unit 5,...
- Page 22 Thickness Measurement System. RF160.20 Series CHINA CROATIA CZECH REPUBLIC Zhenshangyou Technologies ASCO RAIL sp. z o.o. ASCO RAIL sp. z o.o. EXCLUSIVE REPRESENTATIVE EXCLUSIVE REPRESENTATIVE Co., Ltd FOR RAILWAY EQUIPMENT FOR RAILWAY EQUIPMENT Rm 2205-2210, Zhongyou Hotel 1110 Nanshan Road, Nanshan ul.
- Page 23 Thickness Measurement System. RF160.20 Series ISRAEL ITALY JAPAN Nisso Dekalo Import FAE s.r.l. Tokyo Instruments, Inc. Via Tertulliano, 41 Export LTD 6-18-14 Nishikasai, Edogawa-ku, 20137 Milano, Italy 1 David Hamelech Street Tokyo, 134-0088 Japan Tel: +39 02 55187133 Herzlia 46661 Israel...
- Page 24 Thickness Measurement System. RF160.20 Series SLOVAKIA SLOVENIA SOUTH KOREA ASCO RAIL sp. z o.o. ASCO RAIL sp. z o.o. BS Holdings EXCLUSIVE REPRESENTATIVE EXCLUSIVE REPRESENTATIVE B-201,Wonpogongwon 1ro, FOR RAILWAY EQUIPMENT FOR RAILWAY EQUIPMENT 59 Danwon-gu, Ansan-si, ul. Wielowiejska 53, 44-120 ul.
- Page 25 Thickness Measurement System. RF160.20 Series USA, CANADA, MEXICO International Electronic Machines Corporation RAILWAY INSTRUMENTS ONLY 850 River Street, Troy, New York, USA Tel: +1 518 268-1636 Fax: +1 518 268-1639 marketing@iem.net www.iem.net RF160.20 [Revision 1.0.0] 14.06.2023...
