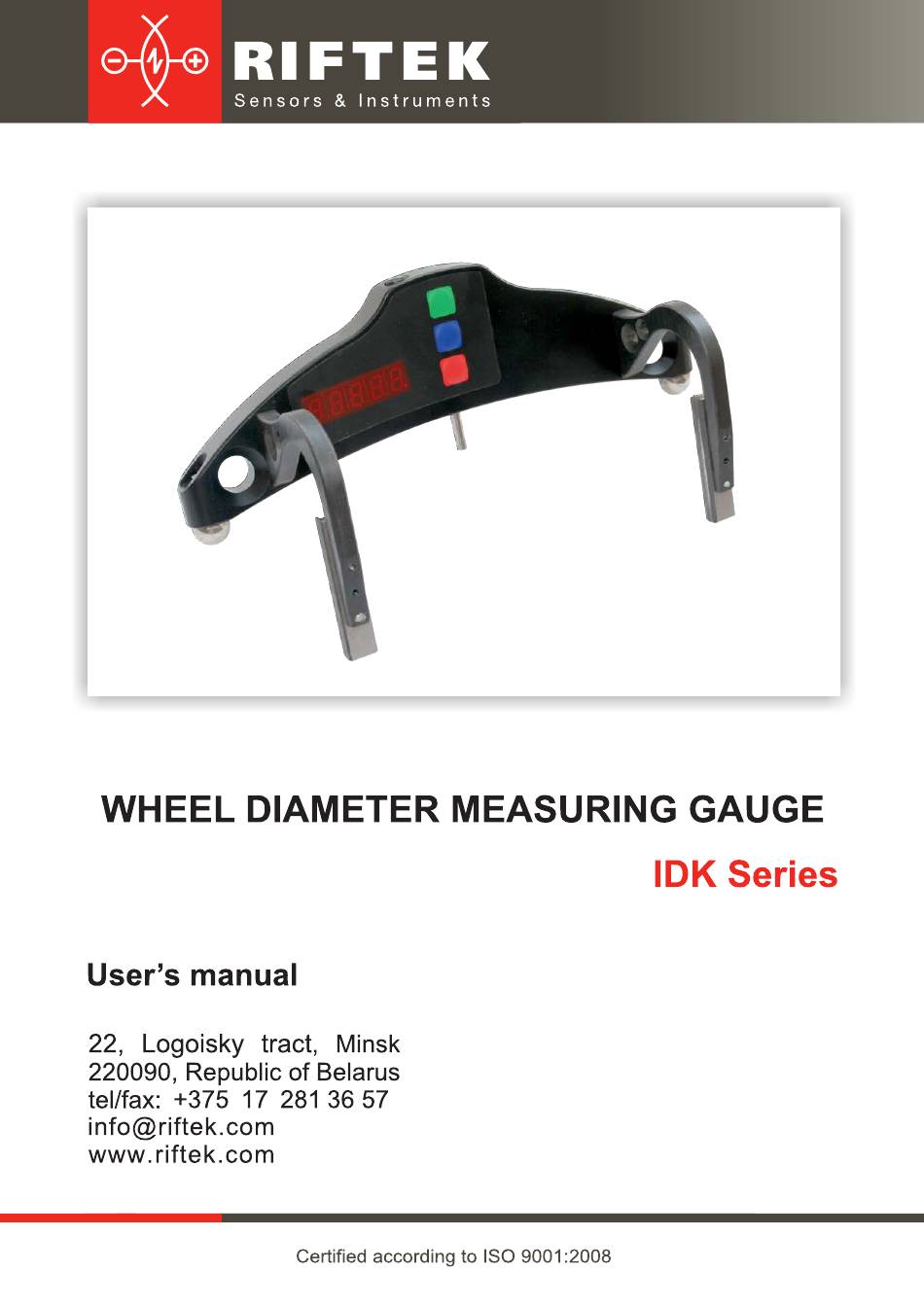

Riftek IDK Series User Manual

Wheel diameter measuring gauge
Hide thumbs Also See for IDK Series:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDK Series and is the answer not in the manual?

Questions and answers

Related Manuals for Riftek IDK Series

Summary of Contents for Riftek IDK Series

  • Page 2: Table Of Contents

    11.4. Calibration of the device base ..................10 12. Charging of built-in accumulator battery ................11 13. Warranty policy ........................11 14. Distributors ......................... 11 15. Annex 1. RIFTEK’s measurement devices for railway transport ......... 14 IDK [Revision 2.2] 4th September 2017...

  • Page 3: Safety Precautions And Measurement Conditions

    Wheel diameter measuring gauge, IDK Safety precautions and measurement conditions  The metering accuracy depends greatly on the wheel surface quality. There- fore it is necessary to carry out the check and presorting of the wheel surface roughness and flaws before measuring the diameter. ...

  • Page 4: Example Of Item Designation When Ordering

    250 mm; bottom of measuring range – 850 mm; up of measuring range – 1260 mm; po- sition of indication – А. Fig.А Fig.В Complete set to be supplied Name Quantity Weight, kg Wheel diameter measuring gauge IDK series 1 piece Charger 1 piece Manual 1 piece Case 1 piece...

  • Page 5: Operation Principle

    Wheel diameter measuring gauge, IDK Figure 1 Figure 1.1 Operation principle The measurement of the diameter is performed according to the “three points” technique, without the complete wheel coverage. The measurement method is based on the diameter calculation by the known length of the segment chord (the distance be- tween the ball bearings centers), which is obtained at placing the gauge onto the wheel.

  • Page 6: Single Measurement

    Wheel diameter measuring gauge, IDK 9.2. Single measurement To perform measurement, it is necessary to:  turn the power on (press button). The display shows “- - - - -”;  place the gauge onto the wheel;  make sure the ball supports are tight against the roll surface and side sup- ports are adjacent to the edge of the wheel;...

  • Page 7: Gauge Turn-Out

    Wheel diameter measuring gauge, IDK  Press button to reset averaging result at switching to another wheel. For viewing the result of measurement with indication discreteness 0.01mm (it is accessible only in a mode of direct indication) it is necessary to press Blue button, thus displayed result will be shifted to the left on one digit.

  • Page 8: Image Brightness Set-Up

    Wheel diameter measuring gauge, IDK - the separation point is indicated at the top side of the screen in the reverse indica- tion regime. 10.2. Image brightness set-up To change the display brightness it is necessary to:  turn the power on (press button).;...

  • Page 9: Service Operation Modes

    Wheel diameter measuring gauge, IDK 11. Service operation modes This section contains the description of the modes for the check of device effi- ciency and calibration. As erroneous actions in this mode can lead to invalid measure- ment results, only specially trained personnel should perform such operations. 11.1.

  • Page 10: Calibration Of The Device Base

    Wheel diameter measuring gauge, IDK RF510.11.000 Figure 2  If readings of the sensor are sufficiently stable, press the Blue button. Sensor zero position is calculated in the device coordinate system, and prompt ap- pears to save calibration results. Press the Green button to confirm or cancel saving of the results, respectively.

  • Page 11: Charging Of Built-In Accumulator Battery

    RF510.11.XXXX Figure 3 NOTE: Video-help for calibration procedure you can find here www.riftek.com/resource/video/idk_calibr.avi 12. Charging of built-in accumulator battery To charge accumulator battery it is necessary to connect charging devise to the power grid 85-250V and to a battery compartment on the top panel of the gauge.
  • Page 12 Wheel diameter measuring gauge, IDK BULGARIA, HUNGARY BRAZIL CHILE CAPI Controle e Automação Ltda RMT Ltd. Verne SpA Rua Itororó, 121, CEP 13466-240 R Zahradni 224 Apoquindo 2818, oficina 31, 739 21 Paskov, Czech Republic Americana-SP, Brazil Las Condes, Santiago, Chile Tel: +420 558640211 Tel: +55 19 36047068 Tel: +56 2 228858633...
  • Page 13 Wheel diameter measuring gauge, IDK INDONESIA IRAN ISRAEL PT. DHAYA BASWARA SANI- Novin Industrial Development Nisso Dekalo YASA Grp. Import Export LTD Botanic Junction Blok H-9 NO. 7 Tel: +98 21 44022093-6 1 David Hamelech Street Mega Kebon Jeruk, Joglo Fax: +98 21 43858794 Herzlia 46661 Israel Jakarta 11640, Indonesia...

  • Page 14: Annex 1. Riftek's Measurement Devices For Railway Transport

    Fax: +1 518 268-1639 sales@acuitylaser.com info@ixthus.co.uk railway_marketing@iem.net www.acuitylaser.com www.ixthus.co.uk www.iem.net 15. Annex 1. RIFTEK’s measurement devices for railway transport Laser wheel profilometer. IKP Series A laser profilometer is designed for the measuring of: wheel flange height; wheel flange thickness; wheel flange slope;...

  • Page 15: Idk [Revision 2.2] 4Th September

    Wheel diameter measuring gauge, IDK Wheel diameter measuring gauge. IDK Series Electronic gauge is designed for measuring wheel rolling cir- cle diameter of railway, metro and tram wheel sets. Measurements are made directly on rolling stock without wheel set roll-out.
