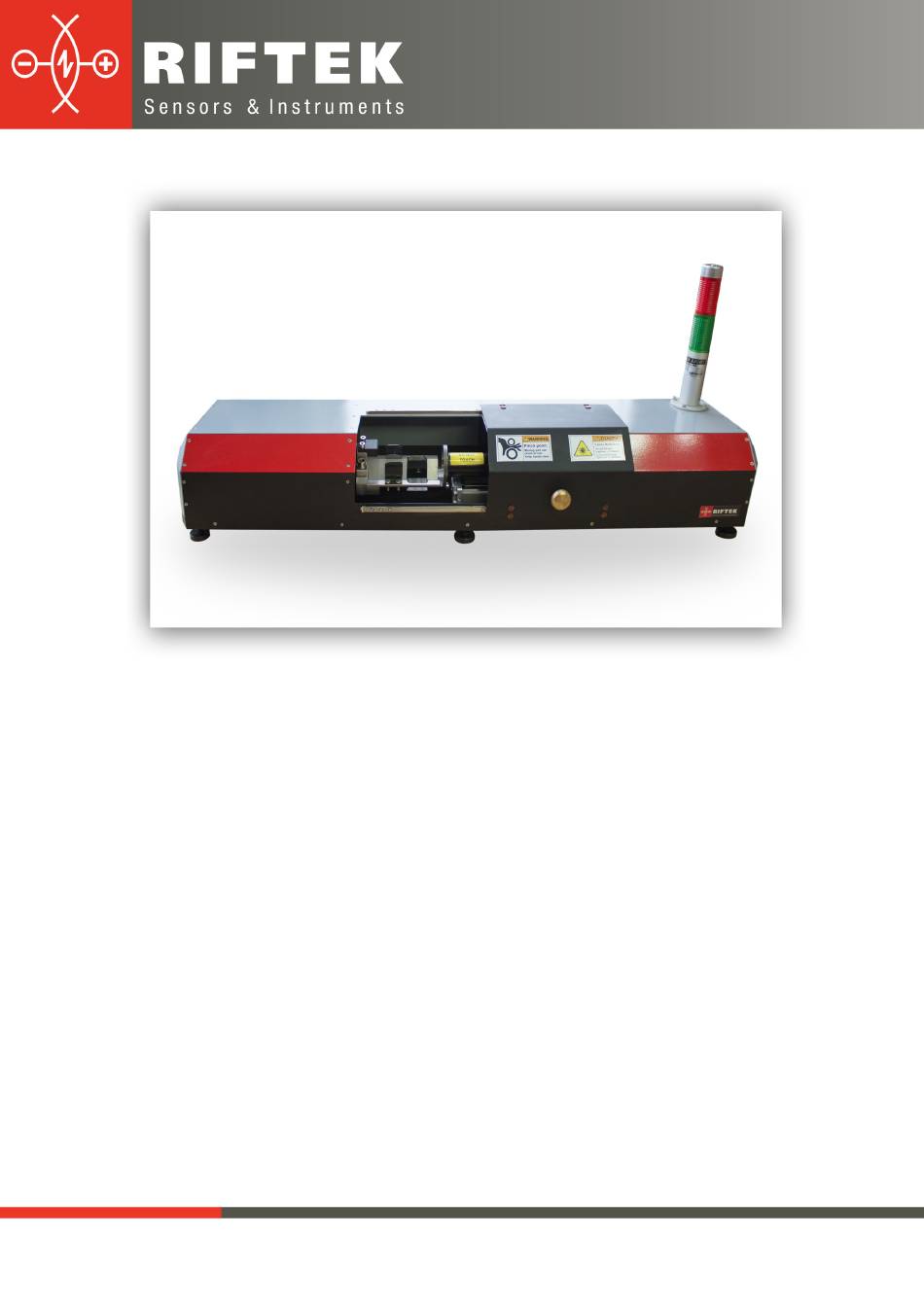

- Page 1 PIPE INNER DIAMETER MEASUREMENT MACHINE RF096-32/42-80 Series User's Manual 22, Logoisky tract, Minsk 220090, Republic of Belarus tel/fax: +375 17 281 36 57 info@riftek.com www.riftek.com Certified according to ISO 9001:2008...
-
Page 2: Table Of Contents
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series Contents Safety precautions .............................3 CE сompliance .............................3 Laser safety .............................3 General information .............................3 Basic technical data .............................4 Example of item designation when ordering .............................4 Structure and operational principle .............................4 Connection .............................5 Network setting .............................5... -
Page 3: Safety Precautions
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series Safety precautions · Use supply voltage and interfaces indicated in the machine specifications. · In connection/disconnection of cables, the machine power must be switched off. · Do not use the machine in locations close to powerful light sources. -
Page 4: Basic Technical Data
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series Basic technical data Parameter Value Diameter measurement range, mm 32...42 Diameter measurement accuracy, µm ±5 Depth of measured hole, mm Linear translation accuracy, µm ±20 Quantity of measured sections not limited, programmable Light source... -
Page 5: Connection
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series where: 1 - measurement module, 2 - controller with the power supply, 3 - foot switch, 4 - personal computer with a service program. The measurement module structural design is illustrated in Figure 2. -
Page 6: Service Program
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series Service program In order to work with the machine, you need to install the RFClearView software, and to activate the license. 10.1. System requirements The main requirements for using RFClearView: · Operating system Windows 7 and later. -
Page 7: License Activation 10.4
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series 10.3. License activation In order to activate the license, click in the upper right corner of the program window, go to the About tab, and click the link with the license type name. The activation... -
Page 8: Calibration
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series The main window: The main window description: TCP/IP address of the machine. Note: the machine and your PC must be in the one Address subnet. Pipe Pipe type selection. Write log Write log option. -
Page 9: Measurement Procedure
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series You can use the default calibration parameters or set them manually (if necessary). If you have changed the parameter value and did not click Save yet, you can reset this change by clicking the Reset button. -
Page 10: Templates Settings
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series Pass - measurement results are within the tolerances. Fail - measurement results are beyond the tolerances. The final result is shown below the tables (Result). Take note that the final result can be Pass or Fail depending on the following:... - Page 11 Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series Click Create pipe description, enter the name into the Pipe name field, and click When the pipe description is created, it is necessary to add the measurement positions and to set tolerances for each of them.
- Page 12 Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series Next, it is necessary to set parameters for every position: · Measurement position: the Position field (mm) · Tolerances: Minimum, Maximum and Average diameter (mm) It is necessary to set tolerances (-/+) and a nominal value (the Nominal field) for the selected dia...
-
Page 13: Log
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series When you have set all parameters and saved the pipe description, click Back to return to the main window in order to start the measurement. 10.4.5. To save results to the log files (CSV), select the Write log option. To open the log folder, use the special button: You can select the Write log option only when the device is not connected in the program. -
Page 14: Distributors
Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series Distributors AUSTRALIA BENELUX BULGARIA, HUNGARY Applied Measurement Altheris B.V. RMT Ltd. Australia Pty Ltd Vlietweg 17a R Zahradni 224 2266KA Leidschendam 739 21 Paskov, Czech Republic RAILWAY INSTRUMENTS ONLY The Netherlands Tel: +420 558640211... - Page 15 Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series GERMANY GERMANY GERMANY BIP-Industrietechnik GmbH Finger GmbH & Co. KG Hylewicz CNC-Technik RAILWAY INSTRUMENTS ONLY OPTICAL MICROMETERS ONLY SHTRIKH-2 ONLY Am Elisabethhof 22, Sapelloh 172, Siemensstrasse 13-15, D-14772 Brandenburg 31606 Warmsen, Germany 47608 Geldern, Germany...
- Page 16 Pipe Inner Diameter Measurement Machine, RF096-32/42-80 Series RUSSIA RUSSIA SERBIA, SLOVAKIA Sensorika-M LLC Diesel-test-Komplekt LLC RMT Ltd. Dmitrovskoye shosse 64-4 620030, Karjernaya St, 16 Zahradni 224 127474, Moscow, Russia Ekaterinburg, Russia 739 21 Paskov, Czech Republic Tel: +7 499 487 0363...
