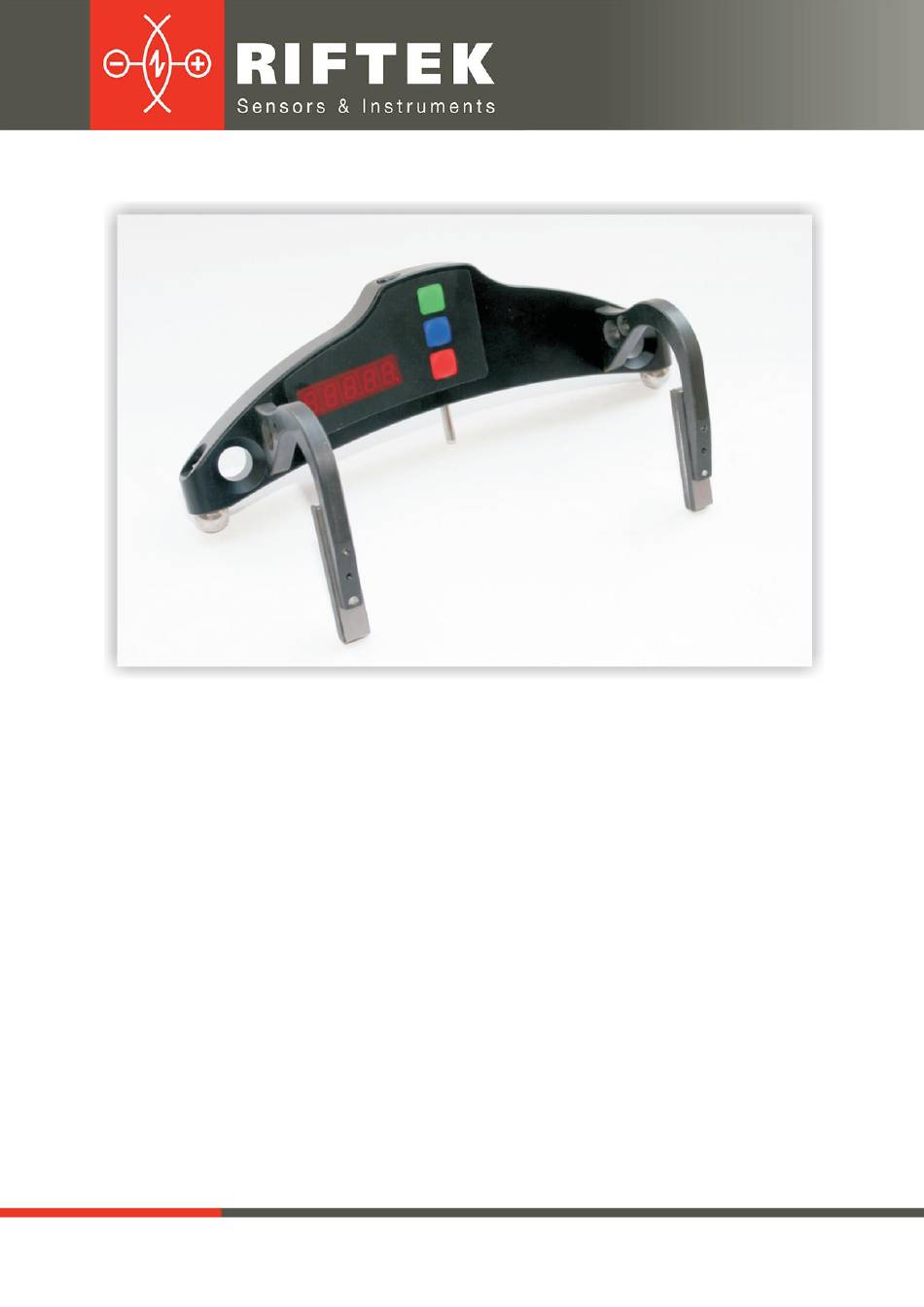

- Page 1 WHEEL DIAMETER MEASURING GAUGE IDK Series User's manual www.riftek.com info@riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Wheel Diameter Measuring Gauge. IDK Series Contents Safety precautions and measurement conditions .............................3 CE сompliance .............................3 General information .............................3 Basic technical data .............................3 Example of item designation when ordering .............................4 Complete set to be supplied .............................4 Design .............................4 Operation principle .............................5... -
Page 3: Safety Precautions And Measurement Conditions
Wheel Diameter Measuring Gauge. IDK Series Safety precautions and measurement conditions · The metering accuracy depends greatly on the wheel surface quality. Therefore it is necessary to carry out the check and presorting of the wheel surface roughness and flaws before measuring the diameter. -
Page 4: Example Of Item Designation When Ordering
Wheel Diameter Measuring Gauge. IDK Series Example of item designation when ordering IDK-S/B-MIN/MAX-X Symbol Description Measurement position, mm. Base, mm. Lower limit of the measurement range, mm. Upper limit of the measurement range, mm. Indication position. - Indication is on the side of side supports (Figure ), –... -
Page 5: Operation Principle
Wheel Diameter Measuring Gauge. IDK Series Figure 1 Figure 1.1 Operation principle The measurement method is based on the diameter calculation from a known length of the segment chord (the distance between the ball bearings centers), which is obtained at placing the gauge onto the wheel and measured by means of the displacement converter. -
Page 6: Single Measurement
Wheel Diameter Measuring Gauge. IDK Series 9.2. Single measurement To carry out measurements, it is necessary to: · Turn on the power (press the button). The display shows "- - - - -". · Place the gauge onto the wheel. -
Page 7: Turning Off The Gauge
Wheel Diameter Measuring Gauge. IDK Series The total number of measurements averaged in this way can be up to 9999. To reset the averaging result, press the button. For viewing the measurement result with a discreteness of 0.01 mm (only... -
Page 8: Image Brightness
Wheel Diameter Measuring Gauge. IDK Series The image rotation function allows the operator to view the result regardless of the direction of installation of the gauge. NOTES: - Indication discreteness of 0.01 mm is only available in direct indication mode. -
Page 9: Millimeters-Inches Display
Wheel Diameter Measuring Gauge. IDK Series 10.3. Millimeters-Inches display To change the mode, it is necessary to: · Turn on the gauge by pressing the button. · Press the Blue button and keep it pressed for more than 3 seconds. -
Page 10: Sensor Zero Calibration
Wheel Diameter Measuring Gauge. IDK Series 11.3. Sensor zero calibration · In zero calibration mode, the display shows the Johansson gauge value used for calibration in increments of 0.5 µm. · If editing of the Johansson gauge value is not required, go to the next step. To... -
Page 11: Device Base Calibration
Wheel Diameter Measuring Gauge. IDK Series 11.4. Device base calibration · In device base calibration mode, the display shows the diameter value of the reference used for calibration. · If editing of the diameter value is not required, go to the next step. To edit the... -
Page 12: Charging Accumulator Batteries
220 V and to the battery compartment on the top panel of the gauge. The time of charging is 15 hours. Warranty policy Warranty assurance for the Wheel Diameter Measuring Gauge IDK Series – 18 months from the date of putting in operation; warranty shelf-life – 12 months. Distributors AUSTRALIA... - Page 13 Wheel Diameter Measuring Gauge. IDK Series CHINA CHINA CHINA Beijing Gemston Mechanical Xi'an Win-Success Micron-Metrology co., Ltd No.2, Kecheng Rd., Industrial Park & Electrical Equipment Co., Automation Technology District, Suzhou, Co.,Ltd Jiangsu Province., China RAILWAY INSTRUMENTS ONLY Room 3-1-1039, Iduhui Building, Tel: 0512 65589760 No.11 Tangyan South Road...
- Page 14 Wheel Diameter Measuring Gauge. IDK Series INDIA INDIA INDONESIA Influx Big Data Solutions Pvt Paragon Instrumentation PT. DHAYA BASWARA Engineers Pvt. Ltd. SANIYASA No:2, Krishvi, Ground Floor, Botanic Junction Blok H-9 NO. 7 RAILWAY INSTRUMENTS ONLY Old Airport Road, Domlur,...
- Page 15 Wheel Diameter Measuring Gauge. IDK Series POLAND PORTUGAL SERBIA RIFTEK EUROPE sp. z o.o. Campal Inovacoes ASCO RAIL sp. z o.o. ul. Domaniewska 17/19, 02-672 EXCLUSIVE REPRESENTATIVE Ferroviarias Lda. Warsaw, Poland FOR RAILWAY EQUIPMENT Lagoas Park, Edifí cio 7, 1° Piso info@riftek.com...
-
Page 16: Riftek's Measurement Instruments For Railway Transport
Wheel Diameter Measuring Gauge. IDK Series UNITED KINGDOM, USA, CANADA, MEXICO IRELAND Althen Sensors & Controls Acuity Products of Schmitt 2531 Bradley St., Oceanside, CA, Industries, Inc. Althen UK 92056, USA 2765 NW Nicolai Street Northamptonshire Tel: 858 633 3572... - Page 17 Wheel Diameter Measuring Gauge. IDK Series Wheel diameter measuring gauge, IDK Series Electronic gauge is designed to measure the wheel rolling circle diameter of railway, metro and tram wheelsets. Measurements are made directly on the rolling stock without rolling out the wheelset.
- Page 18 Wheel Diameter Measuring Gauge. IDK Series Real-time wheels geometry measurement system 3DWheel The system is designed for non-contact automatic measurement of geometrical parameters of railway wheels and uses a combination of 2D laser scanners mounted wayside in the track area.
