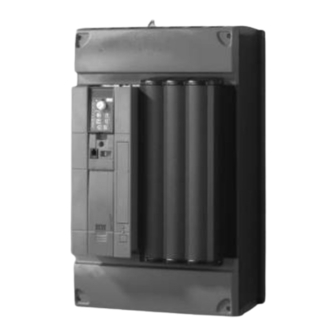

Contents 1 Important Notes....................4 Structure of the safety notes ..............4 Right to claim under warranty ..............4 Exclusion of liability ................... 4 2 Safety Notes ...................... 5 General information .................. 5 Target group ..................... 5 Proper use ....................5 Transportation, storage ................
You must comply with the information contained in these operating instructions to ensure safe operation of frequency inverters and to achieve the specified product char- acteristics and performance requirements. SEW-EURODRIVE assumes no liability for injury to persons or damage to equipment or property resulting from non-observance of these operating instructions.
Safety Notes General information Safety Notes The following basic safety notes are intended to avoid injury to persons and damage to property. The operator must make sure that the basic safety notes are read and observed. Make sure that persons responsible for the plant and its operation, as well as persons who work independently on the unit, have read through the operating instruc- tions carefully and understood them.
Transportation, storage 2.3.1 Safety functions Frequency inverters from SEW-EURODRIVE cannot perform any safety functions unless the inverters are subordinate to higher-level safety systems. Use higher-level safety systems to ensure protection of equipment and personnel. When using the "Safe stop" function, you must observe the following publications: ®...
Safety Notes Safe disconnection Safe disconnection The unit meets all requirements for safe disconnection of power and electronic connec- tions in accordance with EN 61800-5-1. All connected circuits must also satisfy the requirements for safe disconnection. Operation Systems with integrated frequency inverters must be equipped with additional moni- toring and protection devices, as applicable, according to the relevant safety guidelines and regulations, such as legislation governing technical equipment, accident prevention regulations, etc.
Installation FSC11B/FIO11B Installation Installation FSC11B/FIO11B Installation You can enhance the basic units with the FSC11B and FIO11B modules. FSC11B FIO11B X45 X40 H L ⊥ H L ⊥ 1 2 3 4 5 6 1 2 3 4 5 Connection/Unit FIO11B FSC11B RS-485 service interface X44...
Page 9
Installation FSC11B/FIO11B Installation Function Terminal Description Data FSC11B FIO11B Analog X40:3 GND: Reference 0 ... +10 V output potential = 2 mA 0 (4) ... 20 mA X40:4 AOV1: Voltage output Resolution 10 bit X40:5 AOI1: Current output Sampling time 5 ms Short-circuit proof, protected against external voltage up...
Page 10
Installation FSC11B/FIO11B Installation ® System bus connection MOVITRAC B (same terminals) ® ® ® MOVITRAC MOVITRAC MOVIDRIVE ON OFF X12 : DGND SC11 FSC11B FSC11B SC12 3 H L ⊥ 1 2 3 4 5 6 H L ⊥ 1 2 3 4 5 6 ®...
Page 11
Installation FSC11B/FIO11B Installation System bus connection MOVITRAC B with UOH11B UOH11B DFP21B FAULT ® MOVITRAC ADDRESS FSC11B H L ⊥ 1 2 3 4 5 6 1 2 3 4 5 6 7 Cable length • The permitted total cable length depends on the baud rate setting of the SBus (P884): –...
Page 12
Installation FSC11B/FIO11B Installation 3.1.3 Installation, RS-485 interface to FSC11B ® The RS-485 interface can be used for connecting max. 32 MOVITRAC units or ® 31 MOVITRAC units and a higher-level controller (PLC). ® RS-485 MOVITRAC B connection ® ® ® MOVITRAC MOVITRAC MOVIDRIVE...
Startup Startup with PC and MOVITOOLS® MotionStudio Startup ® Startup with PC and MOVITOOLS MotionStudio ® Start MOVITOOLS MotionStudio in the Windows start menu: Programs / SEW / MOVITOOLS MotionStudio 5.x/MotionStudio 5.x ® Press the MOVITOOLS MotionStudio [Scan] button to list all connected units in the unit tree.
Startup Parameter list Parameter list All parameters that can also be displayed and edited using the keypad are indicated as follows in the "FBG" (keypad) column: Selection in long menu Selection in short or long menu Selection using symbols on keypad Selection in the FBG motor startup If a selection is offered, the factory setting is indicated in bold.
Page 15
Startup Parameter list FBG Index Name Range / Factory setting Value after dec. startup ® Display MOVITOOLS MotionStudio 8334 Binary inputs Binary display DI00 ... DI05 Binary outputs 8349 Binary output /Fault DO01 8349 Binary output Brake released DO02 8349 Binary output Ready for operation DO03...
Page 16
Startup Parameter list FBG Index Name Range / Factory setting Value after dec. startup ® Display MOVITOOLS MotionStudio 10247.10 Setpoint 0 ... 3000 ... 6000 rpm reference speed n ref. 10416.1 Open circuit No response detection Immediate stop / fault Rapid stop / fault Rapid stop / warning 10247.11 FI1 characteristic...
Page 17
Startup Parameter list FBG Index Name Range / Factory setting Value after dec. startup ® Display MOVITOOLS MotionStudio 13_ / 14_ Speed ramps 1 / 2 130 / 140 8807 / Ramp t11 / t21 up 0.1 ... 2 ... 2000 [s] 9264 131 / 141 8808 /...
Page 18
Startup Parameter list FBG Index Name Range / Factory setting Value after dec. startup ® Display MOVITOOLS MotionStudio Motor parameters (on FBG only parameter set 1) 30_ / 31_ Limits 1 / 2 300 / 310 8515 / Start/stop speed 0 ...
Page 19
Startup Parameter list FBG Index Name Range / Factory setting Value after dec. startup ® Display MOVITOOLS MotionStudio Terminal assignment Binary inputs 8336 Binary input DI02 0: No function assignment 1: Enable / stop (factory setting DI03) 2: CW / stop 8337 Binary input DI03 3: CCW / stop (factory settingDI02)
Page 20
Startup Parameter list FBG Index Name Range / Factory setting Value after dec. startup ® Display MOVITOOLS MotionStudio 10246.3 AO1 Character- –100 % ... 0 ... +100 % istic curve x2 10246.4 AO1 Character- 0 ... 100 % istic curve y2 Control functions (on FBG only parameter set 1) Operating modes 1 / 2 700 / 701...
Page 21
Startup Parameter list FBG Index Name Range / Factory setting Value after dec. startup ® Display MOVITOOLS MotionStudio – Copy DBG Æ ® MOVITRAC – Copy MOVI- ® TRAC B Æ DBG Serial communication 8597 RS-485 address 0 ... 99 8598 RS-485 group 100 ...
Page 22
Startup Parameter list FBG Index Name Range / Factory setting Value after dec. startup ® Display MOVITOOLS MotionStudio Serial communication SBus 8937 SBus protocol 0 / MoviLink 1 / CANopen 8600 SBus address 0 ... 63 8601 SBus group 0 ... 63 address 8602 SBus timeout...
Service Fault memory Service Fault memory The inverter saves the fault message in fault memory P080. The inverter only saves a new fault after the fault message has been acknowledged. The local operating panel shows the most recent fault. Whenever double faults occur, the value stored in P080 does not correspond to the value displayed on the operating panel.
Service List of errors (F-00 ... F-97) List of errors (F-00 ... F-97) Designation Response Possible cause Measure No error Over-current Immediate • Short circuit output • Rectify the short circuit switch-off • Output switching • Switching with inhibited output with inhibit stage only •...
Page 26
Service List of errors (F-00 ... F-97) Designation Response Possible cause Measure EEPROM Stop with Error when accessing EEPROM Activate factory settings, perform reset inhibit and reset parameters. Contact SEW Service for advice if this error reoccurs. External program- Read external error signal via pro- Eliminate specific cause of error;...
Page 27
Service List of errors (F-00 ... F-97) Designation Response Possible cause Measure UL motor Stop with Motor utilization too high. • Check P345/346 I -UL monitoring protection inhibit • Reduce load • Extend ramps • Long pause times EEPROM Immediate Defective EEPROM Contact SEW Service.
Technical Data Electronics data for FSC11B communication interface Technical Data Electronics data for FSC11B communication interface Function Terminal Description Data System bus X46:1 SC11: SBus high CAN bus according to CAN specification 2.0, parts A (SBus) X46:2 SC12: SBus low and B, transmission technology according to ISO 11898, X46:3 GND: Reference potential...
Technical Data FSC11B communication module FSC11B communication module The FSC11B communication module enables communication with other units. These ® ® may include: PC, operator terminals, MOVITRAC or MOVIDRIVE Part number 1820 716 2 ® ® Functions • Communication with PLC / MOVITRAC B / MOVIDRIVE / PC •...
