Dosimass Modbus RS485
Endress+Hauser
8

Operation options

8.1

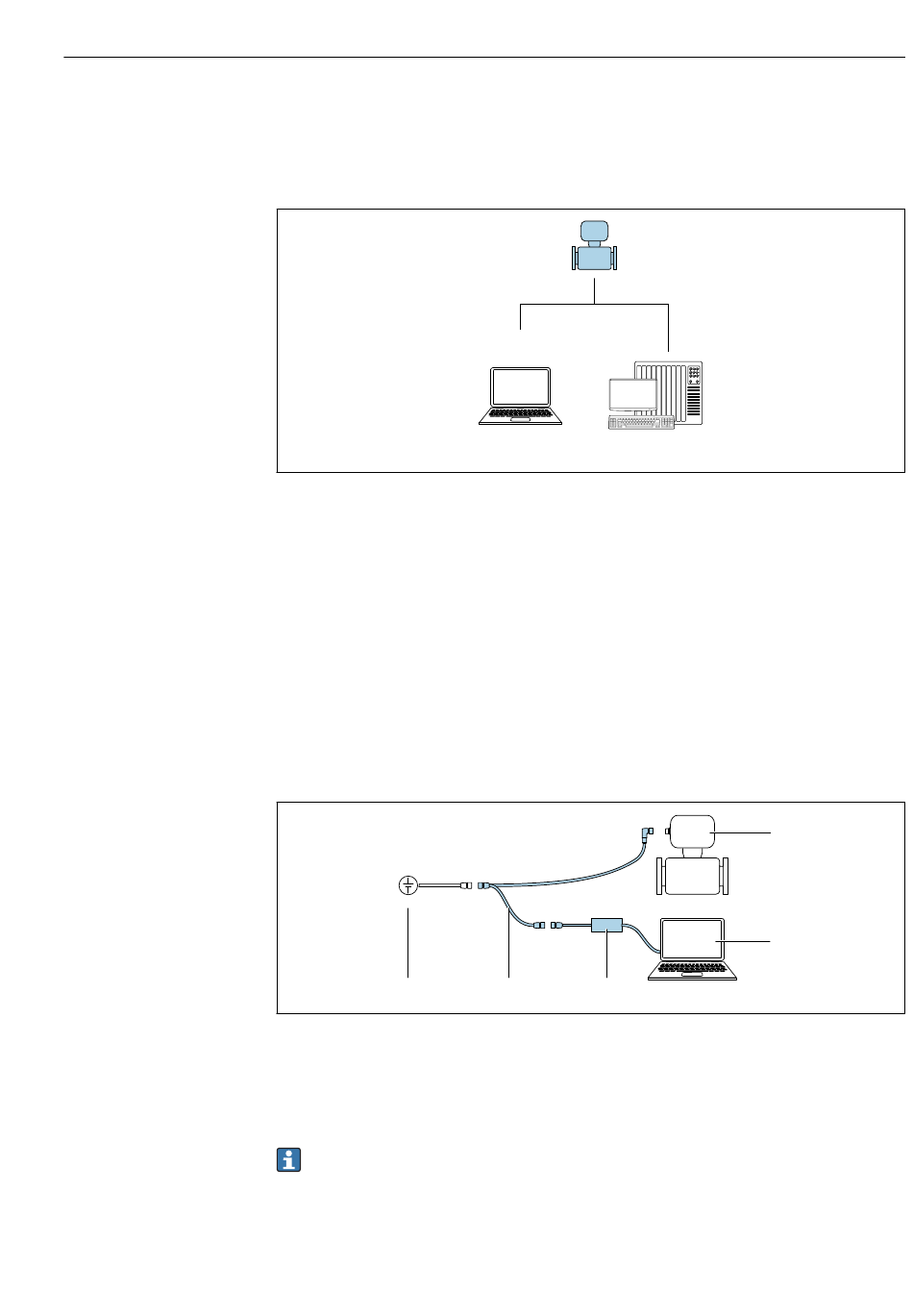

Overview of operation options

1 Computer with "FieldCare" or "DeviceCare" operating tool
2 Control system (e.g. PLC)
8.2

Access to the operating menu via the operating tool

8.2.1

Connecting the operating tool

Using service adapter and Commubox FXA291
Operation and configuration can be performed using the Endress+Hauser FieldCare or
DeviceCare service and configuration software.
The device is connected to the USB port of the computer via the service adapter and
Commubox FXA291.
+
-
1
1 Supply voltage 24 V DC
2 Service adapter
3 Commubox FXA291
4 Dosimass
5 Computer with "FieldCare" or "DeviceCare" operating tool
The service adapter, cable and Commubox FXA291 are not included in the delivery.
These components can be ordered as accessories →  55.
1 2
2 3
Operation options
A0017760
4
5
A0032567
31
