StarTech.com CABSHELFV2U-16-RACK Quick Start Manual

Vented 2-Post Shelf
Product ID
CABSHELFV2U-16-RACK
CABSHELFV2U-12-RACK
CABSHELFV1U-16-RACK
2
1

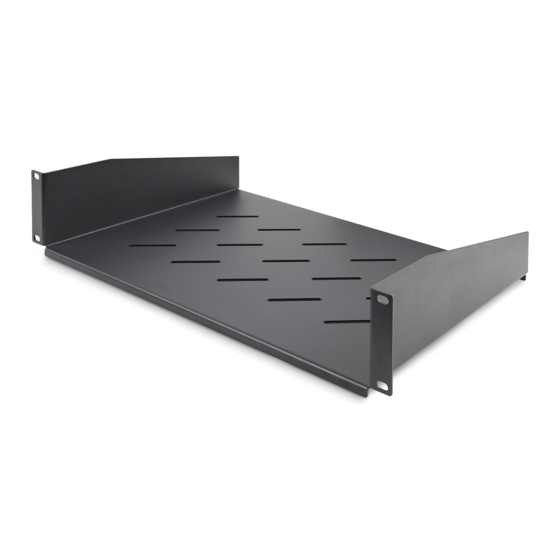

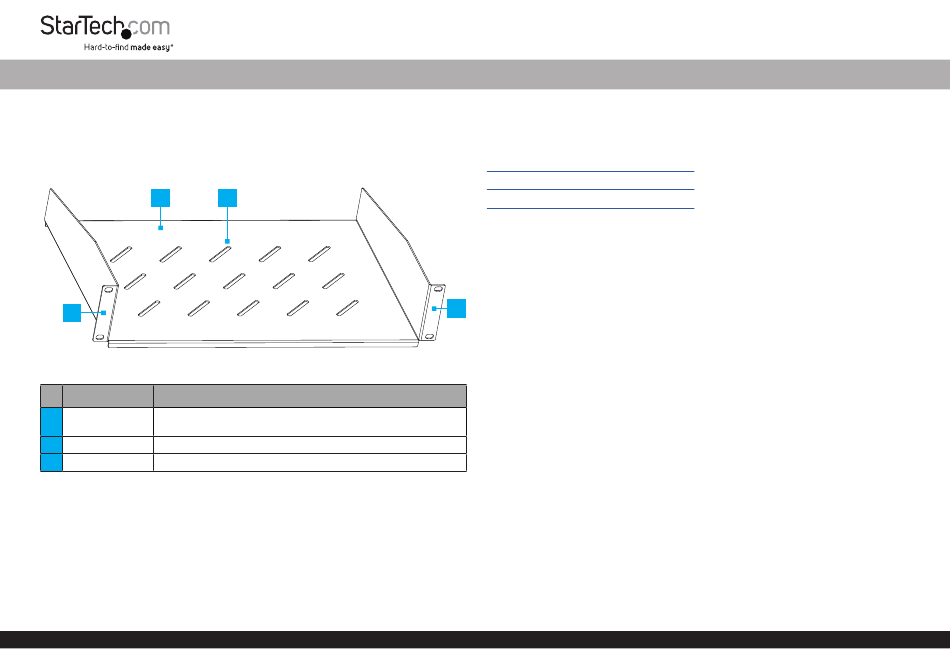

Feature
Front Mounting • Used to fasten the Shelf to the Mounting Posts of a Server
1
Brackets Rack
2 Shelf Surface • Place Server Rack Equipment
3 Ventilation Holes • Promote airflow for the Server Rack Equipment
Package Contents
• 2-Post Vented Shelf x1
• M5 Cage Nuts x 4
• M5 Screws x 4
• Quick-Start Guide x 1
For additional self-service support options and community forums, please visit: www.StarTech.com/support
3
*Product may vary from image
Function
Requirements
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/CABSHELFV2U-16-RACK
www.StarTech.com/CABSHELFV2U-12-RACK
www.StarTech.com/CABSHELFV1U-16-RACK
• Refer to the manufacturer of the Server Rack to determine the mounting hole type and
size
• Phillips head screwdriver
• Cage nut tool (Optional)
Warnings!
• Read the entire Quick-Start Guide and ensure the instructions are fully understood before
1 using this product.
• Before adding equipment to this product, ensure this product has been properly mounted.
• Never operate this product if parts are missing or damaged.
• Ensure the weight of the equipment does not exceed the weight capacity of this product. If
the weight capacity is exceeded, personal injury or damage to the equipment is possible.
• These product can support the following weight:
• CABSHELFV2U-16-RACK: 44lb / 20kg
• CABSHELFV2U-12-RACK: 25lb / 11.3 kg
• CABSHELFV1U-16-RACK: 30lb / 14kg
Installation
1. Identify a suitable location on the Server Rack to mount the Shelf. The Shelf requires
2U or 1U of Mounting Space (depending on the model).
Note: The Server Rack should have enough Mounting Depth to accommodate the Shelf.
2. Install the M5 Cage Nuts (x 4) into the Mounting Holes (x 4) on the Front Posts of the
Server Rack. If available, use a Cage Nut Tool or a preferred installation method to
install the Cage Nuts.
Note: If the Server Rack has M5 threaded holes, skip this step. The M5 Screws can be
installed without the M5 Cage Nuts.
Use the manufacturer-recommended Screws for the Server Rack if they differ from M5.
3. Position the Shelf onto the Server Rack at the chosen U Height, determined in
Quick-Start Guide
Revision: August 29, 2024
