StarTech.com CABSHELF116V2PK Quick Start Manual

1U Vented Cantilever Shelf - 16 in. Depth - Capacity 44lb / 20kg - 2-Pack
Product ID
CABSHELF116V2PK
1
2

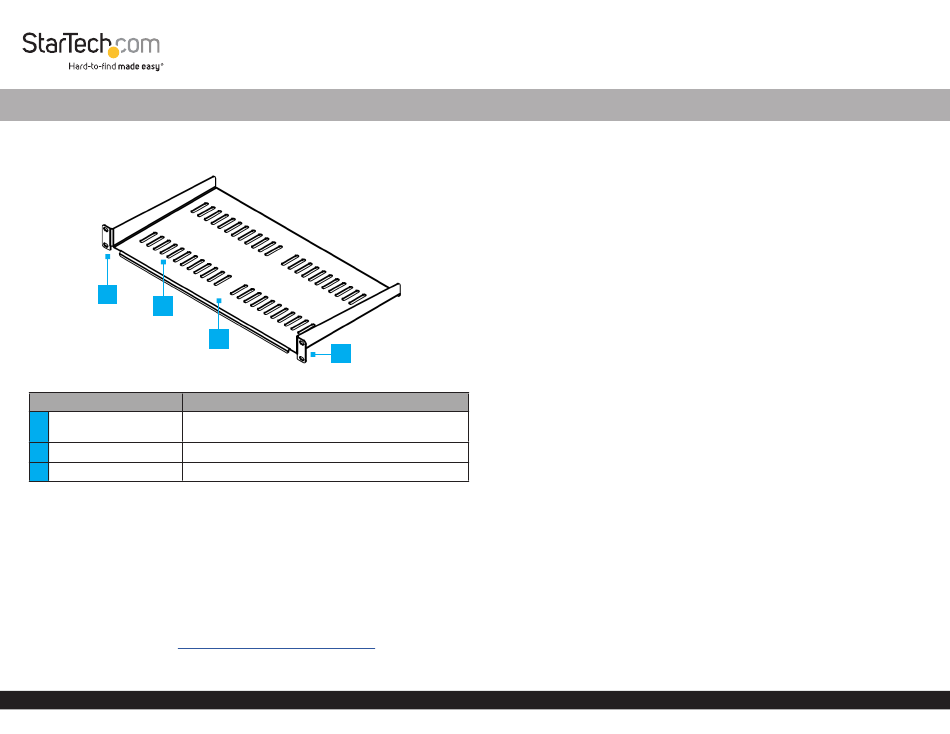

Component
• Used to fasten the Shelf to the Mounting Posts of a
1 Front Mounting Brackets
Server Rack
2 • Promote airflow for the Server Rack Equipment
Ventilation Holes
3 Shelf Surface • Place Server Rack Equipment
Package Contents
• 1U Rack Shelf x 2
• M6 Screws x 8
• M6 Cage Nuts x 8
• M6 Plastic Washers x 8
• Quick-Start Guide x 1
Requirements
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit: www.StarTech.com/CABSHELF116V2PK
• Refer to the manufacturer of the Server Rack to determine the mounting hole type
and size
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
3
1
*Product may vary from image
Function
• Phillips head screwdriver
• Cage nut tool (Optional)
Warnings!
• Read the entire Quick-Start Guide and ensure the instructions are fully understood before
using this product.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• Never operate this product if parts are missing or damaged.
• Ensure the weight of the equipment does not exceed the weight capacity of this product.
If the weight capacity is exceeded, personal injury or damage to the equipment is
possible. This product can support the following weight: 44 lb (20 kg).
Installation
1. Find a suitable location on the Server Rack to mount the Shelf. The Shelf requires
1U of Mounting Space.
2. Install the M6 Cage Nuts (x 4) into the Mounting Holes (x 4) on the Mounting
Posts of the Server Rack. If available, use a Cage Nut Tool or your preferred
installation method to install the Cage Nuts.
Note: Skip this step if the rack has M6 threaded holes. The M6 Screws can be installed
without the M6 Cage Nuts.
Use the manufacturer-recommended Screws for the Server Rack if they differ from M6.
3. Place the Shelf onto the Server Rack. Ensure the Mounting Holes on the Front
Posts are Aligned with the Mounting Holes of the Front Mounting Brackets.
4. Insert the M6 Screws (x 4) through the Plastic Washers, Front Mounting Brackets,
and into the Mounting Posts of the Server Rack. Tighten the M6 Screws (x 4) using
a Phillips Head Screwdriver.
Note: Ensure the Shelf is secure before placing Server Rack Equipment.
Quick-Start Guide
Manual Revision: October 20, 2023 3:48 PM
