StarTech.com CABSHELF22 Instruction Manual

Instruction Manual

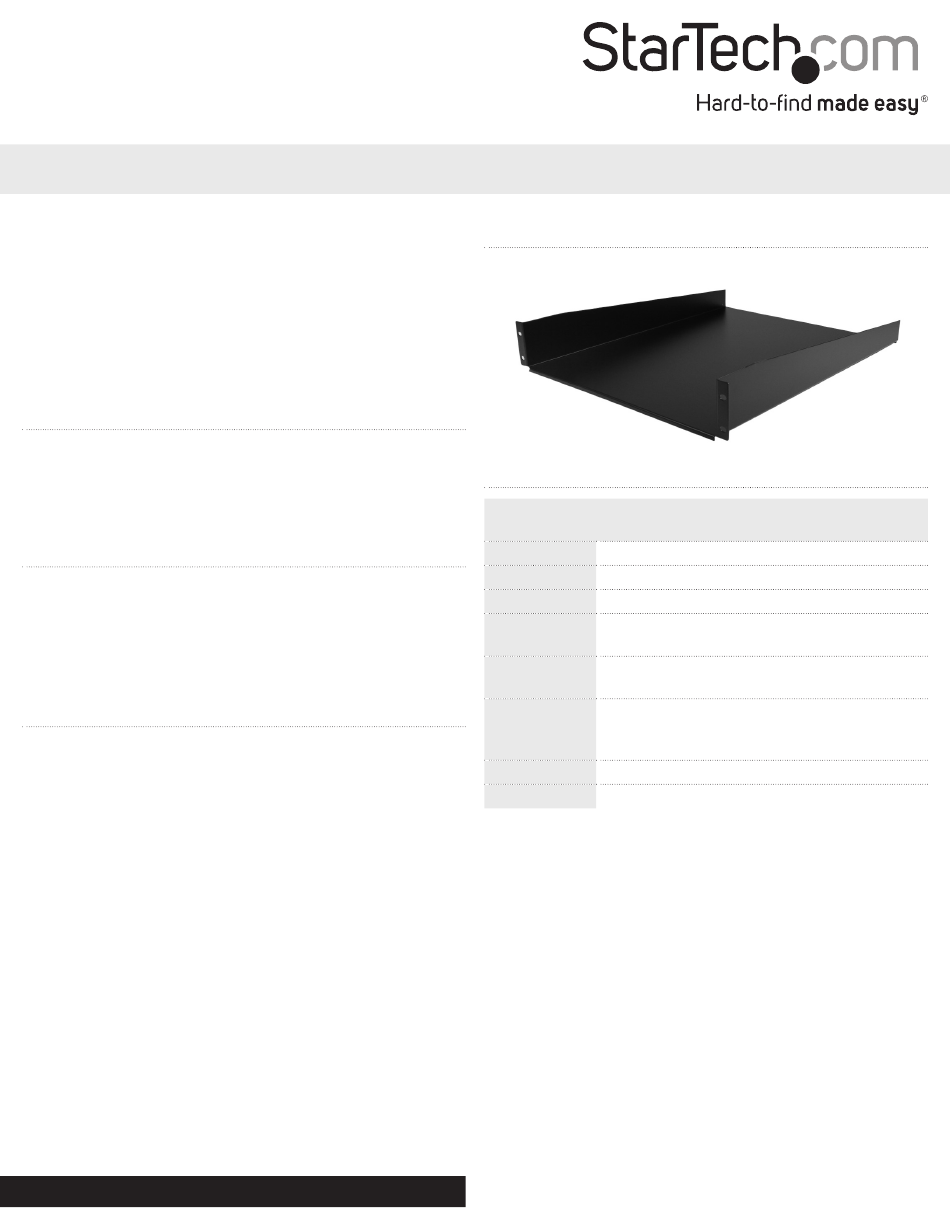

2U 22in Depth Fixed Shelf for Server Racks
CABSHELF22
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1 x 2U fixed rack shelf
• 4 x M5 screws
• 4 x M5 cage nuts
• 1 x instruction manual

System Requirements

• EIA-310C compliant 22 in. server rack/cabinet
• At least 2U of available space in rack/cabinet to mount shelf
• If using a rack/cabinet that does not use square mounting points along
the posts, the appropriate mounting hardware for the rack will be required
(consult documentation for the rack or contact the manufacturer)

Installation

1. Locate a suitable location in the rack/cabinet to mount the shelf.
The shelf itself requires 2U of space within the rack/cabinet.
2. If the rack uses square mounting holes, install the included cage
nuts into the square mounting holes on the front posts of the rack.
3. Place the shelf into the rack and align the mounting points on the
front brackets of the shelf with the mounting points on the rack
(e.g. the cage nuts, if used).
4. Use the provided cabinet screws to secure the shelf to the rack. If
not using the included cage nuts or M5 threaded rack posts, the
appropriate mounting hardware for the rack should be used.
5. Make sure the screws are properly tightened and the shelf has no
movement before attempting to place anything on the shelf. Be
sure to observe the maximum weight capacity of the shelf.
For the most up-to-date information, please visit: www.startech.com
CABSHELF22

Specifications

Description
2U 22 in. depth fixed shelf for server racks
Material
Color
Max Weight
Capacity
Mounting
Height
External
Dimensions
482.7 mm x 558.8 mm x 88.0 mm
(WxDxH)
Net Weight
Certifications
CABSHELF22
SPCC (1.6 mm thick)
Black
22 kg / 50 lbs
2U
3560 g
CE, RoHS
Manual Revision: 07/31/2015
