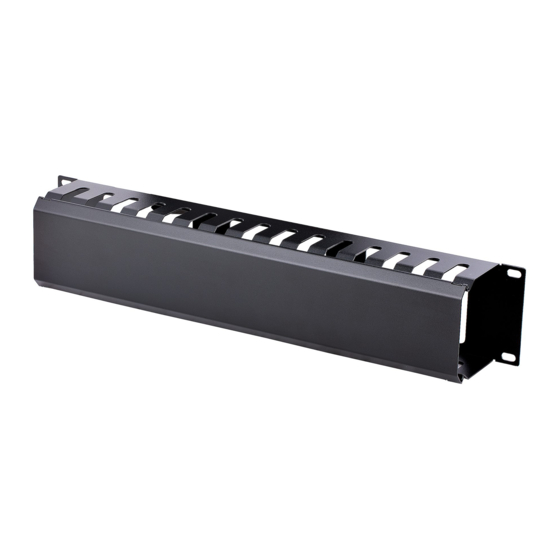

2U Horizontal Finger Duct Cable Management Panel for Racks - Includes Cover

Product Diagram (CMDUCT2U2)

Front View
2
1
3
Component
• Secures the Duct Cable Management Panel to the
1
Mounting Ears
rack
• Keeps cables out of the way, and it can be removed for
2
Duct Cover
installation or upgrades
• Allows cables to be inserted and held in place
Cable Management
3
Fingers
• Available along the length on both sides
• Each corner of the Duct Cable Management Panel
4
has a latching mechanism that keeps the Duct Cover
Duct Cover Latches
in place
• Allow the inserted cables to run off to the side of the
5
Cable Path
Duct Cable Management Panel
Rear View
Component
• Insert the cables through the Pass-through Holes as
1
Pass-through Holes
needed
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
4
5
Function
1
Function

Package Contents

• Horizontal Cable Duct x 1
• M6x12 mm Screws x 4
• M6 Cage Nuts x 4
• M6 Plastic Washers x 4
• Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.startech.com/CMDUCT2U2
• Phillips head screwdriver
• Cage nut tool (Optional)

Installation

1. Determine the U Height Number or Mounting Location on the Posts of the rack
where to install the Duct Cable Management Panel.
2. Install the M6 Square Cage Nuts (x 4) onto the Square Cage Nut Holes on the
chosen U Height Number. Use a Cage Nut Tool if available or your preferred
installation method.
3. Align the Mounting Ears with the previously inserted M6 Square Cage Nuts on the
rack posts.
4. Insert the M6 Plastic Washers (x 4) onto the M6x12 mm Screws (x 4). Use a Phillips
Head Screwdriver to install the M6x12 Screws (x 4) and fasten the Duct Cable
Management Panel to the Mounting Posts of the rack.

Operation

1. Insert the cables through the Cable Management Fingers and the Pass-through
Holes at the rear. Organize as desired.
2. Latch and secure the Duct Cover using the Duct Cover Latches (x 4).
Quick-Start Guide
Manual Revision: June 22, 2022 4:16 PM
