Grand Torino

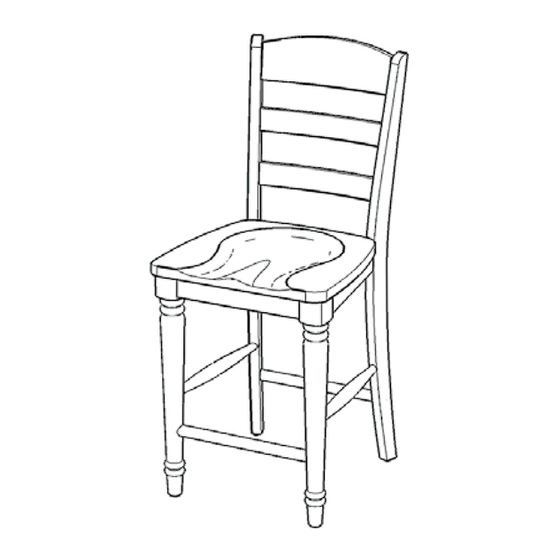

Counter Stool
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Seat
1 pc.
B.
Side Stretcher
1 pc.
C.
Side Stretcher
1 pc.
Hardware List
Key Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
E.
Leg
1 pc.
D.
Side Stretcher
1 pc.
Wood Screw
6 pcs.(+1 extra)
Head Cap Bolt
(long)
4 pcs.(+1 extra)
servicedesk@homestyles-furniture.com
F.
Leg
1 pc.
G.
Back Frame
1 pc
.
Head Cap Bolt
(short)
3 pcs.(+1 extra)
Head Cap Bolt
4 pcs.(+1 extra)
Flat Washer
11 pcs.(+1 extra)
Spring Washer
11 pcs.(+1 extra)
