88 5002 307

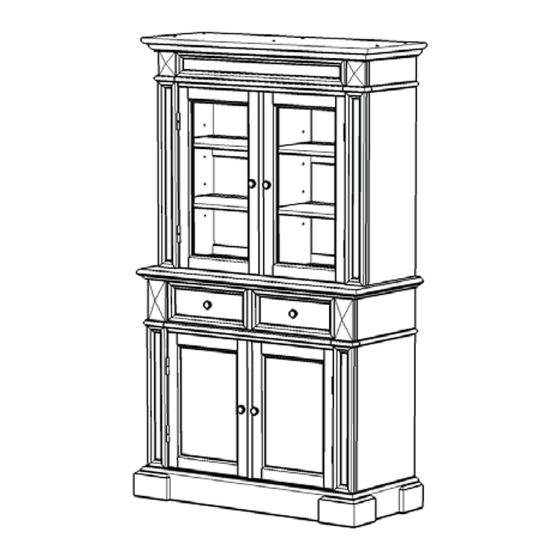

Hutch
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
F.
Front Rail
ont Rail
1 pc.
pc.
J.
.
I.
.
Door
oor
Door
Door
1 pc.
1 pc.
Hardware List
Cam Lock Screw
29 pcs. (+1 extra)
Cam Lock
29 pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
B.
Side Panel
1 pc.
K.
Front Post
1 pc.
L.
Front Post
1 pc.
M5x40
Panel Screw
9 pcs. (+1 extra)
Magnet
4 pcs.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
C.
Side Panel
1 pc.
M.
Shelf
1 pc.
N.
Shelf
1 pc.
O.
Shelf
4 pcs.
M3x13
Washer
Wood Screw
9 pcs. (+1 extra)
for Magnet
8 pcs. (+1 extra)
Machine Screw
Adjustable Pin
2 pcs.
16 pcs. (+1 extra)
E.
Back Rail
ck Rail
1 pc.
c.
D.
Middle Panel
1 pc.
G.
Back Rail
ck Rail
1 pc.
c.
H.
Back Rail
ack Rail
1 pc.
pc.
P.
Back Panel
2 pcs.
M3.5x16
Wood Screw
24 pcs. (+2 extra)
Knob
2 pcs.
Tools recommended for assembly : Leve
Steel Plate
Connector
2 pcs.
l
Advertisement
Related Manuals for Home Styles Hutch
Summary of Contents for Home Styles Hutch
- Page 1 Magnet Machine Screw Adjustable Pin 29 pcs. (+1 extra) 2 pcs. 4 pcs. 2 pcs. 16 pcs. (+1 extra) Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Leve Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instruction 2 / 6 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * Use a soft cloth between these parts and the fl oor. * After assembly, item must be level to work properly. Use the included adjustable levelers to level. Cam Lock Screw Cam Lock Screw Wood Screw...
- Page 3 Assembly Instruction 3 / 6 STEP 3 Attach Back Rails (E), (G) and (H) to Side Panel (C) with Cam Locks. (see Figure 3) Slide Back Panel (P) into the grooves in Side Panel (C) and Back Rails (E), (G), (H).
- Page 4 Assembly Instruction 4 / 6 STEP 5 Attach Shelf (M) to unit with Cam Locks. Cam Lock Attach Side Panel (B) to unit with Cam Locks. STEP 6 Attach Front Posts (K) and (L) to Front Rail (F) with Cam Locks. Cam Lock...
- Page 5 Assembly Instruction 5 / 6 STEP 7 Attach unit from Step 5 to unit with Cam Locks. Cam Lock Panel Screw Washer Figure 5 Figure 6 STEP 8 Place Top (A) onto the unit and attach with Washers and Panel Screws. Insert Adjustable Pins into the side panels at the desired level.
- Page 6 Note: Please make sure unit is level before tightening these screws. Wood Screw Steel Plate Connector Figure 8 Figure 7 Wood Screw STEP 10 Place the Hutch unit onto the Buffet unit. Attach Steel Plate Connectors with Wood Screws. (see Figure 8)
