88 5033 942

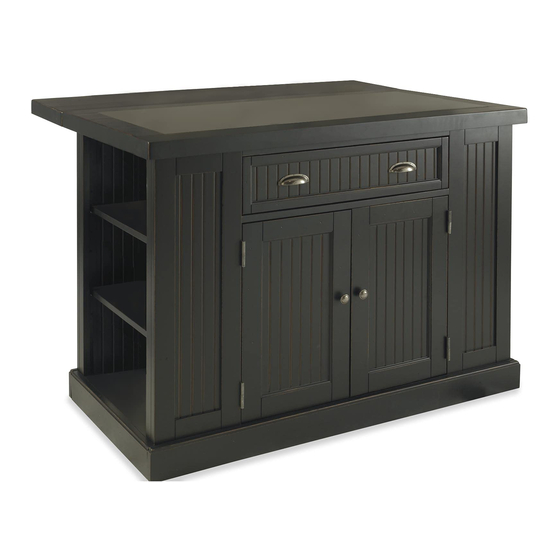

Kitchen Island
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
I.
Back Stretcher
2 pcs.
K.
Back Panel
2 pcs.
Q.
R.
Plinth
Leg Support
2 pcs.
1 pc.
Hardware List
Small
Hex Wrench
Hex Wrench
1 pc.
1 pc.
M3.5x25
M6x30
Wood Screw (long)
Head Cap Bolt
for Drawer Side Part
26 pcs. (+1 extra)
8 pcs. (+1 extra)
For assembly also need carton 88 5033 941
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
E.
D.
Side Panel
Side Panel
1 pc.
1 pc.
L.
Shelf
4 pcs.
J.
Stretcher
1 pc.
M.
Shelf
1 pc.
Adjustable Pin
20 pcs. (+1 extra)
M3.5x16
Wood Screw (short)
for Drawer Base Part
6 pcs. (+1 extra)
F.
G.
Side Panel
Side Panel
1 pc.
1 pc.
N.
O.
Back Support
Back Support
1 pc.
1 pc.
P.
Base
1 pc.
Cam Lock
Pull Handle
16 pcs.(+2 extra)
2 pcs.
M4x16
Wood Screw
Cam Lock Screw
for Hinge
16 pcs.(+1 extra)
27 pcs. (+2 extra)
Tools recommended for assembly : Level
H1.
Front Rail
1 pc.
H2.
Front Rail
1 pc.
S.
Plinth
2 pcs.
T.
Door
Door
1 pc.
1 pc.
V.
1 pc.
Knob
2 pcs.
Machine Screw
6 pcs.
U.
Advertisement
Table of Contents
Related Manuals for Home Styles 88 5033 942
Summary of Contents for Home Styles 88 5033 942
- Page 1 27 pcs. (+2 extra) 26 pcs. (+1 extra) 8 pcs. (+1 extra) For assembly also need carton 88 5033 941 Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance : www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * Y ou should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * After assembly , item must be level to work properly.
- Page 3 Assembly Instructions 3/6 STEP 2 Attach Side Panel (B) to Base (P) with Head Cap Bolts. Attach Side Panels (D) and (E) to Base (P) with Head Cap Bolts. Head Cap Bolt STEP 3 Attach Front Rail (H1) and Front Rail (H2) to unit using Cam Locks.
- Page 4 Assembly Instructions 4/6 Cam Lock STEP 4 Attach Side Panel (C) to Base (P) with Head Cap Bolts. Attach Side Panels (F) and (G) to unit with Head Cap Bolts. Head Cap Bolt Head Cap Bolt STEP 5 Attach Plinths (Q) to Base (P) with Head Cap Bolts.
- Page 5 Assembly Instructions 5/6 Wood Screw STEP 6 Attach Back Support (N) and (O) to unit with Wood Screws into pre-drilled holes. Cam Lock Figure 1 Figure 2 STEP 7 Place Top (A) onto unit with Cam Locks. Adjustable Pin Attach Doors (T) and (U) by sliding the door lift hinges into the side panels lift hinges. (See Figure 1) Attach Knobs to Doors (T) and (U) with Machine Screws.
- Page 6 Assembly Instructions 6/6 Drawer STEP 1 Attach V1 to V3 and V4, using Phillips screwdriver long wood screws (4X), (Figure 1) tighten halfway. Attach V2 to V3 and V4 using MAKE SURE ROLLER long wood screws (4X), IS ON THE BACK tighten halfway.
- Page 7 Part List 1 pc. 1 pc. For assembly see instructions in carton 88 5033 942 Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 8 HOW TO UNPACK THE GRANITE TOP IMPORTANT * Please follow these step to unpack the granite top. STEP 1 Wood Crate Open carton. Remove wood crate and place it on the floor. Wood Frame STEP 2 Wood Frame Wood Frame Use a hammer to knock out the wood framing.
