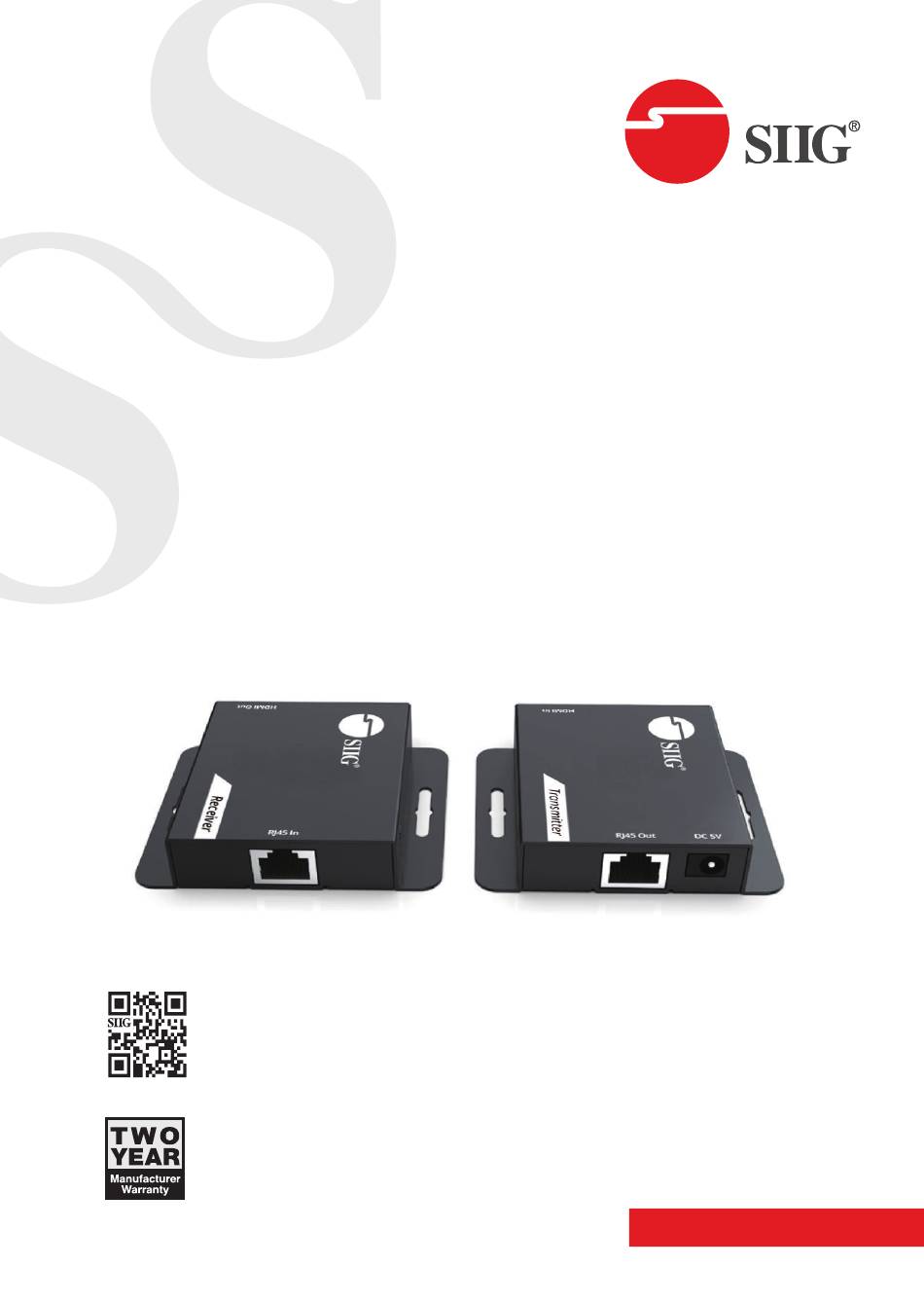

- Page 1 Manual CE-H3EX01-S1 HDMI Over Cat6 Extener-60m User Manual 04-1426A...
-
Page 2: Important Safety Guidelines
Thank you for choosing SIIG for your connectivity needs in IT and AV products. Our products are engineered for optimal performance and reliability. To ensure the best experience and safety, please read the instructions thoroughly and keep this user guide for future reference. For more details about our product range, visit www.siig.com... -
Page 3: Key Features
Introduction Easily to extend an HDMI signals up to 197ft over a single Cat6/7 cable and support full HD 1080p 60Hz resolution Key Features • Extends HDMI signals to a remote display up to 197ft (60 meters) away over Cat6/7 network cable •... - Page 4 Layout Transmitter ( TX ) Figure 1: Transmitter layout Connections Descriptions Power On when powered on Indicator HDMI On when HDMI signal is detected Indicator from the source device Connect to a source device with an HDMI In HDMI cable (cable not included) Connect to the receiver’s RJ45 In with RJ45 Out a CAT cable (cable not included)
- Page 5 Receiver ( RX ) Figure 2: Receiver layout Connections Descriptions On when powered on. The receiver Power will receive power over CAT cable Indicator via PoC (Power-over-Cable) from the transmitter HDMI On when HDMI display is connected Indicator to the HDMI output HDMI Connect to a display with an HDMI Output...
-
Page 6: Specifications
Specifications Input Video 0.5 - 1.0 Volts P-P Signal Input DDC 5 volts p-p (TTL) Signal Support Video DTV / HDTV: 720p / 1080i / 1080p Format 3D video Video Output HDMI Support Audio LPCM 2.0 48Khz Format Transmission 60m single CAT6/7 without signal loss Distance Operating Temperature... -
Page 7: Hardware Installation
Hardware Installation 1. Power off all devices including your HDMI source device and HDMI display 2. Connect your HDMI source device to the transmitter’s HDMI In with an HDMI cable (cable not included) 3. Connect a CAT6/7 cable between the transmitter and receiver 4. - Page 8 Cat Cable Wiring We suggest both RJ45 connectors be wired indentically using T568B wring standard for the best performance and compatibility Both connections must be wired identically to the T568B standard Note: You may use Cat6 / Cat7 wring, however, for best performance Cat6 or Cat7 (particularly in electrically noisy environments) is recommended.
-
Page 9: Application Diagram
Application Diagram The HDMI Over Cat6 Extender is perfect for extending high- definition video up to 60m distances, making it ideal for various professional AV setups, including conference rooms, and home theater systems Figure 3: Application Diagram User Manual... - Page 10 Disclaimer The product name and brand name may be registered trade- marks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with- the actual products.
- Page 11 User Manual...
- Page 12 Thank you for your purchase! https://www.siig.com Please visit SIIG Support Please visit Product page Copyright ©2024 by SIIG,Inc. All rights reserved.
