Summary of Contents for SIIG CE-H22T11-S1
-

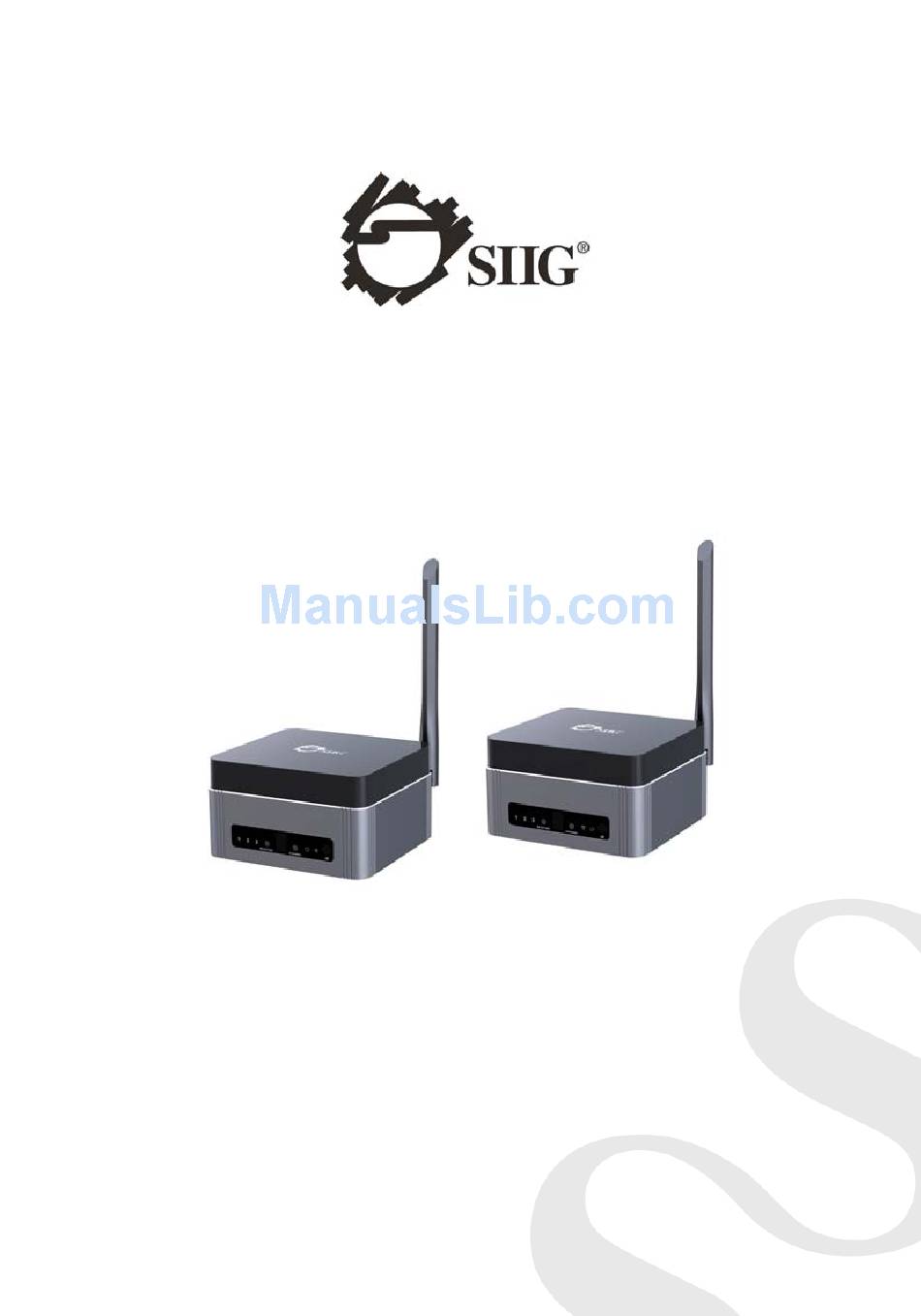

Page 1: Installation Guide
Full HD Multi-Channel Expandable Wireless HDMI Gateway Extender Installation Guide P/N: CE-H22T11-S1/CE-H22U11-S1 04-1097A... - Page 2 Introduction The Full HD Multi-Channel Expandable Wireless HDMI Gateway Extender connects up to 3 HDMI sources and transmits HDMI A/V signals wirelessly up to 165ft with 1080p resolution. Features and Benefits • 10 selectable wireless channels available to prevent signal interference and to provide optimal reception quality •...
-
Page 3: Package Contents
Package Contents • Full HD Multi-Channel Expandable Wireless HDMI Gateway Extender • IR blaster extension cable • IR receiver extension cable • Power adapters (x2) • Remote control (with one battery) • Installation Guide Specifications Wireless Technology 5 GHz Signal Type HDMI HDMI Version HDMI 1.3 compatible... - Page 4 Product Layout IR window Connection indicator Switch button (Source) Input indicator Input channel indicator Switch button (Channel) Figure 1: Transmitter (TX) - front side • Switch button (Source): Press to switch between HDMI sources (HDMI sources 1, 2 or 3) •...
- Page 5 Reset button HDMI out IR Out Antenna port Power jack HDMI In Figure 2: Transmitter (TX) - rear side • Antenna port: Attach the included Antenna here • HDMI Output (optional): Connects to an HDMI display for local monitoring of the extended HDMI display •...
- Page 6 IR window Switch button Data transmission (Source) indicator Input channel indicator Connection indicator Switch button (Channel) Figure 3: Receiver (RX) - front side • Switch button (Source): Press to switch between HDMI sources (HDMI sources 1, 2 or 3) • Input channel indicator: Indicates the input channel selected.
- Page 7 Antenna port HDMI Out Power jack IR in Reset button Figure 4: Receiver (RX) - rear side • Antenna port: Attach the included Antenna here • Power jack: Connects to the included power adapter • HDMI Out: Connects to your HDMI display with a HDMI cable (cable not included) •...
- Page 8 IR Remote Control Previous Next Input Select Button Figure 5: IR Remote Control • Previous (CH-): Select the previous input source • Next (CH+): Select the next input source • Input Select Button (1-3): Select input source 1, 2, 3...
- Page 9 IR Extension cables (20-60Hz Frequency Range) The IR Extension feature allows you to control your HDMI source device from a remote location. Figure 6: IR blaster Figure 7: IR receiver extension cable (IR OUT) extension cable (IR IN) • IR blaster extension cable (IR OUT): Plugs into the Transmitter's IR Out socket.
-
Page 10: Hardware Installation
Hardware Installation Power off all devices including your HDMI source and display. Attach the included antennas to the TX and RX. Connect your HDMI sources to the Transmitter's HDMI IN connectors. Optional: Connect the IR Blaster extension cable to the Transmitter's IR Out. Face the eye towards your HDMI device's IR window. - Page 11 Application The Full HD Multi-Channel Expandable Wireless HDMI Gateway Extender enables you to connect up to 3 HDMI sources and easily switch between multiple devices. It extends HDMI signals wirelessly up to 165ft. Note: The transmission distance will vary depending on building layout, electronic interference, other environmental conditions, and may be much less than the maximum.
- Page 12 Multicast ability: Broadcasts and independent streams video content to two remotely located displays simultaneously*. * Remark: Extra receiver unit (CE-H22U11-S1) sold separately Figure 9...
- Page 13 Notice • Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance • It's recommended that the distance between two receivers not less than 3 meters • Keep the unit in a well ventilated environment to prevent it from overheating •...
- Page 14 There is no output on the display: 1) Make sure the HDMI devices are well connected to the Transmitter (TX). 2) Use different HDMI cables. 3) If still not working, connect the HDMI device to the TV directly to see if there's a signal.
- Page 15 This warranty is not transferable and is available only to the original purchaser of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
- Page 16 Phone: 510-657-8688 Full HD Multi-Channel Expandable Wireless HDMI Gateway Extender is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
