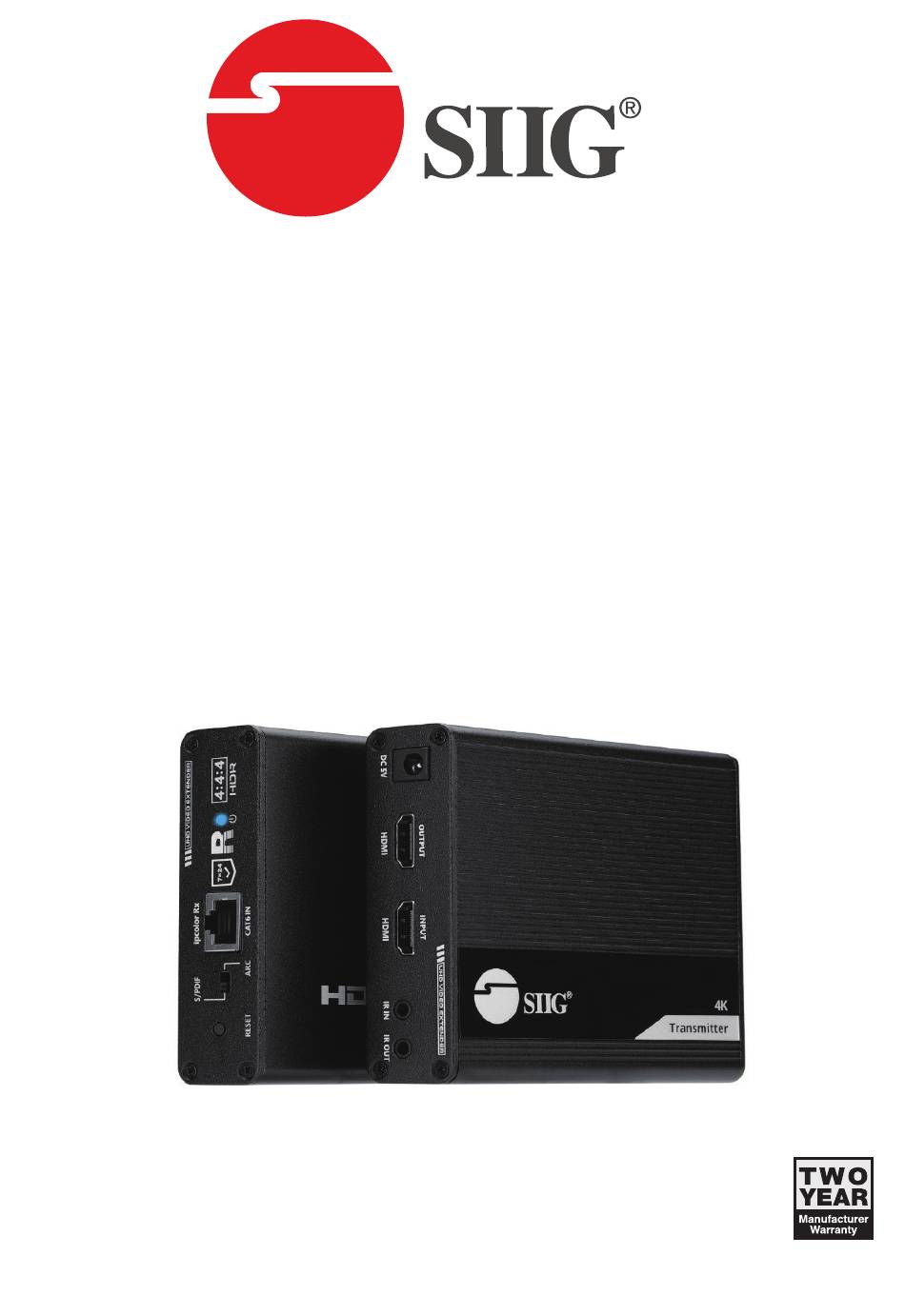

- Page 1 4K HDMI 2.0 Extender Daisy Chain Transmission Kit User Manual P/N: CE-H26M11-S1 04-1328B...
-
Page 2: Package Contents
Features • Support HDMI 2.0, 4K@60 4:4:4 8bits, • Support HDCP 2.2 / 1.4 & HDR 10 • Extend 4K@60Hz video up to 230ft through a Cat6 cable • Support daisy chain to extend HDMI single to the next Transceiver, up to 10 level. •... - Page 3 Layout Transmitter (TX) Reset BUTTON: Press to restart the device RJ-45 output: Connect to Transceiver with Cat6 cable Power/Signal LED: Flash when no HDMI signal. Solid blue when HDMI signal connected. POWER JACK: DC 5V/2A HDMI OUTPUT: Connect to HDMI display HDMI INTPUT: Connect to HDMI source IR in: Connect with IR receiver extension cable, please make sure the remote control used is...
- Page 4 Transceiver(RX) Reset BUTTON: Press to restart the device Audio Switch: Select extract audio from HDMI Input or ARC from TV, for Toslink use. RJ-45 input: Connect to Transmitter with Cat6 cable Power/Signal LED: Flash when no HDMI signal. Solid blue when HDMI signal connected. POWER JACK: DC 5V/2A Daisy chain RJ-45: Connect to next Transceiver with Cat6 cable...
-
Page 5: Edid Learning
EDID Learning • The extender will auto-learning RX connected display EDID. • If the TX loop-out connected display also, the device will use the smaller display EDID of two displays. For example Two displays are 4K@60 & 1080p@60, the extender will use 1080p@60 EDID. Two displays output resolution will be 1080p@60. - Page 6 Application One to One Daisy chain • Note: Daisy chain maximum is One Transmitter and Ten Receivers For the best quality, please use Cat6 cable less than or equal 165 ft when Daisy chain.
-
Page 7: Daisy Chain
Daisy chain • The resolution will follow the first Receiver. • If the first RX uses 1080p EDID, all daisy chain RXs will get the 1080p signal. e.g. RX1 1080p -> RX2 1080p -> RX3 1080p -> RX4 1080p -> ...RX10 1080p • If the first RX uses 4K@60 EDID, all daisy chain RXs will get the 4K@60 signal. e.g. RX1 4K@60 -> RX2 4K@60 -> RX3 4K@60 -> RX4 4K@60-> ...RX10 4K@60 •... -
Page 8: Dear Valued Customer
Dear Valued Customer WE REALLY APPRECIATE YOUR PURCHASE ~thank you~ Support For more info or tech support http://www.siig.com/support Sep, 2020 Copyright © 2020 by SIIG, Inc. All rights reserved.
