VGA/Component Extender over Cat.X with Audio,
RS-232, PS/2, and Bi-directional IR
P/N: AV-GM03T3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM03T3-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIIG AV-GM03T3-S1

  • Page 1 VGA/Component Extender over Cat.X with Audio, RS-232, PS/2, and Bi-directional IR P/N: AV-GM03T3-S1...
  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM03T3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

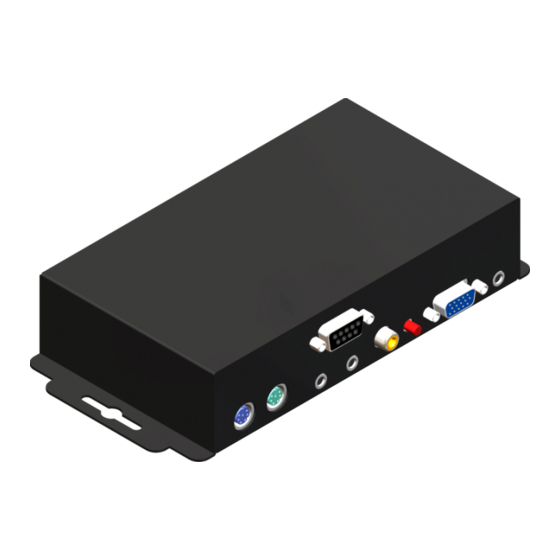

    WUXGA) or 720p component video, bi-directional IR control and half-duplex serial RS-232 at the same time to cover the distance up to 330m (1,000ft). The AV-GM03T3-S1 comes in a set of a transmitter and a receiver. The transmitting unit AV-GM03T3-S1-TX is installed near the signal source, and the receiving unit AV-GM03T3-S1-RX is placed near the desired VGA display.
  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM03T3-S1 Technical AV-GM03T3-S1[TX] AV-GM03T3-S1[RX] Role of usage Transmitter [TX] Receiver [RX] Video bandwidth 350MHz Video support VESA Transmission WUXGA [1920x1200] / 720p — 330m (1,000ft) [CAT5e] Audio support Stereo RS-232 signal type Half-duplex Input video signal 1.2 Volts [peak-to-peak]...
  • Page 5: Panel Descriptions

    Power consumption 6 Watts [max] Operation 0~40°C [32~104°F] temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Transmitting unit ► AV-GM03T3-S1-TX Connector Function PS/2 Mouse input PS/2 Keyboard input RS-232 Serial channel 3.5mm IR sender 3.5mm...
  • Page 6: Receiving Unit ► Rx

    Power +5V DC latch-locking Local VGA output RJ45 Cat.X output Local S/PDIF audio output 3.5mm Local stereo audio output RJ45 Cat.X output Receiving unit ► AV-GM03T3-S1-RX Connector Function PS/2 Mouse output PS/2 Keyboard output RS-232 Serial channel 3.5mm IR receiver 3.5mm...
  • Page 7 VGA output 3.5mm IR sender Power +5VDC latch-locking RJ45 Cat.X input Rotary control Rotary control Gain RJ45 Cat.X input...
  • Page 8: Ir Pass-Through

    IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices.
  • Page 9 You can buy any IR extension cables in the market that are compatible to the definition of the IR sockets for the matrix if necessary for replacement use. However, IR cables longer than 2m (6-ft) may not work. Supported IR Data Format Data Format Suitable Not Recommended...
  • Page 10: Connection Diagram

    CONNECTION DIAGRAM...
  • Page 11: Pin Definition

    PIN DEFINITION CAT5 [RJ45]...
  • Page 12: Notice

    NOTICE 1. All transmission distances are measured using Belden 1583A CAT5e 125MHz Solid UTP cable and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the distance between the video source and the VGA display. 2. The transmission length is largely affected by the type of CAT5/6 cables, the type of VGA sources, and the type of VGA display.
  • Page 13: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM03T3-S1 features and specifications is subject to change without further notice.

This manual is also suitable for:

Av-gm03t3-s1txAv-gm03t3-s1rx
