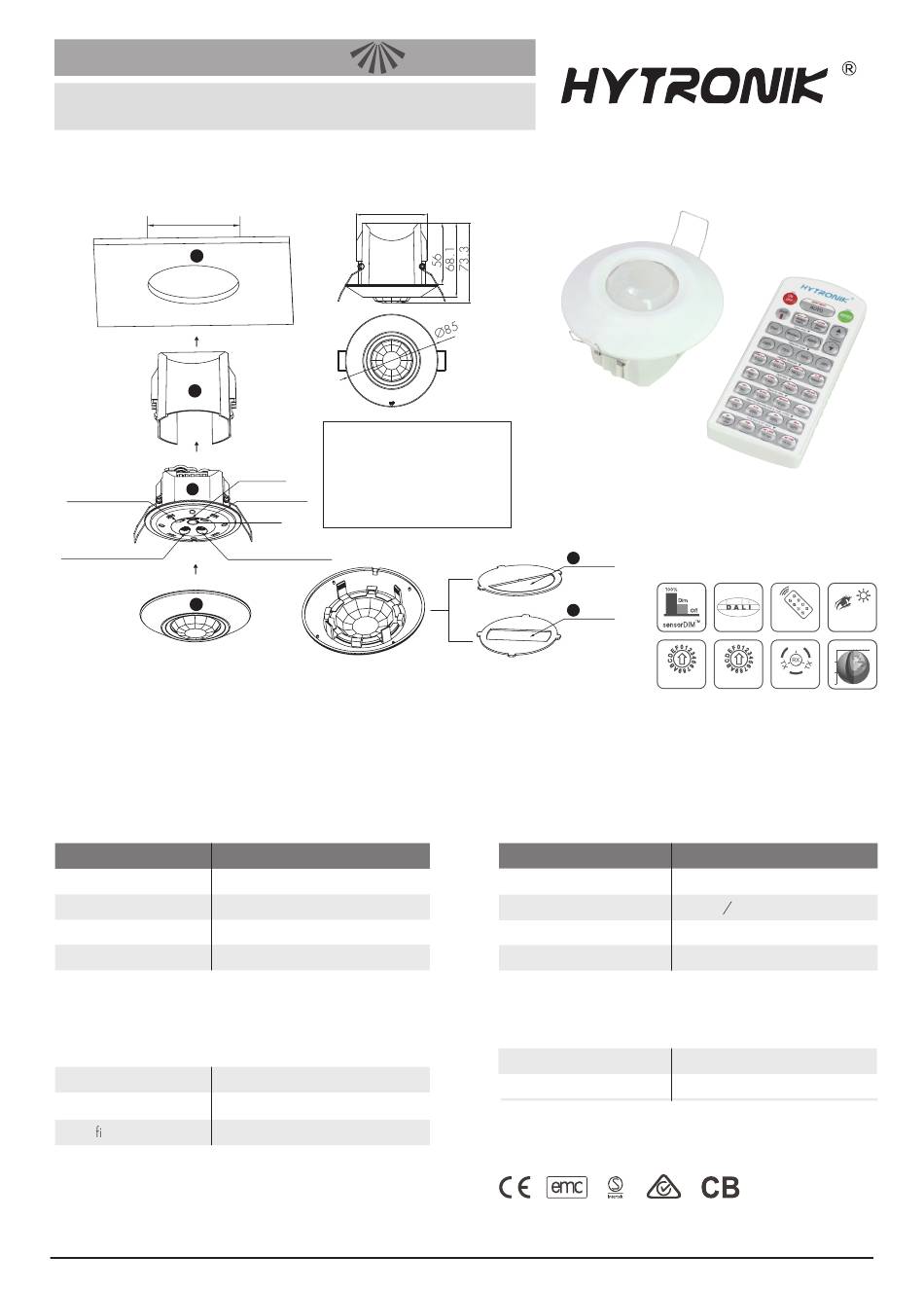

Flush Mount PIR Motion Sensor
HIR23
Tri-level Control for System DALI
Mechanical Structure
70mm
4
3
1
Infrared receiver
DALI group selection
2
Note1: the blinds are optional, they may be inserted behind the lens for focussing the detection range.
Note2:We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors
from false-triggering.
Technical Data
Input Characteristics
Model No.
Operating voltage
Stand-by power
Input current
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Certi cation
Subject to change without notice.
PIR
64.7
(1) Sensor inset
(2) Lens pluggable
Photocell
(3) Protection cover
LED indicator
(4) Ceiling (drill hole
PIR
Rotary switch preset
HIR23
9.5 ~ 22.5VDC
<0.5W
<8mA
30s
EN55015, EN61000
EN60669-1, EN60669-2-1
Semko, CB, CE , EMC, LVD, RCM
Ø
70mm).
A
Blind
B
Blind
Sensor Data
Model No.
Sensor principle
Detection range
Detection angle
Mounting height
Environment
Operation temperature
IP rating
Edition: 26 Feb. 2020
Ambient daylight
One-Key
Commissioning
TX
Rotary Switch
Rotary Switch
synchronization
Programing
Grouping
control
3
HIR23
PIR detection
(O x H) 10m x 3m
O
360
5m (maximum)
Ta: -20
O
C ~ +50
O
C
IP20
IP20
Ver. A0
Page 1/5
threshold
Detection Pattern
0
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIR23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hytronik HIR23

  • Page 1 Flush Mount PIR Motion Sensor HIR23 Tri-level Control for System DALI Mechanical Structure 64.7 70mm (1) Sensor inset (2) Lens pluggable Photocell (3) Protection cover Infrared receiver LED indicator Ø (4) Ceiling (drill hole 70mm). DALI group selection Rotary switch preset...
  • Page 2: Functions And Features

    Synchronisation Function By connecting the DALI terminals in parallel (see wiring diagram), no matter which sensor detects motion, all HIR23 in the group will turn on the lights when surrounding natural light is below the daylight threshold. The detection area could be widely enlarged in this way.
  • Page 3 Rotary Switch Preset A rotary switch is built inside the sensor for scene Detection Daylight Stand-by Stand-by Channel Hold-time selection / fast programming. Total 16 channels range sensor time dim level are available: 100% Disable 100% 1min 2Lux 5min 100% 5min 10Lux 10min...
  • Page 4 Scene program - 1-key commissioning 1. Press button “Start” to program. 2. Select the buttons in “Detection range”, “Daylight threshold”, “Hold-time”, “Stand-by time”, “Stand-by dimming level” to set all parameters. 3. Press button “Memory” to save all the settings programmed in the remote control. 4.
  • Page 5: Detection Pattern

    Additional Information / Documents 1. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation 2. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
