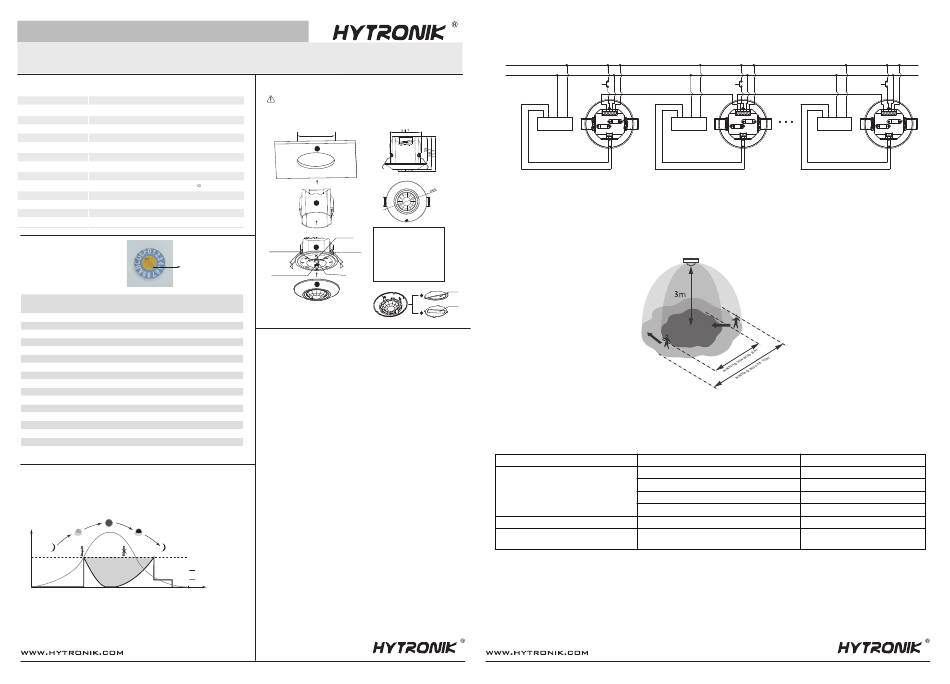

Hytronik HIR24 Installation And Instruction Manual

Installation and Instruction Manual

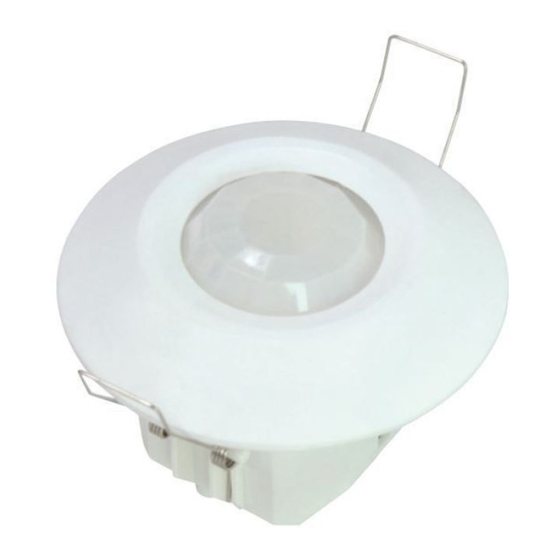

FLUSH MOUNT MICROWAVE DALI SENSOR
1. Technical Specifications
Product type Independent PIR DALI sensor (Daylight harvest)
Operating voltage 220~240VAC 50/60Hz
Switched power Maximum 40mA
Power consumption < 1W
o
Detection angle 360
Detection area (DxH) 10 x 3m (Tangential)
Mounting height 5m (Maximum)
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 50 ~ 500Lux , Disable
Warmming-up time 30s
o o
Operating temperature -20 C ~ +50 C
3. Rotary Switch Settings
Rotary switch preset (Please
A rotary switch is built inside the sensor for
see the location in 2. Installation)
scene selection / fast programming. Total
16 channels available:
Detection Hold Stand-by Stand-by
Channel
range time time dimming level
0 100% 5s 10s 10%
1 100% 1min 5min 10%
2 100% 5min 10min 10%
3 100% 5min +∞ 10%
4 100% 5min +∞ 10%
5 100% 5min +∞ 30%
6 100% 10min 30min 10%
7 100% 10min +∞ 10%
8 100% 10min +∞ 10%
9 100% 10min +∞ 30%
A 100% 20min 1h 10%
B 100% 20min +∞ 30%
C 100% 30min +∞ 10%
D 100% 30min +∞ 30%
E 100% 30min +∞ 50%
F 100% 5s 10s 10%
Note: settings can also be changed by remote control HRC-11. The last action controls.
4. Functions
4.1 Daylight Harvest (Daylight Regulating)
Daylight sensor measures the available surrounding natural light, calculates how much electrical light is
needed to reach the total lux expected. The demand is given to the LED driver by DALI signal, so as to
deliver the needed amount of electric light.
Light level
Hold time
Normal Electric Light
Energy Saving Zone Daylight controlled light
Stand-by time
Natural light
0 24
4.2 Lux Off Function
The built-in daylight sensor can read ambient natural light and switch off the fixture automatically whenever
artificial light is not required (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light is
sufficient.
Subject to change without notice.
2. Installation
Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect supply before installing.
70mm
4
3
(1) Sensor inset
Photocell
(2) Lens pluggable
1
(3) Protection cover (covers the
Infrared receiver LED indicator
PIR
Rotary switch preset (4) Ceiling (drill hole O 70mm).
2
Daylight
threshold
Note: the blind can be plugged to the cover for
Disable
reducing detection angle if necessary
50Lux
50Lux
4.3 Semi-auto Function (Absence Detection)
75Lux
The motion sensor is employed, but only activated on the manual press of the push switch,
100Lux
light keeps on in the presence, and dims down in the absence, and eventually switches off
200Lux
automatically in the long absence.
50Lux
75Lux
4.4 Ambient Daylight Threshold
100Lux
Switch the power supply to the sensor two times within 2 seconds, the ambient lux level is
200Lux
sampled and set as the new daylight threshold. Both the settings on rotary switch and the
100Lux
ambient lux level sampled can overwrite each other. This feature enables the daylight sensor
200Lux
to be commissioned to the environment in which it is installed. The last adjustment remains in
100Lux memory.
200Lux
400Lux
4.5 8H Manual ON Mode For LED Lamp
100Lux
Turn off/on the power supply three times within 3 seconds, the light will be turned on for 8
hours, even there is no motion detected, then go back to sensor mode automatically.
Note: this 8H manual on mode can be cancelled by turning off/on the power supply one time
within 1 second.
4.6 Manual Override
With the help of push-switch, this sensor maybe over-ridden by the end-users to switch on/off
the lights manually, or adjust the light brightness during motion hold-time. This makes the
product more user-friendly and offers more options to fit for extra-ordinary demands.
* Short push (<1s): on/off function;
ON → OFF: the light turns off immediately and cannot be lighten for a certain time (equals
to hold time preset) even there is movement is detected. After this period, the sensor goes
back to auto sensor mode.
OFF → ON: the light turns on 100% and goes to auto sensor mode, even when ambient
Lux level exceeds the daylight threshold.
* Long push (>1s): adjust the target lux level by turning the light up or down. Both the
adjustment on remote control and push switch can overwrite each other,
the last adjustment remains in memory.
* If no end-user adjustment is desired, simply leave this terminal disconnected.
Time (hrs)
4.7 Synchronization Function
By connecting the "SYNC" terminals in parallel (see wiring diagram), no matter which sensor
detects motion, all HIR24 in the group will turn on the lights when surrounding natural light is
below the daylight threshold. The sensor module is shared and the detection area could be
widely enlarged in this way.
5. Wiring Diagram
HIR24
L
N
Dali Driver
6. Detection Pattern
high-voltage terminals, and leaves
the DALI terminals exposed).
Blind
A
Blind
B
7. Trouble Shooting
MALFUNCTION CAUSE REMEDY
The fixture does not light up
The fixture is always on
The fixture is on when it should not
Subject to change without notice.
HIR24-20231101-A1
SY SY PU N L SY SY PU N L
NC NC SH NC NC SH
Dali Driver
HIR24 HIR24
DALI DALI
+ - + -
———This product should be installed by a qualified electrician.
CAUSE
Incorrect daylight threshold setting
Faulty fixture
No power supply
Detection zone not targeted
Continued movement in the detection zone
Sudden change in temperature due to weather (wind, rain, snow) or air
expelled from fans, open windows
SY SY PU N L
NC NC SH
Dali Driver
HIR24
DALI
+ -
REMEDY
Adjust daylight threshold setting
Replace fixture
Check power to sensor
Check detection area setting
Check detection area setting
Adjust zone, change installation site
HIR24-20231101-A1
