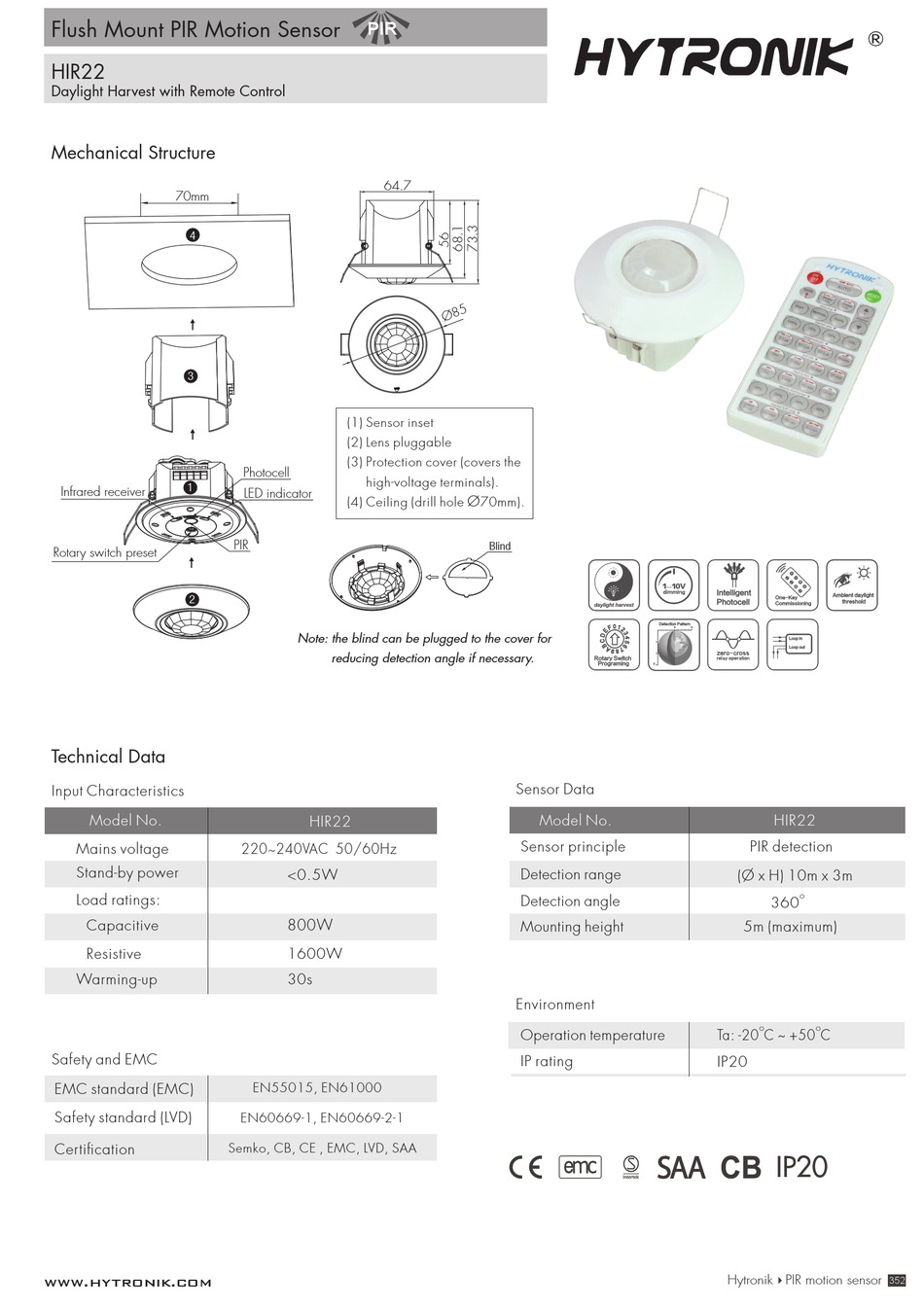

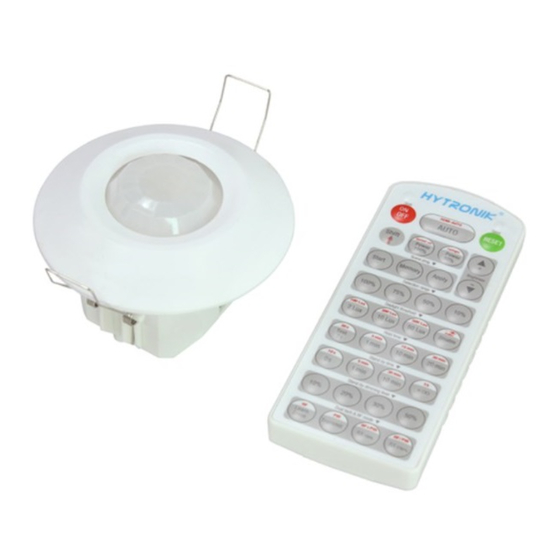

Flush Mount PIR Motion Sensor
HIR22
Daylight Harvest with Remote Control
Mechanical Structure
70mm
4
3
1
Infrared receiver
Rotary switch preset
2
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Certification
www.hytronik.com
PIR
64.7
(1) Sensor inset
(2) Lens pluggable
(3) Protection cover (covers the
Photocell
high-voltage terminals).
LED indicator
(4) Ceiling (drill hole
PIR
Note: the blind can be plugged to the cover for
reducing detection angle if necessary.
HIR22
220~240VAC 50/60Hz
<0.5W
800W
1600W
30s
EN55015, EN61000
EN60669-1, EN60669-2-1
Semko, CB, CE , EMC, LVD, SAA
Ø
70mm).
Blind
Sensor Data
Model No.
Sensor principle
Detection range
Detection angle
Mounting height
Environment
Operation temperature
IP rating
HIR22
PIR detection
(O x H) 10m x 3m
O
360
5m (maximum)
O
O
Ta: -20
C ~ +50
C
IP20
IP20
Hytronik PIR motion sensor
352
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hytronik HIR22
Summary of Contents for Hytronik HIR22
- Page 1 1600W Warming-up Environment Operation temperature Ta: -20 C ~ +50 Safety and EMC IP rating IP20 EMC standard (EMC) EN55015, EN61000 Safety standard (LVD) EN60669-1, EN60669-2-1 Certification Semko, CB, CE , EMC, LVD, SAA IP20 www.hytronik.com Hytronik PIR motion sensor...
-
Page 2: Functions And Features
ON in the presence, and dims down in the absence, then switches off in the long absence. Note: end-user can choose either function or function for application. Default function is manual override. www.hytronik.com Hytronik PIR motion sensor... - Page 3 HRC-11 mode. (Absence detection mode) Power output Press the buttons to select light output at 80% (at initial 10,000 hours) or 100%. Note: “Sensor off” and “Twilight” functions are disabled. www.hytronik.com Hytronik PIR motion sensor...
- Page 4 Stand-by dimming level Press the button in zone “stand-by dimming level” to set the stand-by dimming level at 10% / 20% / 30% / 50%. Dual tech & RF mode All buttons are disabled. www.hytronik.com Hytronik PIR motion sensor...
-
Page 5: Detection Pattern
Note: settings can also be changed by remote control +∞ 100% 30min 200Lux HRC-11. The last action controls. 100% 30min 400Lux +∞ 100% 100Lux Wiring Diagram Detection Pattern LED+ L’ N N L LED - HIR22 1-10V 1-10V LED Driver www.hytronik.com Hytronik PIR motion sensor...
