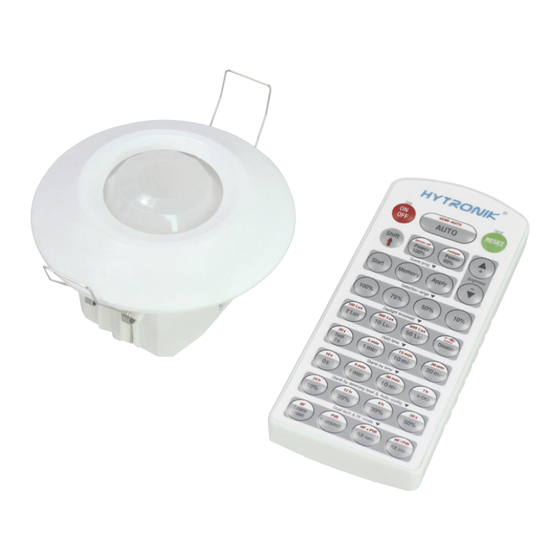

Flush Mount PIR Motion Sensor
HIR20
On/ off Control with Remote control
Mechanical Structure
70mm
4
3
1
Infrared receiver
Rotary switch preset
2
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Certi cation
Subject to change without notice.
PIR
64.7
(1) Sensor inset
(2) Lens pluggable
(3) Protection cover (covers the
Photocell
high-voltage terminals).
LED indicator
(4) Ceiling (drill hole
PIR
Note: the blind can be plugged to the cover for
reducing detection angle if necessary.
HIR20
220~240VAC 50/60Hz
<1W
800W
1600W
30s
EN55015, EN61000
EN60669-1, EN60669-2-1
CB, CE , EMC, LVD, RCM
Ø
70mm).
Blind
Intelligent
Photocell
Rotary Switch
Programing
Sensor Data
Model No.
Sensor principle
Detection range
Detection angle
Mounting height
Environment
Operation temperature
IP rating
Edition: 11 Oct. 2023
IP20
Ambient daylight
One-Key
threshold
Commissioning
Detection Pattern
0
5
Loop in
Loop out
3
HIR20
PIR detection
(O x H) 8m x 3m (minimum)
O
360
5m (maximum)
O
O
Ta: -20
C ~ +50
C
IP20
Ver. A0
Page 1/4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hytronik HIR20
Summary of Contents for Hytronik HIR20
- Page 1 Flush Mount PIR Motion Sensor HIR20 IP20 On/ off Control with Remote control Mechanical Structure 64.7 70mm (1) Sensor inset (2) Lens pluggable (3) Protection cover (covers the Photocell high-voltage terminals). Infrared receiver LED indicator Ø (4) Ceiling (drill hole 70mm).
- Page 2 Functions and Features On/ off Control This sensor is a motion switch, which turns on the light upon detection of motion, and turns off after a pre-selected hold-time when there is no movement. A daylight sensor is also built in to prevent the light from switching on when there is suf cient natural light. Intelligent Photocell (daylight detection prior to motion detection) The built-in photocell will also automatically turn off the light when the ambient natural light exceeds the programmed lux level for more than 5min, regardless of whether motion is detected or not.
- Page 3 Settings (Remote Control HRC-11) Permanent ON/OFF function Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”, “RESET” to quit this mode. Reset Settings Press button “RESET”, all settings go back to rotary switch settings. Shift Button Press button “Shift”, the LED on the top left corner is on to indicate mode selection.
- Page 4 Radial movement 8m Radial movement 4m Tangential movement 10m Tangential movement 5m Tangential movement 10m Wiring Diagram LED+ L’ N N L LED - HIR20 LED Driver Subject to change without notice. Edition: 11 Oct. 2023 Ver. A0 Page 4/4...
