Installation and Instruction Manual

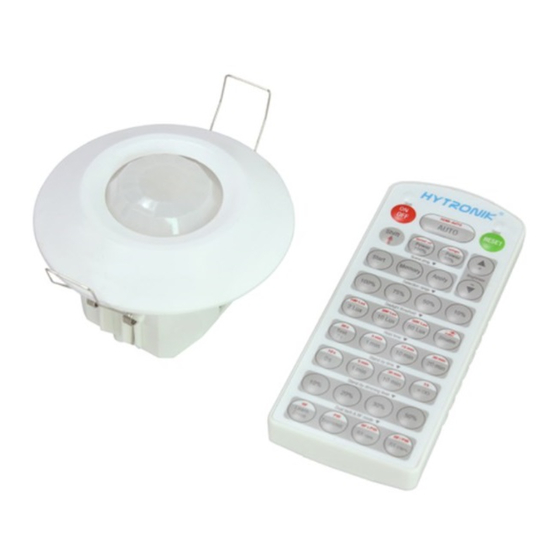

FLUSH MOUNT PIR MOTION SENSOR
1. Technical Specifications
Product type Daylight harvest PIR motion sensor
Operating voltage 220~240VAC 50/60Hz
Rated load 1600W (resistive); 800VA (capacitive)
Power consumption < 0.5W
o
Detection angle 360
Detection area (DxH) 10 x 3m (Tangential)
Mounting height 5m (Maximum)
Detection range 10% / 50% / 70% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 50 ~ 500Lux, Disable
Warming up time 30s
o o
Operating temperature -20 C ~ +50 C

2. Installation

Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect supply before installing.
70mm
64.7
4
3
(1) Sensor inset
(2) Lens pluggable
(3) Protection cover (covers the
Photocell
1 high-voltage terminals, and leaves
Infrared receiver LED indicator
the 1-10V terminals exposed).
(4) Ceiling (drill hole O 70mm).
PIR
Rotary switch preset
2
Note: the blind can be plugged to the cover for
reducing detection angle if necessary.
Subject to change without notice.

3. Rotary Switch Settings

A rotary switch is built inside the sensor for
scene selection / fast programming. Total
16 channels available :
Detection Hold Stand-by Stand-by
Channel
range time time dimming level
0 100% 5s 10s 10%
1 100% 1min 5min 10%
2 100% 5min 10min 10%
3 100% 5min +∞ 10%
4 100% 5min +∞ 10%
5 100% 5min +∞ 30%
6 100% 10min 30min 10%
7 100% 10min +∞ 10%
8 100% 10min +∞ 10%
9 100% 10min +∞ 30%
A 100% 20min 1h 10%
B 100% 20min +∞ 30%
C 100% 30min +∞ 10%
D 100% 30min +∞ 30%
E 100% 30min +∞ 50%
F 100% 5s 10s 10%
Note: settings can also be changed by remote control HRC-11. The last action controls.

4. Functions

4.1 Daylight Harvest (Daylight Regulating)

Daylight sensor measures the available surrounding natural light, calculates how much electrical light
is needed to reach the total lux expected. The demand is given to the LED driver by 1-10V signal, so
as to deliver the needed amount of electric light.
Light level
Hold time
Energy Saving Zone
Stand-by time
0

4.2 Lux Off Function

The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
A
Blind
whenever artificial light is unneeded (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.
B Blind

4.3 Semi-auto Function (Absence Detection)

The motion sensor is employed, but only activated on the manual press of the push switch, light
keeps on in the presence, dims down in the absence, and eventually switches off automatically
in the long absence.

4.4 Ambient Daylight Threshold

Switch the power supply to the sensor two times within 2 seconds, the ambient lux level is
sampled and set as the new daylight threshold. Both the settings on rotary switch and the
ambient lux level sampled can overwrite each other. This feature enables the daylight sensor
to be commissioned to the environment in which it is installed. The last adjustment remains in
memory.
4.5 8H Manual ON Mode For LED Lamp
Turn off/on the power supply three times within 3 seconds, the light will be turned on for 8 hours, even there is no motion detected, then go back to sensor mode automatically.
Note: this 8H manual on mode can be cancelled by turning off/on the power supply one time within 1 second.
HIR22

4.6 Manual Override

With the help of push-switch, this sensor maybe over-ridden by the end-users to switch on/off the lights manually, or adjust the light brightness during motion hold-time. This makes the product more
user-friendly and offers more options to fit for extra-ordinary demands.
* Short push (<1s): on/off function;
ON → OFF: the light turns off immediately and cannot be lighten for a certain time (equals to hold time preset) even there is movement is detected. After this period, the sensor goes back to auto sensor mode.
OFF → ON: the light turns on 100% and goes to auto sensor mode, even when ambient
Lux level exceeds the daylight threshold.
Rotary switch preset (Please
see the location in 2. Installation) * Long push (>1s): adjust the target lux level by turning the light up or down. Both the
adjustment on remote control and push switch can overwrite each other,
the last adjustment remains in memory.
* If no end-user adjustment is desired, simply leave this terminal disconnected.
Daylight
threshold
Disable

5. Wiring Diagram

50Lux
50Lux
L
75Lux
100Lux N
200Lux
50Lux
75Lux
100Lux
200Lux
100Lux
200Lux
100Lux
200Lux
400Lux
100Lux
6. Detection Pattern
2
3m
Normal Electric Light
Daylight controlled light
Natural light
Radial movement 8m
Tangential movement 10m
24
Time (hrs)

7. Trouble Shooting

MALFUNCTION CAUSE REMEDY
The fixture does not light up
The fixture is always on
The fixture is on when it should not
HIR22-20230630-A1
Subject to change without notice.
L
N
LED Driver
P L' N N L
+
1-10V
-
1-10V
- +
———This product should be installed by a qualified electrician.
1
A
3m
Radial movement 4m
Tangential movement 5m
CAUSE
Incorrect daylight threshold setting
Faulty fixture
No power supply
Detection zone not targeted
Continued movement in the detection zone
Sudden change in temperature due to weather (wind, rain, snow) or air
expelled from fans, open windows
7
B
3m
Tangential movement 10m
REMEDY
Adjust daylight threshold setting
Replace fixture
Check power to sensor
Check detection area setting
Check detection area setting
Adjust zone, change installation site
HIR22-20230630-A1
