Kimball Office Definition Angled Desk Assembly Instructions

Definition
®

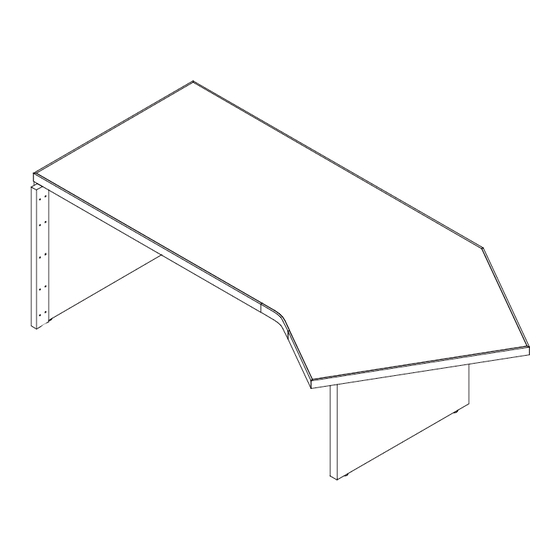

Angled Desk
Tools Required
Tape Measure
•
Cordless Drill
•
#2 Philips Head Bit
•
Hardware Required
#8 x 5/8" Panhead Flakeboard Screws
•
8 x 1 1/4" Panhead Flakeboard Screws
•
#8 x 1" Flathead Flakeboard Screws
•
L Brackets
•
Installation
As Free Standing Desk
1. Place worksurface on a clean soft surface, underside facing
up. The end panel should be positioned so the sides are
5/64" from the edge and side of the worksurface (Figure
A). Attach with brackets and screws provided (Figure B).
2. Modesty panel can be recessed 4" to 7" from the approach
side of the surface (Figure C). Attach with brackets provid-
ed (Figure B).
3. Attach support panel to worksurface and modesty panel
with brackets provided. Support can be located towards the
approach or user side as needed. (Figure D).
Figure A
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
2460918, Revision -
5/64"
5/64"
Assembly Instructions
Figure B
End Panel
Figure C
4" to 7"
Figure D
Support panel location
Worksuface
1
