Assembly Notes:
Norix is not responsible for any damage due to improper installation. If your shipment does not match the parts list, please contact Norix Customer Service at 800-234-4900.
Norix reserves the right to modify design specifications at any time without an obligation to owners of previously sold products.
___________________________________________________________________________________________________________________________________________________________________________________________________
ITEM NO. QTY. PART NUMBER
1 2 060-313-XX
2 1 060-317-XX
3 1 040-30XXX
4 14 021-001
5 6 021-051

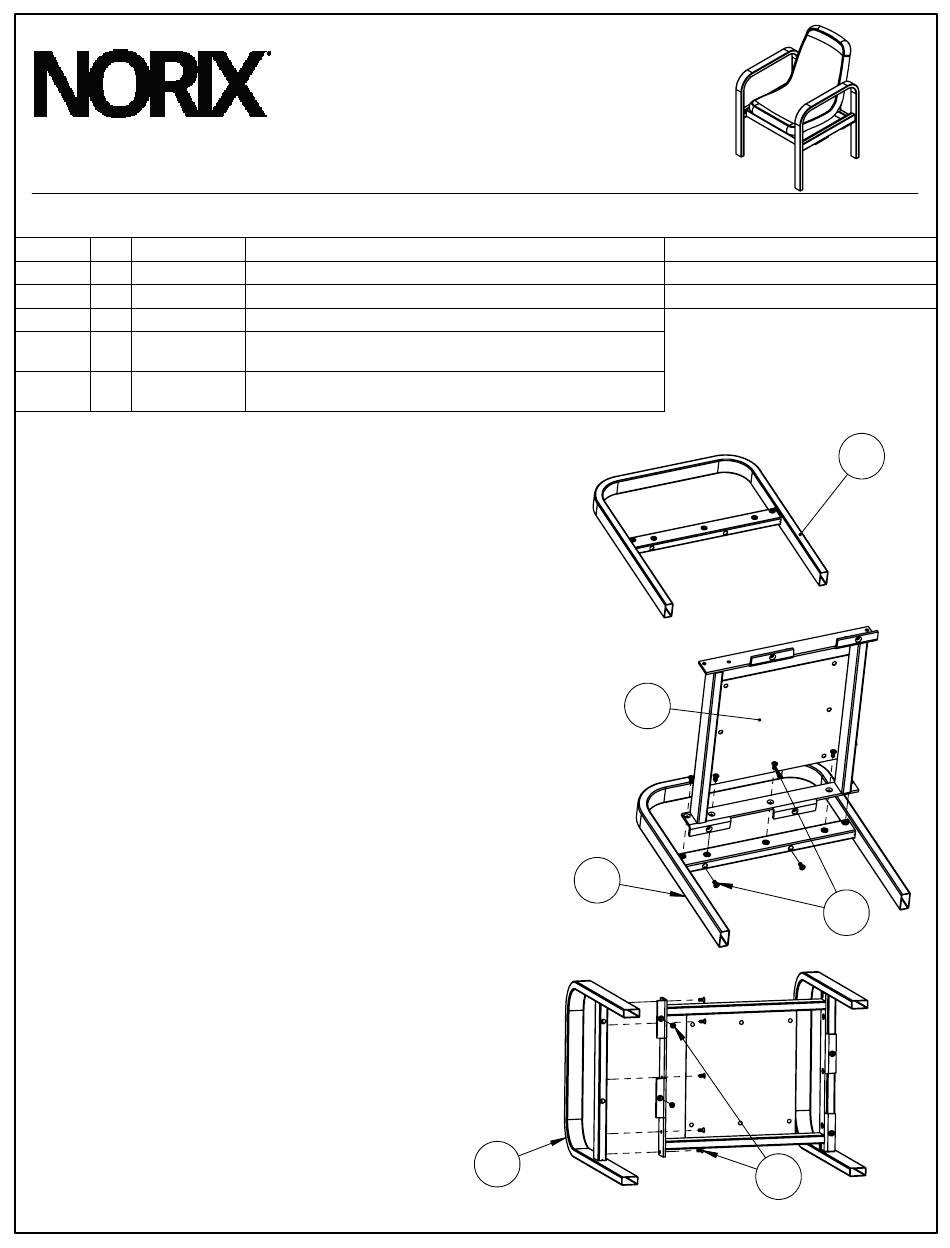

STEP 1. Carefully unpack all components and lay them
flat on a clean, non-abrasive surface. Confirming that
the screw holes are located on just one side of the
midrail, position one end arm flat (1), ensuring the
screw holes on the midrail are facing upward.
STEP 2. Align the seat frame(2) with the arm midrail on
the end arm (1), placing it so that the bent plates are
underneath and match the corresponding screw holes.
Secure the seat frame (2) to the middle support bar with
screws (4), starting with the middle screw and then
moving outward. Use 5 screws on the flat face and 2
screws on the underside of the bent plates.
STEP 3. Rotate the two-piece assembly 90 degrees
such that the solid tube of the seat frame faces
upwards, with the arm now positioned at the side.
Repeat Step 2 for the opposite arm (1).
Rev. A - 09/23/24
091-1052

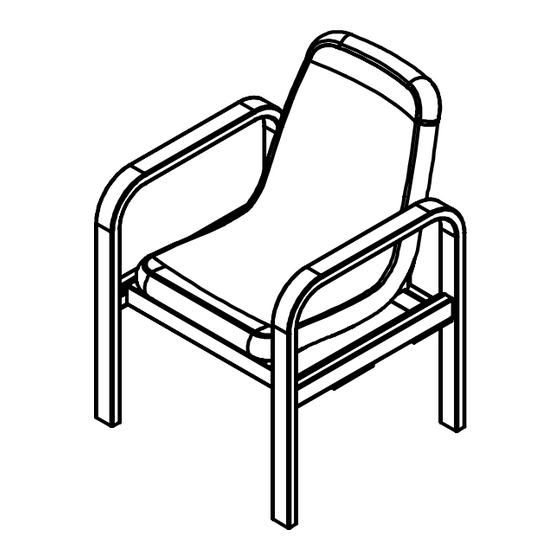

VersaFrame Single Seat
Assembly Instructions
Model Number
VFB1-XXX-XXXX
DESCRIPTION
STEEL FRAME, VERSAFRAME, END ARM
STEEL FRAME, VERSAFRAME, SEAT
BOULDER SEAT
SCREW, MACHINE 5/16"-18 X 5/8" L, FH, PIN IN
TORX® T40, BLACK OXIDE, THD. LK.
SCREW, MACHINE 5/16"-18 X 5/8" L, BH, PIN IN
TORX® T40, ZINC, THD. LK.
2
1
1
Tools Needed
Low RPM Variable Speed Drill
T-40 Torx® Bit
1
4
4
