Soundoff Signal ETSSVBK09 Quick Start Manual page 2

100J/100U SERIES SPEAKER BRACKET (NO DRILL) CAPABLE OF HOLDING UP TO TWO SPEAKERS FOR THE
FORD F-150 CIVILIAN VEHICLE ONLY (EXCLUDING F-150 RAPTOR) 2021 - 2022, HOOD LATCH MOUNT
ETSSVBK09
Fig. 1
DOUBLE 002SID29 (100J)
Fig. 2
1.800.338.7337 / www.soundoffsignal.com
2
SINGLE 002SID29 (100J)
Fig. 3
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
INSTALLATION:
1. This speaker bracket utilizes the two existing
fasteners for the hood latch mechanism. With the
hood open, remove the rubber shield covering the
area between the radiator and the grille. Next,
remove the front grille of the vehicle in order
to access the space in front of the radiator for
speaker bracket installation. Consult a Ford service
center for best disassembly method. Keep all
hardware.
2. Attach a compatible speaker and bail bracket to
the speaker bracket using the provided ¼-20 hex
bolts and nuts. Tighten to 10 ft-lb. The speaker
bracket can hold a maximum of two speakers. See

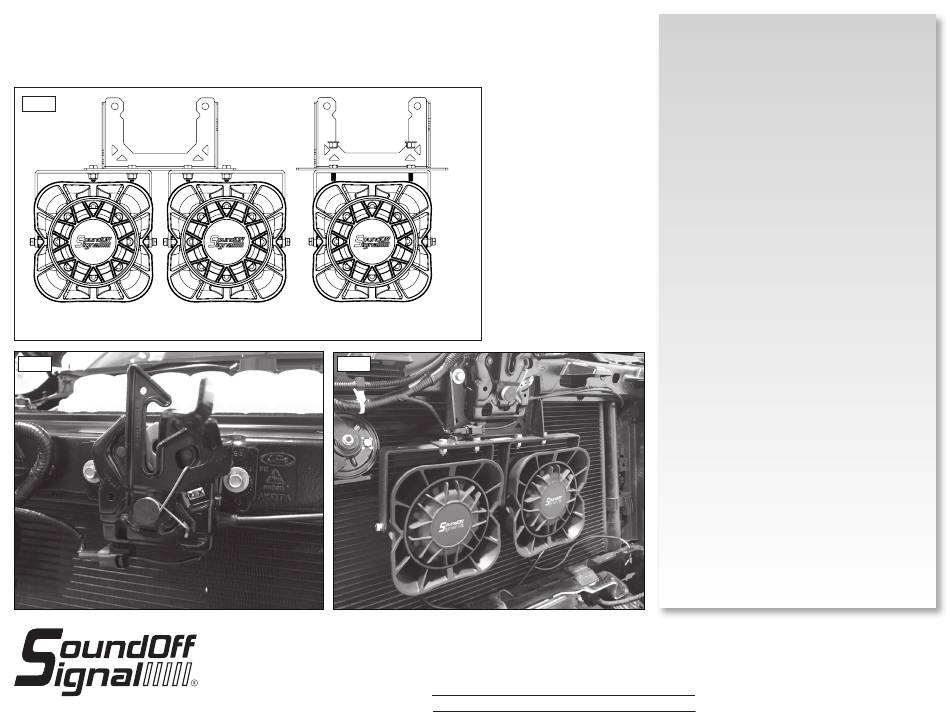

Fig. 1 for common configurations.
3. Locate and remove the two fasteners for the hood
latch assembly, as shown in Fig. 2.
4. With the hood latch assembly still in its original
position, carefully insert the speaker bracket
assembly into the space in front of the radiator.
Attach the speaker bracket to the vehicle using
the two hood latch assembly fasteners, as shown
in Fig. 3. Ensure that the existing wire harness
and hood latch release cable are properly routed
in the bracket cutouts. Tighten to manufacturer's
specifications.
5. Adjust each speaker so that the speakers are
in-line with the bail brackets. Tighten the fasteners
attaching the speakers to the bail brackets in order
to prevent the speaker from pivoting.
6. Ensure that the speakers are connected to a power
source. Check proper functionality.
7. Reinstall the front grill and the rubber shield
according to manufacturer's specifications.
ETSSVBK09 0622 REV B
