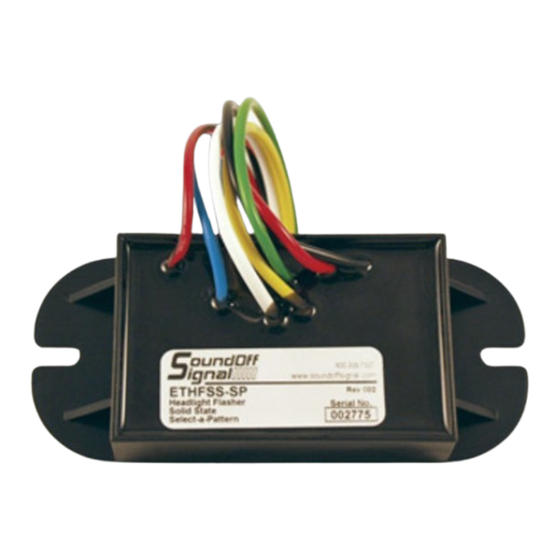

Soundoff Signal ETHFSS-CV Quick Start Manual

FORD CROWN VICTORIA POLICE
INTERCEPTOR SELECT-A-PATTERN
PLUG-IN HEADLIGHT FLASHER
(2006 and NEWER)
ETHFSS-CV

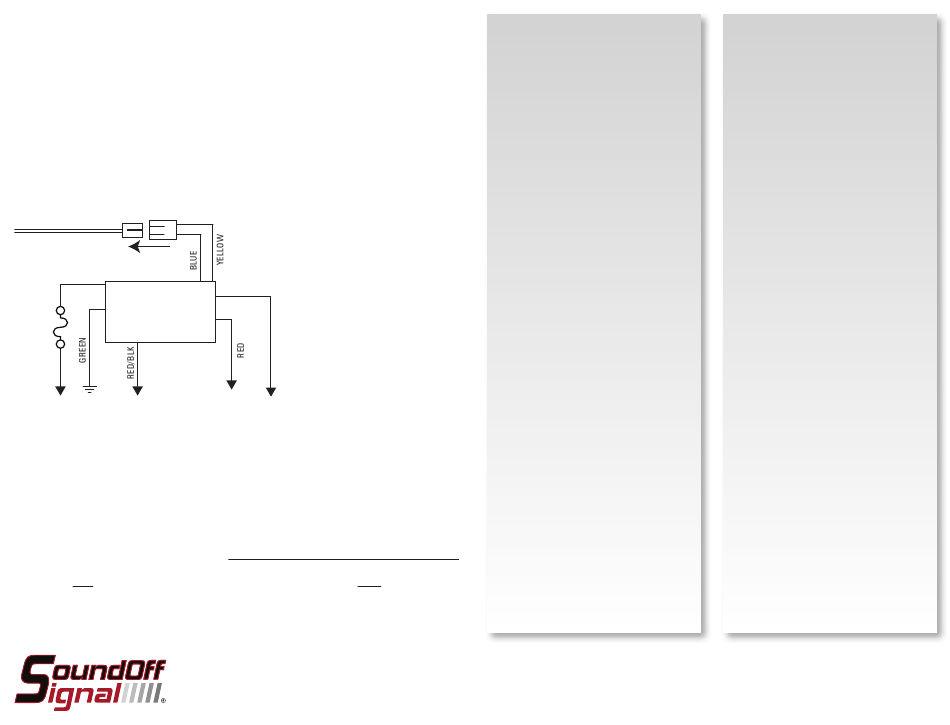

MATING
CONNECTORS
VEHICLE HARNESS
WHITE
FLASHER
15 AMP
FUSE
CONTROL
SWITCH
+9-30Vdc PATTERN CHANGE
Important Information:
• NOTE: Do NOT use on 2005 and older vehicles. Use flasher #ETHIFPØ ONLY.
Please see reverse for Technical Specifications
BLACK
TO PARKING
LIGHT WIRE
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the "Warranty & Returns"
link along the left column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to
skip the automated message. Questions or comments that do not require immediate attention may be emailed to techsupport@soundoffsignal.com.
1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!
Congratulations! You are now the proud
owner of the most technically advanced
true 100% Solid State Selectable Pattern
Headlight Flasher System in the market
today. Add to it our never ending
commitment to quality, when properly
installed this new Flasher System will
provide you with years of dependable
trouble free service.
When used at night, the low beam
headlights remain ON for proper illumination
while the high beams flash to gain attention
and increase the vehicle's visibility. When
the dimmer switch is activated to high
beam, the flasher system's "High beam
over-ride" interrupts the flasher sequence to
allow normal high beam function. Flashing
automatically resumes when the dimmer
switch is de-activated.
Note:
Flashing Headlight and Taillight Systems
are intended for approved vehicles only.
The user of this system is responsible to
ensure compliance to any Federal, State or
Municipal regulations, which may apply.
Mounting:
The enclosed headlight flasher has been
designed to be water resistant. However, to
ensure years of trouble free operation of the
flasher system, it should be mounted in a
location that is protected from direct water
spray and high temperatures.
Electrical Installation:
1. Locate the 3 pin connector in front of the
radiator under the cross brace.
2. Remove the loop connector and store for
future use if flasher is ever removed from
vehicle.
3. Carefully route the 2 wire harness
(YELLOW and BLUE WIRES) with the
connector to the vehicle's mating connector
making sure the harness will not interfere
with the moving vehicle components and
will not get damaged in field operation.
Connect flasher with mating vehicle
connector.
4. Connect the GREEN WIRE to a reliable
ground, preferably close to ground post of
battery.
5. Connect the WHITE WIRE to a +8-30Vdc
power source capable of providing 12Amps
through a 20A fuse.
WARNING:
DO NOT USE A CIRCUIT BREAKER,
FUSIBLE LINK, OR SLOW BLOW TYPE
FUSE.
6. Connect the RED WIRE to a powered
switch through a user supplied 1 amp fuse.
7. (Optional) If an "Automatic Night time
Flasher Disable" is required (check with
state and municipal regulations) simply "T"
tap the black wire into the parking/marker
light wire. This feature will disable the
flasher whenever the parking/marker lights
are turned ON.
ETHFSS-CV 4.09
