INTRODUCTION
The enclosed light bar is a high intensity traffic Directing
Warning Bar that is compact enough to be mounted almost
anywhere. The light bar offers 8 high intensity sealed LED
warning modules while consuming less than 3 amps.
The light bar comes complete with two directional
patterns: "Solid Arrow-Right" and "Solid Arrow-Left" plus a
"Center Out" warning pattern.
SPECIFICATIONS
Input Voltage
Polarity
Operating Temperatures
(+) Battery Fuse
Output Drive Capability (total)
Dimensions:
Cable Length:
WARNING
These lights are intended to be operated by
authorized personnel and used as "SECONDARY"
warning only. It is the user's responsibility to under-
stand and obey all laws reguarding emergency
warning devices.
Installation and Mounting
WARNING
• Do Not use insulation displacement connectors
(e.g. 3M ScotchLock type connectors).
• Use ATO blade type fuses ONLY!
• Place fuse as CLOSE to power take off point as
possible.
NOTE: Before mounting bar, consideration
should be given to cable length, routing, and
control switch placement.
ECONOMY LED DIRECTIONAL BAR
ETTMLEC08
11-16 Vdc
Negative ground only
o o
-30 C to +65 C
5 Ampere ATO type
8 LED Modules
Height: 2.625"
Length: 42"
Depth: 3.3"
15 ft.
INSTALLATION AND MOUNTING
1. Select and assemble the adjustable "L" Bracket that fits
your specific need. (See figure 1)
Standard Bracket - recommended for rear
deck and light bar mounting.
Heavy Duty Bracket - for use when light
bar will be subjected to high winds, vibration and/or severe
stress.
FLAT WASHER
LOCK WASHER
NUT
BOLT
(5x15mm)
Standard Bracket

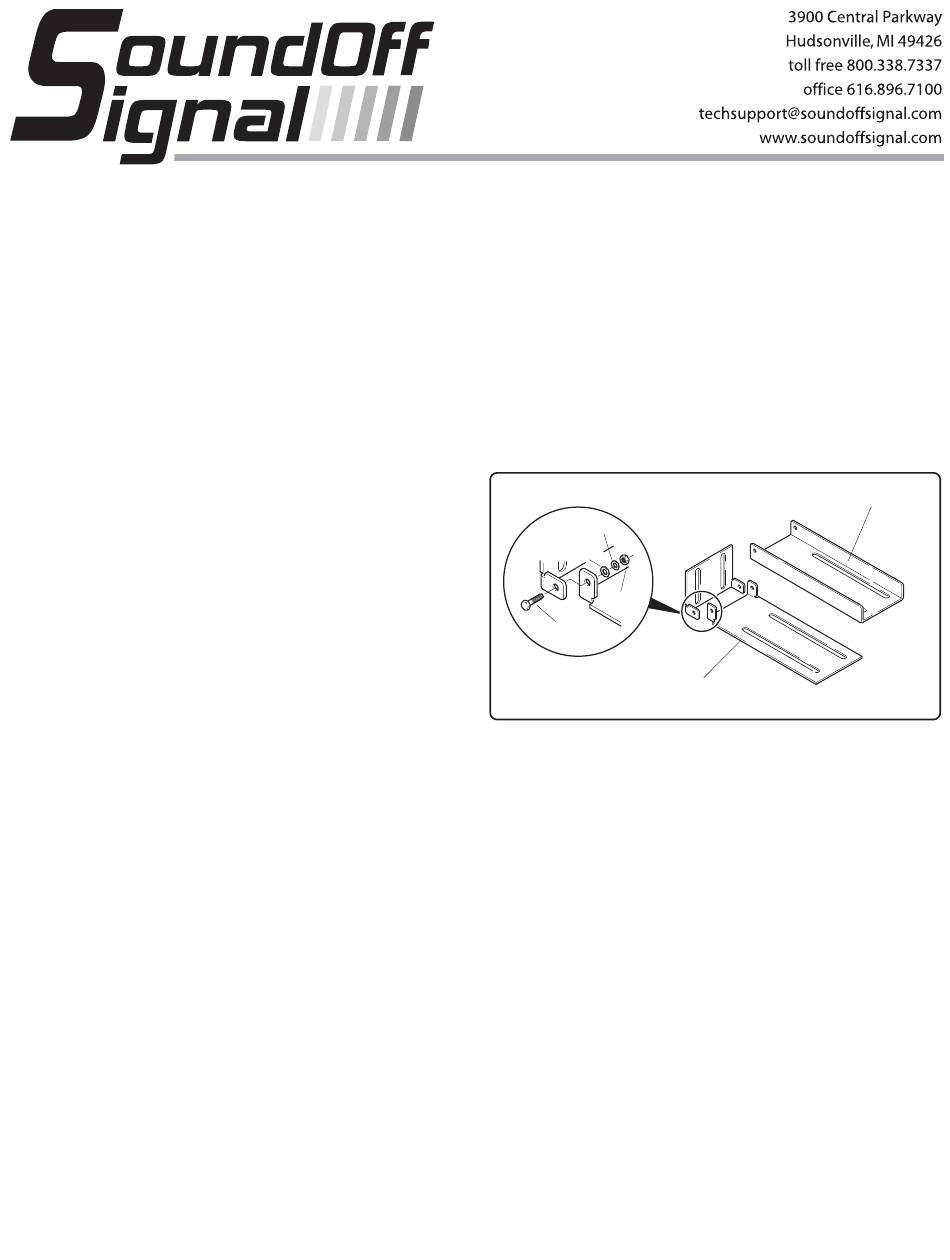

Figure 1. "L" Bracket Assembly
2. Connect "L" Bracket to back of light bar using the 5mm
nuts and bolts provided. Adjust "L" Bracket for proper height,
position, and angle and secure by tightening all nuts and
bolts.
3. Mount the light bar to desired location, with user
supplied nuts and bolts.
CAUTION: Drilling holes can damage unseen parts. Make
sure all areas around drill hole are clear.
Heavy Duty Bracket
