Soundoff Signal nERGY ETSA200R-PA Quick Start Manual

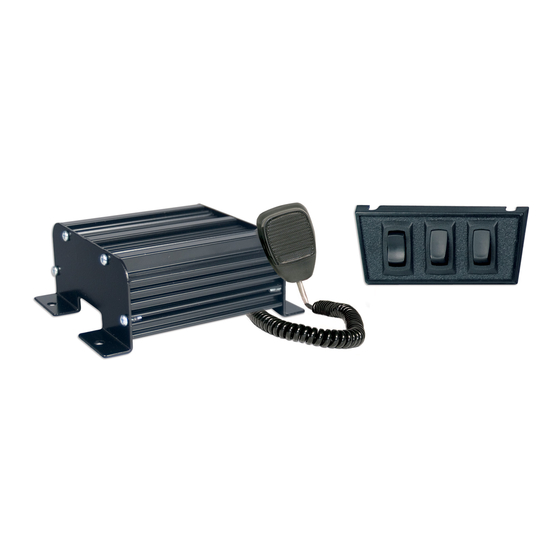

200R SIREN w/PA PRE-AMP
PART NUMBERS:
ETSA200R-PA
ETSA200RA-PA
ETSA200RW-PA
Tech Specs
Input Voltage: 10-16Vdc (Negative Ground)
1x 3 Pin Microphone (Ground, PTT Input, Audio in)
1x 4 Pin Audio (Ground, +V, Audio Out, PTT Output)
Connectors:
1x 8 Pin RJ45 CTRL PNL
1x 8 Pin RJ45 CENTRAL
Reverse Polarity
Short Circuit
Protection:
Over Current
Transient
Operating Temp: -40˚C to + 110˚F
Dimensions: 3.5" x 3.5" x .8"
Audio Frequency: 200Hz-10Khz
Standby Current: <5 mA
Important Information:
• Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances.
These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to your vehicle
Owner's Manual for the location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.
Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances. These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these devices to ensure compliance.
1.800.338.7337 / www.soundoffsignal.com
1.
200R SIREN W/PA PRE-AMP
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/sales-support.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the automated message).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
OPERATION:
Depressing the PTT switch on the PA
Microphone will activate the PA function
of the 200R Siren amplifier. Releasing the
PTT switch on the PA Microphone will
disable the PA function and siren amplifier
will return to previous function.
WARNING
!
Sirens produce loud sounds that
may damage hearing:
- Roll up windows.
- Wear hearing protection.
- Use only for emergency response.
- Avoid exposure to siren sound
outside of vehicle.
Package Contents:
1 PA Pre-Amplifier
1 Microphone w/Mounting Clip
& Hardware
1 4 Wire Cable
IMPORTANT INFORMATION:
INSTALLATION:
1. Securely mount the PA Pre-Amplifier in a dry location
inside vehicle
2. Plug 4 wire cable into 4 pin connector on PA
Pre-Amplifier
3. Plug microphone into 3 pin connector on PA Pre-
Amplifier
4. Route 4 wire cable to 200R Siren Amplifier
5. 4 Wire PA Pre-Amplifier connections:
a. Black wire and shield: tap into black wire of 200R Siren
Amplifier or connect to reliable ground near siren
amplifier ground
b. Red wire: tap into 200R sire amplifier orange wire
c. White wire: Connect to the White/Red wire of 200R
siren amplifier
d. Green Wire:
i. If Radio Rebroadcast function is not required:
connect to the Grey wire of the 200R siren amplifier
ii. If Radio Rebroadcast
function is required:
1. Connect Grey Wire of 200R siren amplifier to
a common terminal of SPDT (single pole/
double throw) switch
2. Connect White wire from 4 wire cable to
the terminal of the switch which makes
contact with the common terminal when
.
switch is the off position
3. Connect the other terminal of the switch to
+10-16Vdc to activate Radio Rebroadcast
function when the switch is in the ON position
e. Orange/Black Wire:
1. Connect Orange/Black wire to ignition
switch. +Vdc is required on Orange/Black
wire for siren to operate.
6. Adjust the Audio Gain potentiometer on the PA Pre-
Amplifier to obtain desired speaker output level for PA
function
7. Dip Switch configuration on PA Pre-Amplifier
a. Dip Switch #1: ON Position
b. Dip Switch #2: OFF Position
ETSA200R(x)-PA 0618
