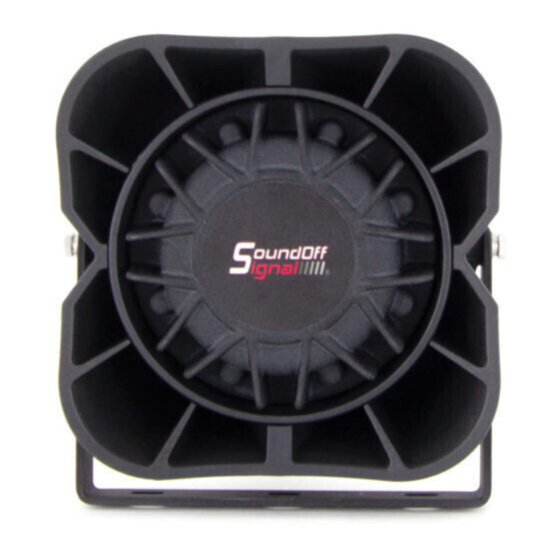

DODGE CHARGER SPEAKER BRACKET
ETSS100CBKDC11 (for 2011-2021 model year)
ASSEMBLY SHOWN IS REPRESENTATIVE ONLY. EACH
SPEAKER IS SLIGHTLY DIFFERENT AND INSTALLER IS
RESPONSIBLE FOR SECURE MOUNTING IN BRACKET.
Fig. 1
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and fire. Follow crimp connector
manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
FOR 100C,100N and 100J SPEAKERS ONLY.
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
INSTALL BRACKET
ON THE IMPACT
BAR SO THAT
SPEAKER WILL
FACE FORWARD.
OFFSET SPEAKER
FOR BEST SOUND
TRANSPARENCY.
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N

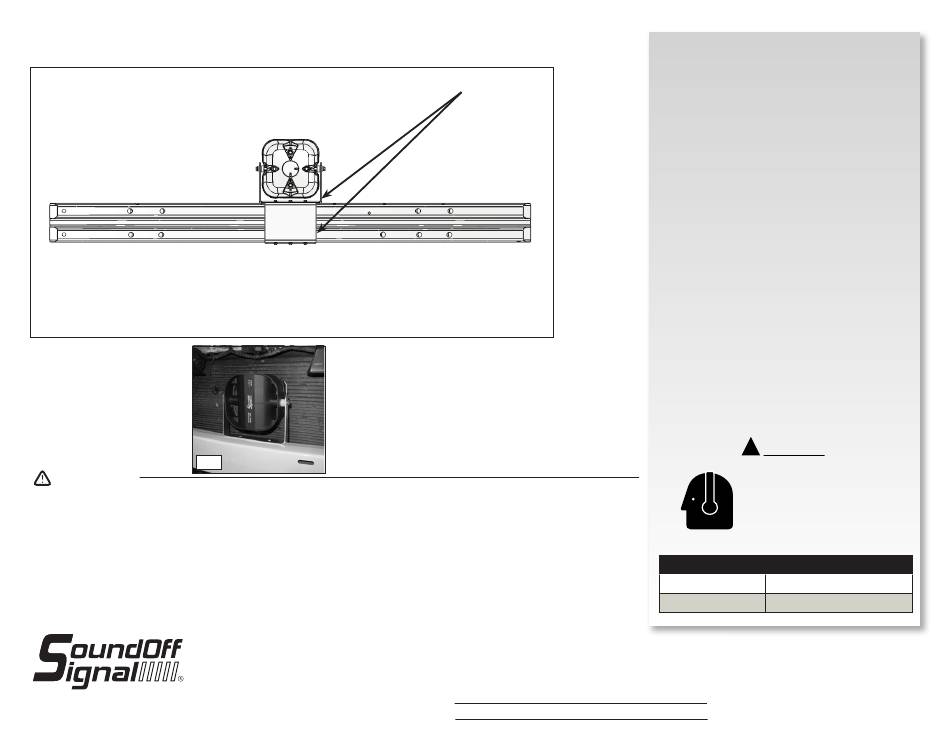

INSTALLATION:
1) Front bumper cover assembly must be removed
to install speaker bracket. Assembly should be
removed as one piece and not individually. Consult
a local Chrylser service center for best disassembly
method. Keep all hardware.
2) Place the bracket in the position desired and mark
hole locations.
Note: Mount speaker off-center so that it has the
least grill material in front of it. This will ensure
the best performance.
3) If desired, drill pilot holes in impact bar (see #4
below for explanation).
4) Fasten bracket to cross-beam with 6 #10-16x3/4"
self-drilling screws with 5/16" hex head. Screws do
not need pilot holes but may be used if desired. DO
NOT OVER-TIGHTEN screws as this may strip out
holes.
5) Install speaker using the appropriate hardware.
6) Wire speaker to siren output and test.
7) Re-install front bumper cover assembly using
previously removed hardware.
Note: It is recommended that the front bumper
cover assembly be removed for access to front
beam as shown in Fig 1. For complete explanation
of disassembly, contact a local Chrysler service
center.
!
WARNING
Sirens produce loud sounds that
may damage hearing
I
Roll up windows
I
Wear hearing protection
I
Use only for emergency response
I
Avoid exposure to siren sound
outside of vehicle
