Soundoff Signal ETSSVBK04 Manual

100N/100J SERIES SPEAKER BRACKET (ONLY), GRILLE MOUNT
FORD F-150 2018 - 2020
ETSSVBK04

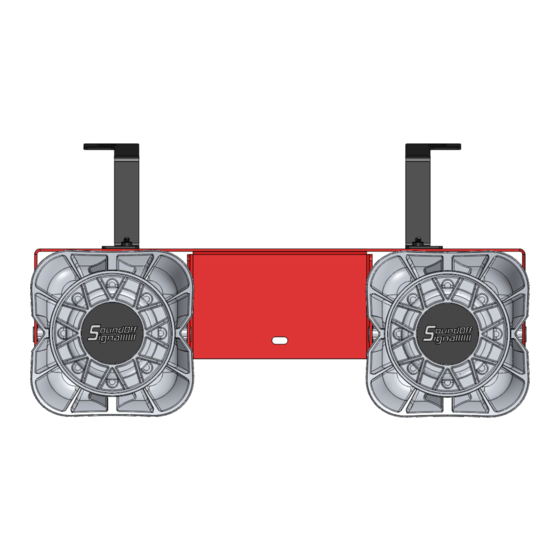

FIG. 1
ETSSVBK04 PICTURED WITH ETSS100J SPEAKERS
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and
fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's
Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local
chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
INTRODUCTION:
CONTAINS
QTY COMPONENT
1 Driver's side hanging bracket
1 Passenger's side hanging bracket
1 Speaker holding bracket
2 ¼-20 1" Length Hex Bolt
6 ¼" Flat Washers
2 ¼" Split lock washer
1 Installation Instruction sheet
1 Product Warning Card
*Speaker Sold Separately
ETSSVBK04 0220
