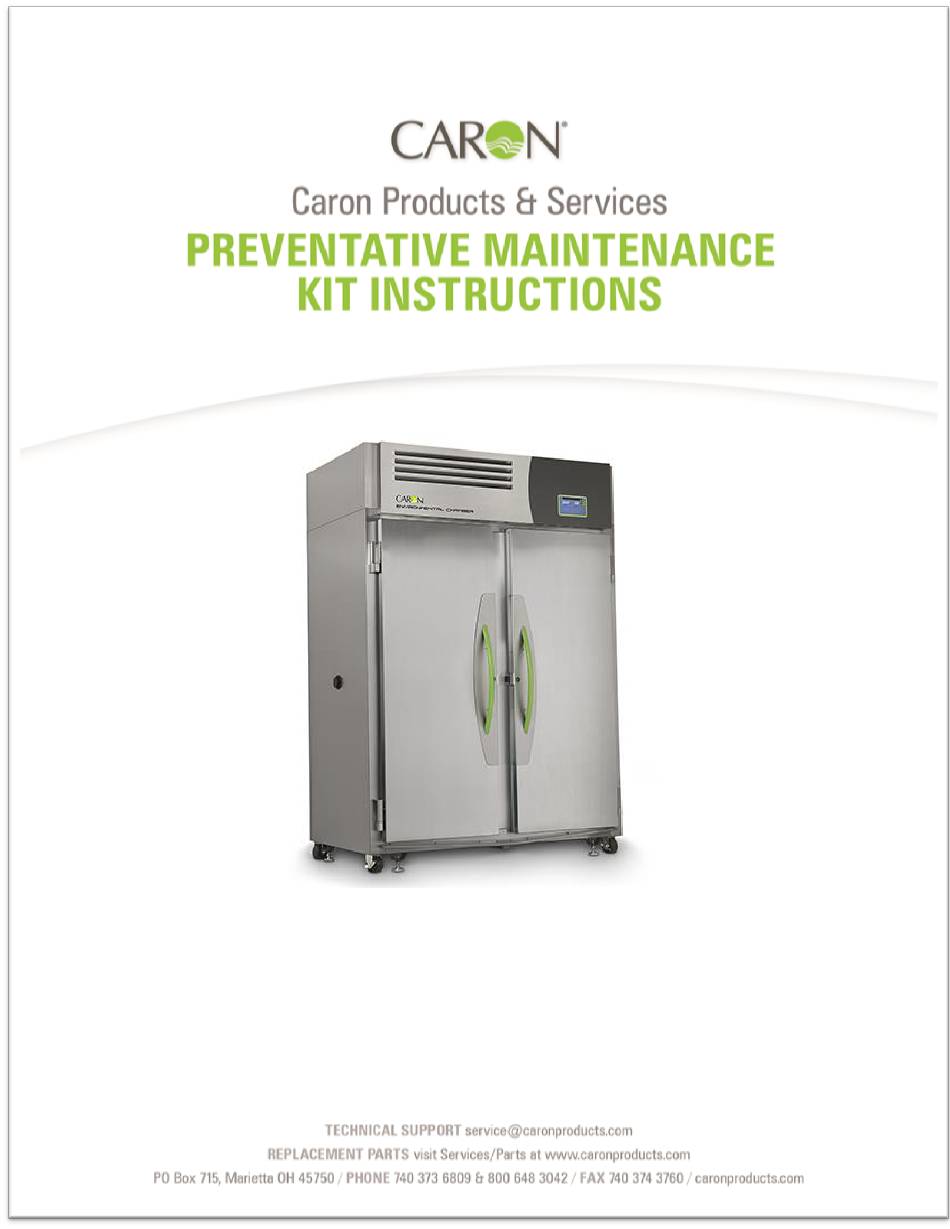

- Page 1 MODEL 7000-50 INST-PM-7000-50...
- Page 2 Revision Log Revisions Description Letter Date 10-12-2016 Initial release. New cover. 04-03-2018...
-
Page 3: Replacing Air Filter
INSTRUCTIONS FOR REPLACING AIR FILTER AND ATOMIZERS IN MODEL 7000-50 Parts Required: (1) Air Filter, (4) Velcro Discs, (2) Atomizers Tools Required: Ladder, Phillips Screwdriver, (2) 8″ Crescent Wrenches Parts included in Preventative Maintenance Kit for Model 7000-50 are shown below. Atomizers Velcro Discs Air Filter REPLACING AIR FILTER Note: Photos may have a different appearance depending on chamber options. - Page 4 Velcro Disc Locations 6. Center new air filter with condenser edges as shown below and press into place with cardboard side towards condenser. Note: Once adhesive has touched air filter it cannot be adjusted. INST-PM-7000-50 Rev B 04/03/2018...
- Page 5 Note: Photos may have a different appearance depending on chamber options. 1. Remove (5) screws on electrical access panel using Phillips screwdriver as shown below. Note: Retain screws. Electrical Access Panel Screws Electrical Access Panel Screws INST-PM-7000-50 Rev B 04/03/2018...
- Page 6 3. Remove (5) screws on refrigeration access panel by using Phillips screwdriver as shown below. Note: Retain screws. Refrigeration Access Panel Screws Refrigeration Access Panel Screws 4. Remove refrigeration access panel by sliding towards center of chamber until (2) tabs on right side are released. INST-PM-7000-50 Rev B 04/03/2018...
- Page 7 6. Disengage (7) latches on plenum lid by folding down and turning counterclockwise until latch is released as shown below. Note: Turn each latch clockwise to close after releasing catch before removing plenum lid. Plenum Lid Latches INST-PM-7000-50 Rev B 04/03/2018...
- Page 8 17. Continue to instructions for replacing additional accessory preventative maintenance items if applicable or plug in power cord and turn on chamber. 18. Reset air filter and atomizer alerts by pressing Settings button on right side of Home screen as shown below. Settings Button INST-PM-7000-50 Rev B 04/03/2018...
- Page 9 19. Press Maint. button as shown below. Maint. Button 20. Press Reset buttons for Replace air filter and Replace atomizers as shown below. Reset Button 21. Press Home button as shown below. Home Button INST-PM-7000-50 Rev B 04/03/2018...
