MAN#650247

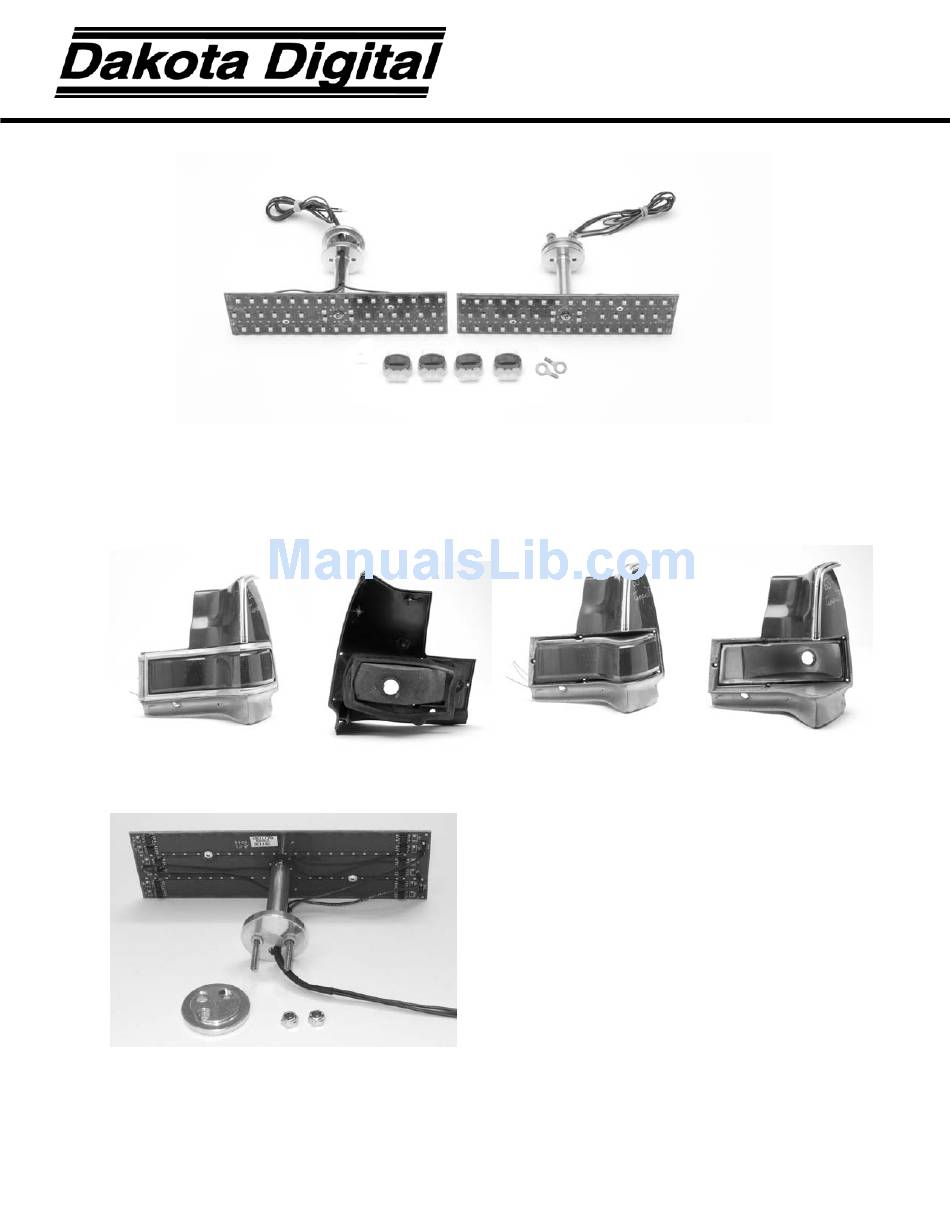

Kit Includes:
Installation:
1. Remove the chrome tail light cover. There are four nuts on the back side of the housing.
2. Remove the tail light lens.
3. Remove the light bulb
4. Remove the original bulb connector from the back side of the housing.
5. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is
recommended.
6. Remove the lock nuts and aluminum back plate from the back of the new LED assembly.
INSTALLATION INSTRUCTIONS
LAT-NR410

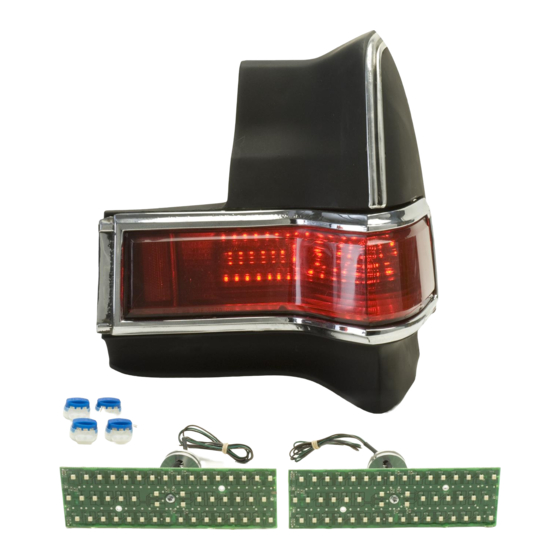

LED Tail Lights for 1965 GTO and Tempest
Advertisement
Related Manuals for Dakota Digital LED Tail Lights LAT-NR410
Summary of Contents for Dakota Digital LED Tail Lights LAT-NR410
- Page 1 MAN#650247 Kit Includes: Installation: 1. Remove the chrome tail light cover. There are four nuts on the back side of the housing. 2. Remove the tail light lens. 3. Remove the light bulb 4. Remove the original bulb connector from the back side of the housing. 5.
- Page 2 7. Insert the new LED assembly through the hole where the original bulb and connector were. Use caution when feeding the wires through to avoid damaging the wire insulation. 8. Feed the wires through the large hole in the back plate and attach the back plate onto the back side of the housing.
-
Page 3: Service And Repair
This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
