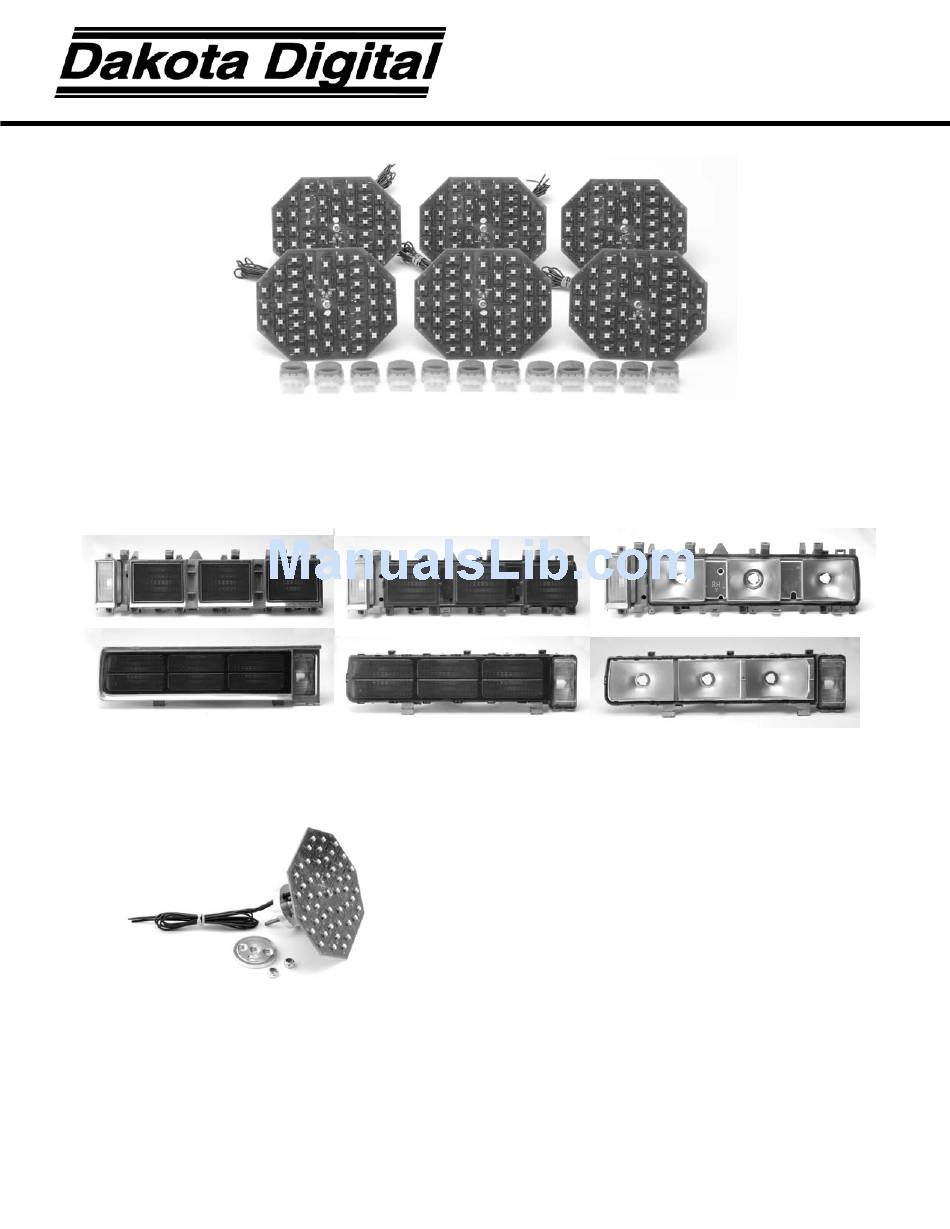

MAN#650235 rev. B

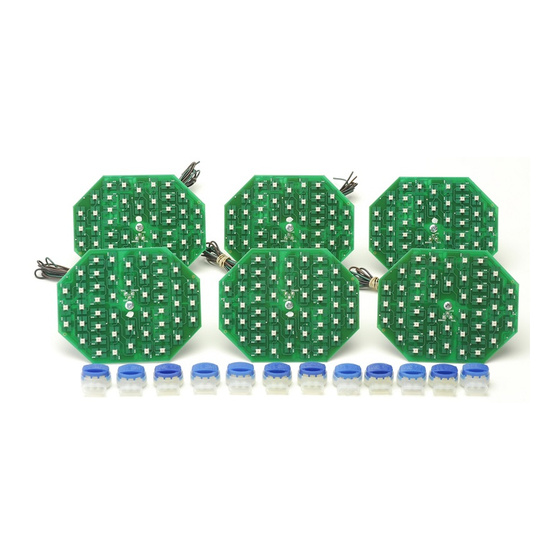

Kit Includes:
Installation:
1. Remove the original bulb connector from the back side of the housing.
2. Remove the tail light housing from the car.
3. Remove any body trim from the housing so the screws holding the lens on are exposed.
4. Remove the tail light lens.
5. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is
recommended.
6. Remove the lock nuts and aluminum back plate from the back of the new LED assembly.
INSTALLATION INSTRUCTIONS
LAT-NR402
LED Tail Lights for 1980-90 Caprice, 1986-90 Impala
1983-84 Pontiac Parisienne
MAN#650235 :B
Advertisement
Related Manuals for Dakota Digital LAT-NR402
Summary of Contents for Dakota Digital LAT-NR402
- Page 1 5. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is recommended. 6. Remove the lock nuts and aluminum back plate from the back of the new LED assembly. INSTALLATION INSTRUCTIONS LAT-NR402 LED Tail Lights for 1980-90 Caprice, 1986-90 Impala 1983-84 Pontiac Parisienne MAN#650235 :B...
- Page 2 7. Insert the new LED assembly through the hole where the original bulb and connector were. Use caution when feeding the wires through to avoid damaging the wire insulation. 8. Feed the wires through the large hole in the back plate and attach the back plate onto the back side of the housing.
- Page 3 This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
