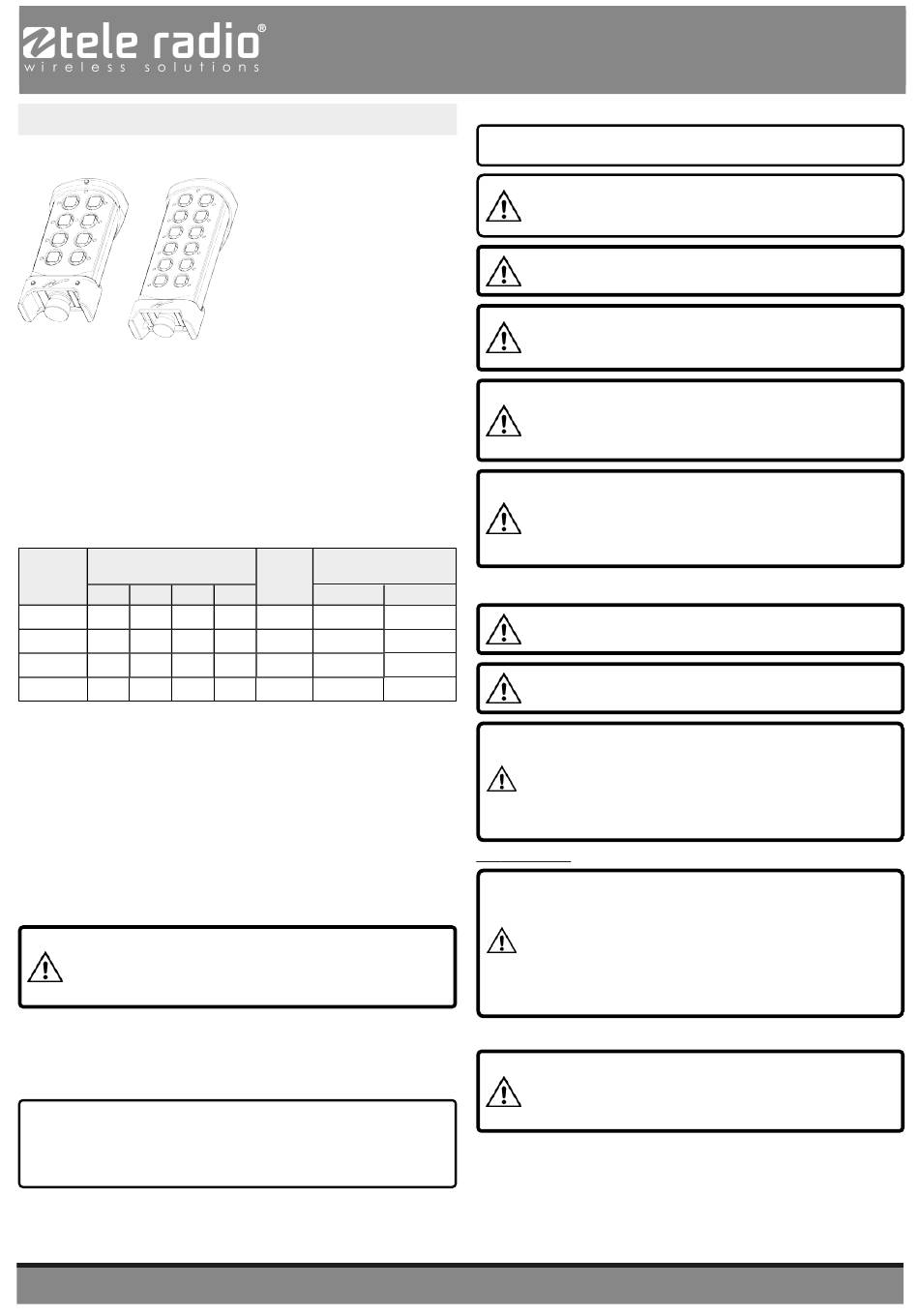

Tele Radio T9-01 Safety Sheet

G E N E R A L I N F O R M A T I O N
T r a n s m i t t e r s – T 9 - 0 1 , T 9 - 1 1 , T 1 1 - 0 5 , T 1 1 - 1 5 –
A b o u t T i g e r T G 2 s y s t e m s
The Tiger TG2 product range is composed of transmitters and receivers
intended for use together as a system in complex lifting applications such
as cranes, OHT cranes and electric hoists or mobile applications.
ABOUT T9/T11 TRANSMITTERS
T9/T11 transmitters have simplex communication with support for duplex.
T9/T11 transmitters are compatible with all R4, R9 and R10 receivers within
the same frequency range.

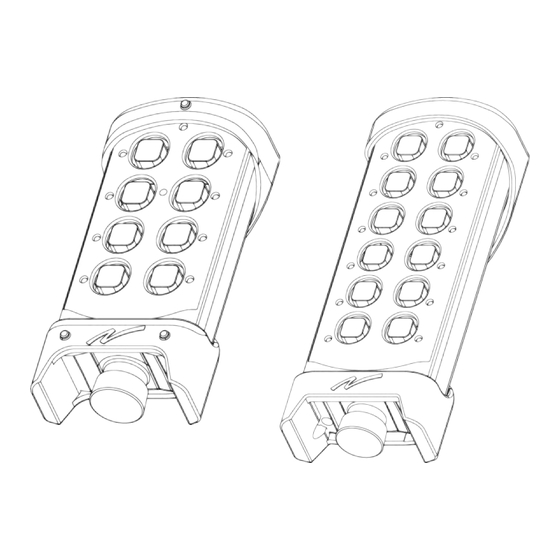

OVERVIEW OF THE AVAILABLE MODELS
Step buttons transmitters
Number of buttons
Model
6 8 10
T9-01
●
T9-11
●
T11-05
T11-15
●
Standard – Not available
A b o u t t h i s d o c u m e n t
Every care has been taken in the preparation of this document. Please
inform Tele Radio AB of any inaccuracies or omissions. This document
covers general safety issues, main technical specifications, guarantee,
service and maintenance, battery and regulatory information. For more
information, please refer to the End user instructions and the Installation
instructions available on www.tele-radio.com. Images shown in this
document are for illustrative purposes only.
W a r n i n g s & r e s t r i c t i o n s
Carefully read through the following safety instructions before
proceeding with the installation, configuration, operation, or
maintenance of the product. Failure to follow these warnings
could result in death or serious injury.
This product must not be operated without having read and understood the
Safety information sheet and having received the appropriate training. The
purchaser of this product has been instructed how to handle the system
safely. The following information is intended for use as a complement to
applicable local regulations and standards.
IMPORTANT! Tele Radio remote controls are often built into wider
applications. These systems should be equipped with:
• a wired emergency stop where necessary
• a brake
• an audible or visual warning signal
SI-TG2-TX101-EN-v04
Available frequencies
Display
12 433 MHz 915 MHz
–
●
–
–
● ●
–
●
S
A F E T Y I N F O R M A T I O N S H E E T
INSTALLATION AND COMMISSIONING
IMPORTANT! Only licensed or qualified personnel should be permitted
to install the product.
This radio system must not be used in areas where there is
a risk of explosion.
Always switch off all electrical power from the equipment
before installation procedure.
To utilize the safety features of the system, use the stop
relays in the safety circuitry of the object/ equipment to be
controlled.
When the equipment controlled by the receiver's standard
relays is connected via the stop relays, make sure that the
maximum current through the stop relays is still within the
specifications. Contact your representative for assistance.
RISK OF UNINTENDED EQUIPMENT OPERATION
Only transmitters that are intended for use should be
registered in the receiver.
Failure to follow these instructions could result in death,
serious injury, or equipment damage.
OPERATION
This equipment is not suitable for use in locations where
children are likely to be present.
●
Only qualified personnel should be permitted to access the
●
transmitter and operate the equipment.
Make sure that the user satisfies the age requirements in
l
your country for operating the equipment.
Make sure that the user is not under the influence of
l
drugs, alcohol and medications.
Make sure that the user knows and follows operating and
l
maintenance instructions as well as all applicable safety
procedures and requirements.
The user should:
Always test the transmitter stop button before operating
l
it.This test should be done on each shift, without a load.
Never use a transmitter if the stop button is mechanically
l
damaged.Contact your supervisor or representative for
service immediately.
Never leave the transmitter unattended.
l
Always switch the transmitter off when not in use. Store
l
in a safe place.
Keep a clear view of the work area at all times.
l
MAINTENANCE
Before maintenance intervention on any remote controlled
equipments:
• always remove all electrical power from the equipment.
• always follow lockout procedures.
Keep the safety information for future reference. Always download the
l
Safety information sheet from our website, www.tele-radio.com, for
the latest available version.
If error messages are shown, it is very important to find out what
l
caused them. Contact your representative for help.
TRANSMITTERS
1/4
