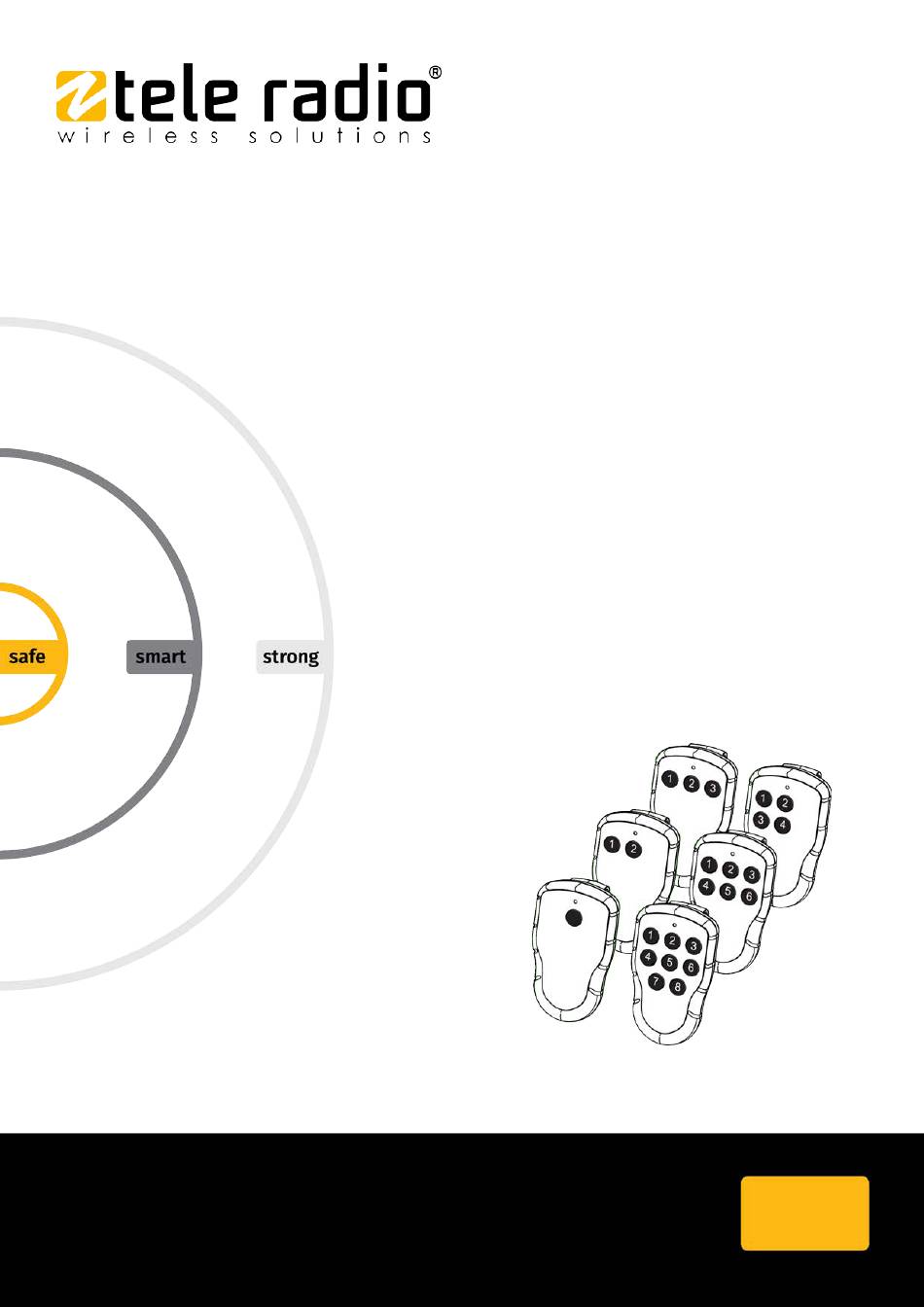

- Page 1 INSTALLATION INSTRUCTIONS Transmitters: T60TX-0*STL, T60TX-0*STL-US (*= 1, 2, 3, 4, 6 or 8 depending on the number of buttons on the transmitter) IM-T20T60-TX102-CERT-v02 T 6 0 Language: English (original)
- Page 2 IMPORTANT! This document is intended for T60TX-0xSTL/-STL-US transmitters with software versions: SW0048-01 or higher (T60TX-01STL/-01STL-US); SW0048-02 or higher (T60TX- 04STL/-04STL-US); SW0048-03 or higher (T60TX-02STL/-02STL-US, T60TX- 03STL/-03STL-US, T60TX-06STL/-06STL-US, T60TX-08STL/-08STL-US). ©Tele-Radio i Lysekil AB August Barks gata 30A SE-421 32 Västra Frölunda Sweden Phone: +46 (0)31 748 54 60...
-
Page 3: Table Of Contents
C O N T E N T S CHAPTER 1: INTRODUCTION 1.1 About this document 1.2 About T60 transmitters CHAPTER 2: SAFETY 2.1 Warnings & restrictions CHAPTER 2: TECHNICAL DATA 2.2 Radio transmission CHAPTER 3: PRODUCT GENERAL DESCRIPTION 3.1 T60TX-0*STL, T60TX-0*STL-US transmitters CHAPTER 3: PROGRAM ADJUSTABLE ID CODE WITH THE DIP-SWITCH CHAPTER 4: BATTERY 4.1 Battery precautions 4.2 Change the batteries... -
Page 4: Chapter 1: Introduction
These Installation instructions have been published by Tele Radio and are not subject to any guarantees. The Installation instructions may be withdrawn or revised by Tele Radio at any time and without further notice. Corrections and updates will be added to the latest version of the manual. Always download the Installation instructions from our website, www.tele-radio.com, for the latest... - Page 5 Tele Radio products are covered by a warranty against material, construction, or manufacturing faults. See "Chapter 5: Warranty, service, repairs, and maintenance". IM-T20T60-TX102-CERT-v02...
-
Page 6: About This Document
1 . 1 A b o u t t h i s d o c u m e n t Before installing or operating the product, read the corresponding documentation carefully. Tele Radio's product range is composed of transmitters, receivers, and accessories intended for use together as a system. These Installation instructions cover general safety issues, main technical specifications, standard installation, configuration and operating instructions, and battery information. -
Page 7: About T60 Transmitters
1 . 2 A b o u t T 6 0 t r a n s m i t t e r s T60 transmitters have simplex communication and work in discontinuous mode NOTE: *= 1, 2, 3, 4, 6 or 8 depending on the number of buttons on the transmitter. Perfect for control of doors, ports and gates in heavy industrial environments, and for mobile applications. -
Page 8: Chapter 2: Safety
The following information is intended for use as a complement to applicable local regulations and standards. IMPORTANT! Tele Radio remote controls are often built into wider applications. These systems should be equipped with: • a wired emergency stop where necessary •... - Page 9 RISK OF UNINTENDED EQUIPMENT OPERATION Only transmitters that are intended for use should be registered in the receiver. Failure to follow these instructions could result in death, serious injury, or equipment damage. RISK OF ELECTRIC SHOCK The receiver must only be opened by qualified installers or authorized personnel.
- Page 10 2 . 1 . 3 M A I N T E N A N C E Before maintenance intervention on any remote controlled equipments: • always remove all electrical power from the equipment. • always follow lockout procedures. Keep the safety information for future reference.
-
Page 11: Chapter 2: Technical Data
CHAPTER 2: TECHNICAL DATA NOTE: *= 1, 2, 3, 4, 6 or 8 depending on the number of buttons on the transmitter. T60TX-0*STL T60TX-0*STL-US Power supply 3 x 1.5 V AAA battery Radio frequency band 433.92 MHz Radio frequency output EIRP < -6 dBm (0.25 mW) EIRP <... -
Page 12: Chapter 3: Product General Description
CHAPTER 3: PRODUCT GENERAL DESCRIPTION NOTE: The pictures shown in this chapter are for illustrative purposes only. Depending on the configuration, the actual product appearance may differ from the basic model used for reference. 3 . 1 T 6 0 T X - 0 * S T L , T 6 0 T X - 0 * S T L - U S t r a n s m i t t e r s NOTE: *= 1, 2, 3, 4, 6 or 8 depending on the number of buttons on the transmitter. - Page 13 T r a n s m i t t e r b a c k 1. Code switch* 2. Batteries (3 x 1.5 V AAA) * By default, all transmitters are delivered with the code (DIP) switches set in position “0” (0000000000 ). If an ADJUSTABLE code is to be used to co-program the transmitter and receiver, it is very important to change the code (DIP) switches in the transmitter to its own, individual code combination before programming the transmitter code in the receiver.
-
Page 14: Chapter 3: Program Adjustable Id Code With The Dip-Switch
CHAPTER 3: PROGRAM ADJUSTABLE ID CODE WITH THE DIP-SWITCH By default, all transmitters are delivered with the code (DIP) switches set in position “0” (0000000000 ) by default. If an ADJUSTABLE code is to be used to co- program the transmitter and receiver, it is very important to change the code (DIP) switches in the transmitter to its own, individual code combination before programming the transmitter code in the receiver. -
Page 15: Chapter 4: Battery
CHAPTER 4: BATTERY 4 . 1 B a t t e r y p r e c a u t i o n s Carefully read the following safety instructions and warnings before using, charging or disposing of the batteries. Batteries contain flammable substances such as lithium or other organic solvents, which may result in overheating, rupture or combustion. -
Page 16: Change The Batteries
4 . 1 . 2 D I S P O S A L When discarding batteries, insulate the + and - terminals of batteries with insulating/ masking tape. Do not place multiple batteries in the same plastic bag. Do not incinerate or dispose of batteries in fire. -
Page 17: Chapter 5: Warranty, Service, Repairs, And Maintenance
Tele Radio products are covered by a warranty against material, construction and manufacturing faults. During the warranty period, Tele Radio may replace the product or faulty parts. Work under warranty must be performed by Tele Radio or by an authorized service center specified by Tele Radio. -
Page 18: Chapter 6: Regulatory Information
For proper treatment, recovery and recycling, please take this product to a designated collection point. Tele Radio strives to minimize the use of hazardous materials, promotes reuse and recycling, and reduces emissions to air, soil and water. When a commercially viable alternative is available, Tele Radio strives to restrict or eliminate substances and materials that pose an environmental, health or safety risk. -
Page 19: United Kingdom
Applies to: T60TX-01STL, T60TX-02STL, T60TX-03STL, T60TX-04STL, T60TX-06STL, T60TX-08STL 6 . 2 . 1 U K C A M A R K I N G UK Importer: Tele Radio (UK) LTD 1 SEYMOUR COURT, MANOR PARK, RUNCORN, WA7 1SY, UK Email: sales@teleradiouk.com... -
Page 20: North America
6 . 3 N o r t h A m e r i c a Applies to: T60TX-01STL-US, T60TX-02STL-US, T60TX-03STL-US, T60TX-04STL-US, T60TX-06STL-US, T60TX-08STL-US 6 . 3 . 1 F C C S T A T E M E N T This device complies with part 15 of the FCC Rules. - Page 21 (2) This device must accept any interference, including interference that may cause undesired operation of device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage;...
-
Page 22: Annex A: Index
ANNEX A: INDEX About T20 and T60 receivers Battery precautions Handling Storage CE marking Dimensions Disposal EIRP FCC/IC labels IC Statement IP code Maintenance Operating temperature T60TX-0*STL, T60TX-0*STM UKCA marking IM-T20T60-TX102-CERT-v02... - Page 23 Warnings & restrictions Installation and commission Maintenance Operation WEEE directive IM-T20T60-TX102-CERT-v02...
- Page 24 These Installation instructions are subject to change without prior notice. Download the latest instructions from www.tele-radio.com.
