Installation - Circontrol SMART Series Installation Manual

CCL-WBM-SMART-RCBO-16A

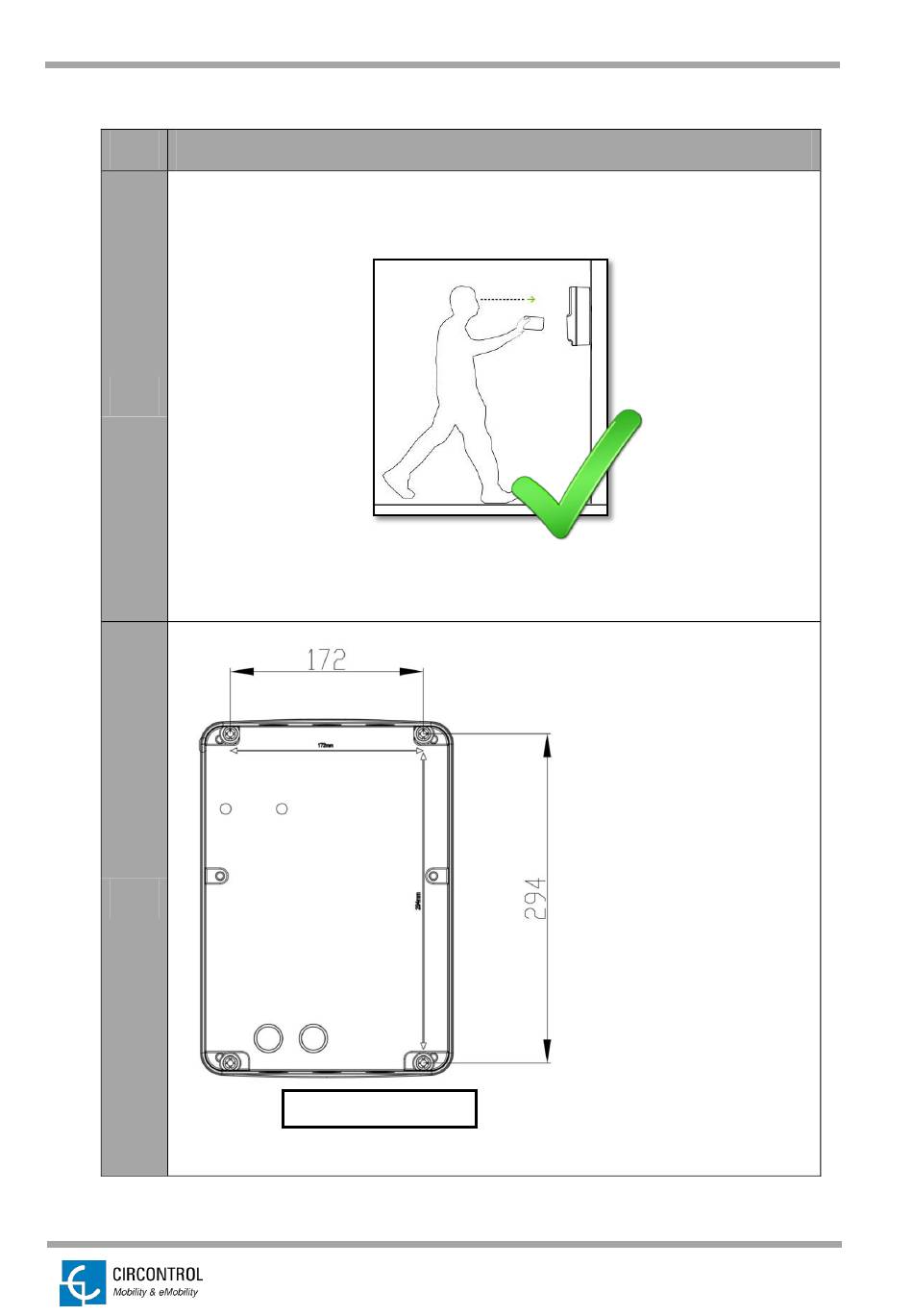

6.4.3 INSTALLATION

STEP
Adjust the position of the charge point according to the correct vision and
management for the end user.
2.
3.
Units specified in mm
ACTION
Minimum recommended height: 600mm
Please comply with your country specifications.
REAR VIEW
16
INSTALLATION MANUAL
1. Mark 4 holes taking into
account the above
measurements.
2. Place it on a flat surface.
3. Use 4x45mm screws to
attach the unit to the
wall.
4. Check charge point has
no inclination using a
level tool.
