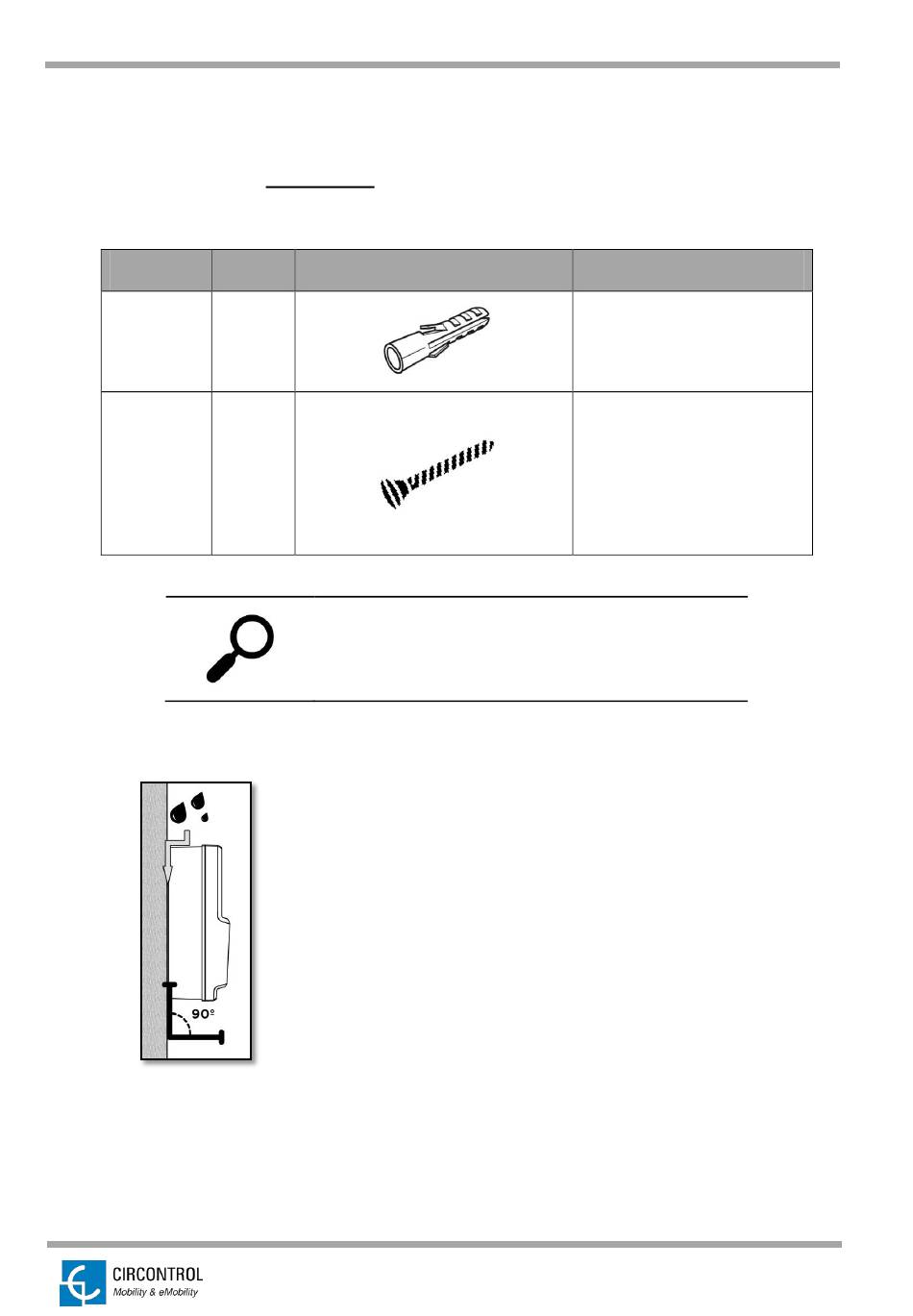

FIXATION PROCEDURE

6.4.1 MATERIAL NEEDED

Below list material (Not included) is needed to attach the unit to the wall:
MATERIAL Qty
Wall plug
Screws

6.4.2 CONSIDERATIONS

4
4
All images shown in the above table are
approximate and may vary depending on the
surface where the charge point is installed.

Water drainage from the top side to the rear side of
the unit must be ensured.

Charge point must be installed vertically.

Use a flat surface.

Use a level tool to ensure installation at an angle of
90º.
INSTALLATION MANUAL
15
DIMENSIONS
Ø 6
4x45mm
