13. Module reference: Note group
setting on a G2 oscillator module. The PartQuant transforms a Pitch control signal to a new signal value
that will offset the frequency of an oscillator in an exact harmonic interval. The range of the partial
generator is 0 to +/- 64 partials in steps of 1 harmonic. Note that the practical limit for this module is
+/- 32 harmonics. This means that if the input value is greater than +32 units, the output signal will
quantize to the 32nd harmonic control signal value, as that's where the scale stops. In normal use the
PartQuant output is connected to a direct Pitch input (without attenuator knob) of an Oscillator or a
Filter module. Positive input signals will tune an oscillator to a higher harmonic, while negative input
signals will make the oscillator produce 'undertones'.
R
ANGE KNOB
Scales down a full input signal of +64 units to a control value which will produce the overtone shown in
the associated display (the actual harmonic is one higher as the display shows, e.g. when the display shows
+/- 2 it actually means the third harmonic). If the input signal is smaller than +64 units, e.g. +32 units,
then the actual output control signal will produce the harmonic that is half as low as the value shown in
the display. Note that an increase in value of 1 unit of the input signal level corresponds to a step of one
harmonic, provided the Range is set to +63*. Knob settings which exceed +/- 32 partials are shown with
an asterisk, indicating that the practical output limit is exceeded.
As the output is a result of both the Range setting and the value of the input signal, it is recommended
to either use the Range knob with an input setting of +64 units, or instead set the Range knob fully open
to +/-63* and variate the level of the input signal with e.g. a Constant module to force an oscillator or
filter to a fixed harmonic. When the purpose of the module is to arpeggiate an oscillator through its
harmonic series, use a Lfo waveform set to positive only. As the Lfo waveform will in this case vary
between 0 and +64 units the Range knob will set the harmonic arpeggiator range.
Note that when the display shows +1 it will detune to the second harmonic, and when set to +2 detune
to the third harmonic, etc.
I
NPUT
The blue control signal input.
O
UT
Signal: Bipolar.
E

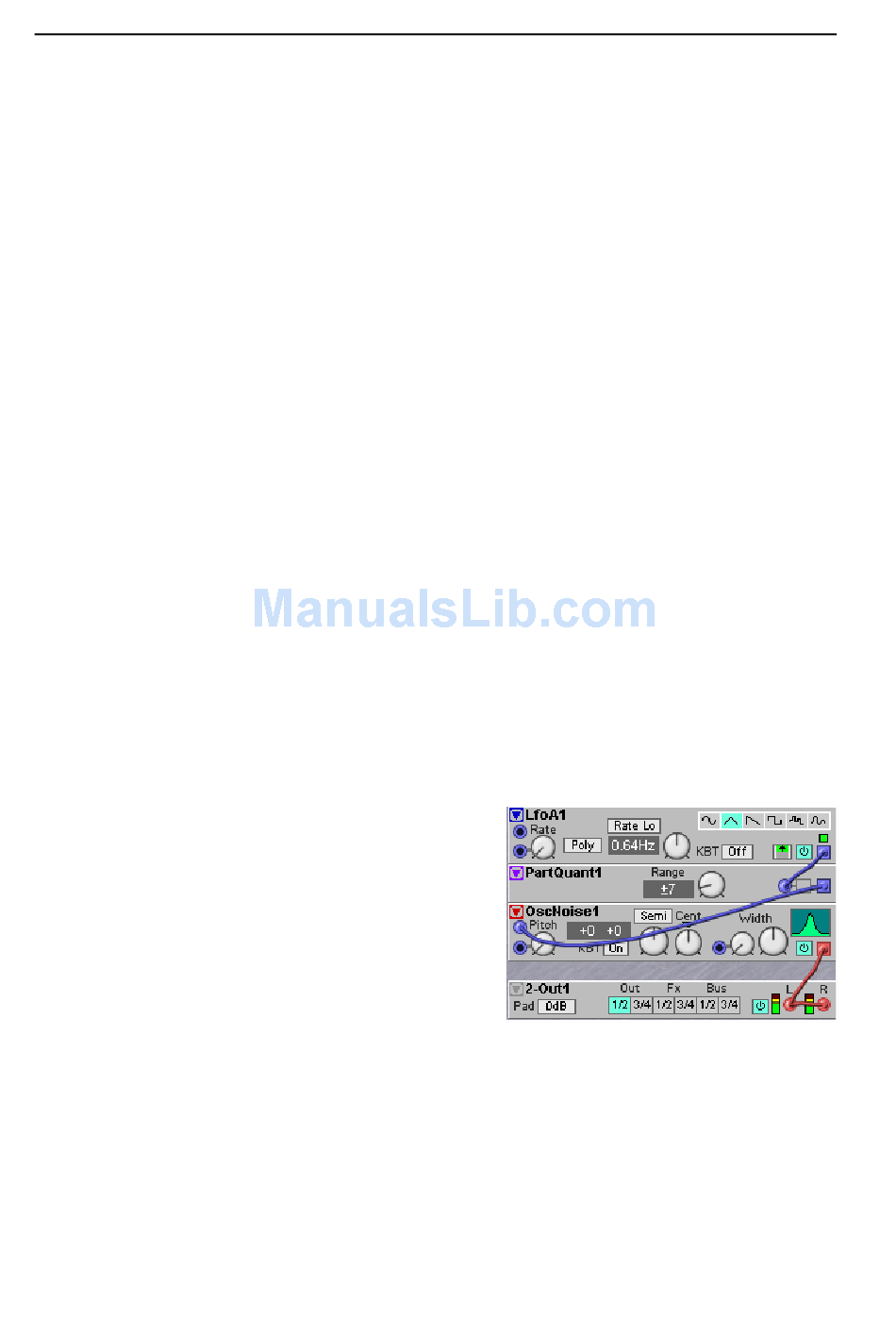

XAMPLE OF A HARMONIC ARPEGGIATOR
In this example a positive only triangle lfo waveform is
quantized to an up down arpeggio that steps from the
fundamental pitch up to the eighth harmonic and down
again.
