Alarm Settings - Icon Process Controls Truflo PPB Series Quick Start Manual

Truflo — PPB Series
®
Battery Operated Digital Pressure Gauge

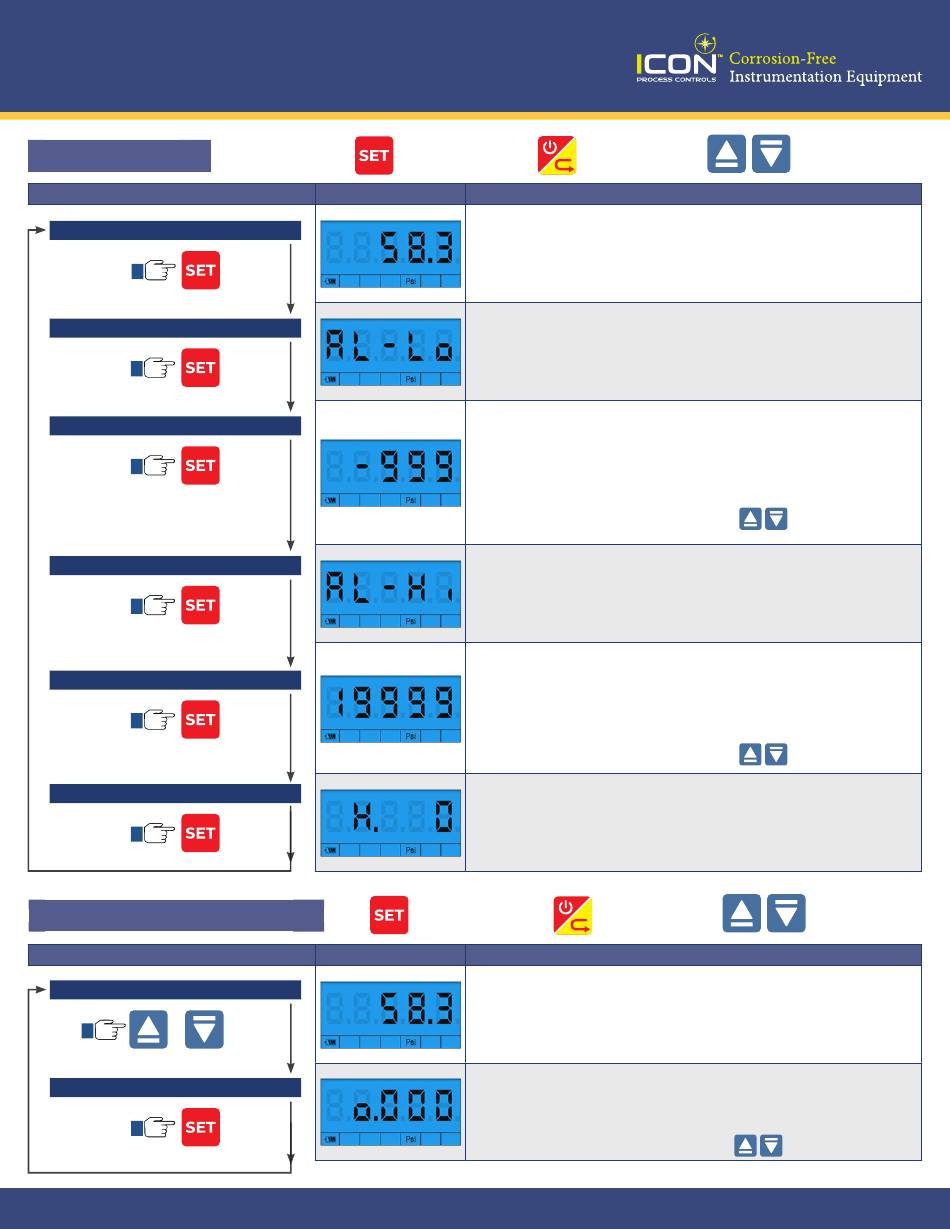

Alarm Settings

STEPS
Home Screen
1
Low Alarm Settings
2
Low Alarm Value
3
High Alarm Settings
4
High Alarm Value
5
Alarm Hysterisis
6
Display Offset Correction
STEPS
Home Screen
1
+
Display Offset Value
2
3
24-0388 © Icon Process Controls Ltd.
Select/Save/Continue
DISPLAY
▶
��
3 Sec .
▶
▶
▶
▶
▶
DISPLAY
▶
��
3 Sec .
▶
▶
Move Selection Left
Home Screen
Low Alarm Settings
Set Low Alarm Value
If [PV]* < [AL-Lo] = [PV] & [AL-Lo] Flicker Alternatively
If [PV]* ≥ [AL-Lo + H] = [PV] Displays Normal
*PV - Pressure Value
High Alarm Settings
Set High Alarm Value
If [PV]* > [AL-Hi] = [PV] & [AL-Hi] Flicker Alternatively
If [PV]* ≤ [AL-Hi - H] = [PV] Displays Normal
*PV - Pressure Value
Relay Output Hysterisis
Select/Save/Continue
Home Screen
*Note : Change Lock to Lck.11 to Enter this Mode
Set Display Offset Value
OPERATION
** Use
** Use
Move selection left
OPERATION
** Use
Change Digit Value
to change Values
to change Values
Change digit value
to change Values
6
