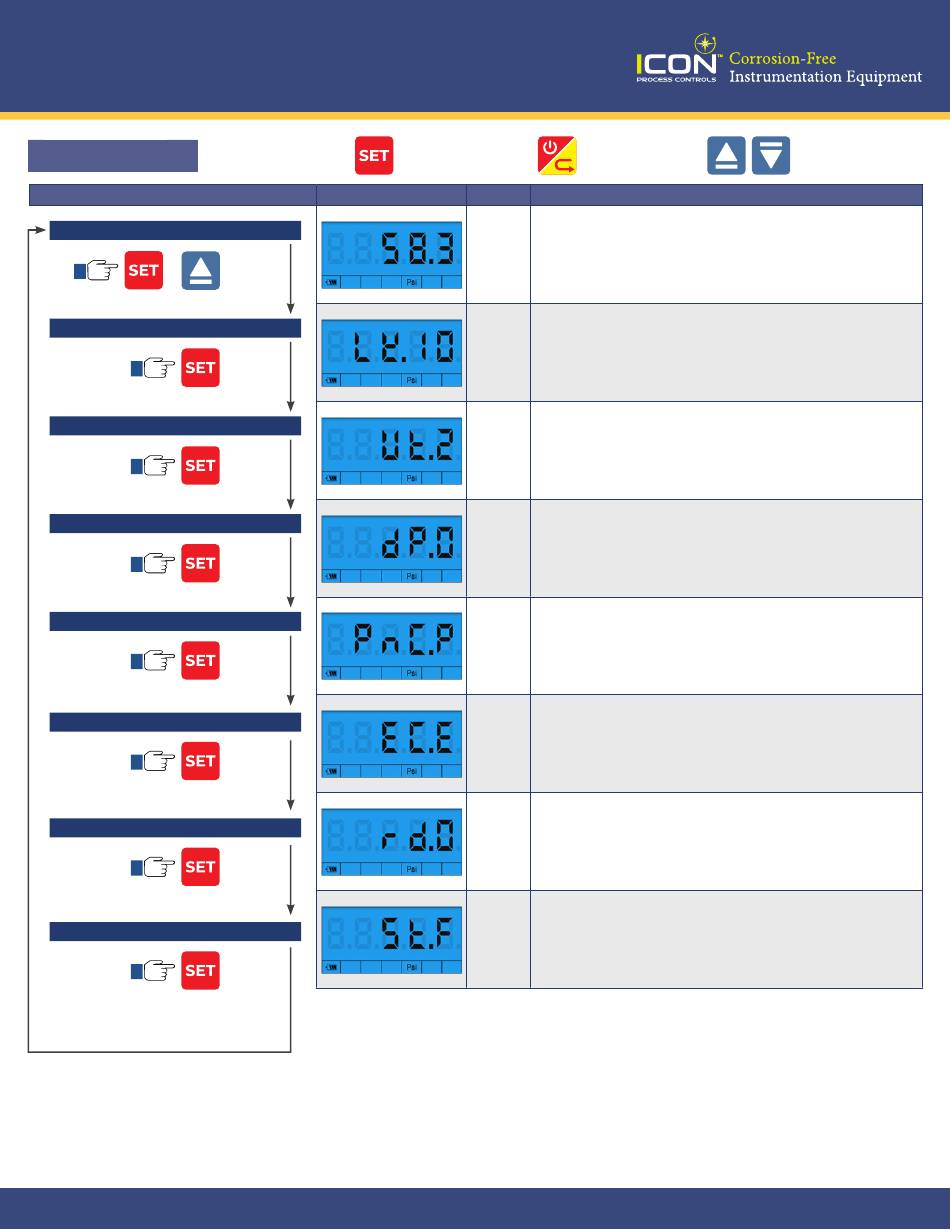

Icon Process Controls Truflo PPB Series Quick Start Manual page 5

Truflo — PPB Series
®
Battery Operated Digital Pressure Gauge
Programming
STEPS
Home Screen
1
+
Lock Settings
2
Pressure Unit Selection
3
Decimal Point
4
Display Mode
5
Backlight Settings
6
Display ON Duration
7
Sampling Frequency Selection
8
24-0388 © Icon Process Controls Ltd.
Select/Save/Continue
DISPLAY
▶
��
3 Sec .
▶
▶
▶
▶
▶
▶
▶
Move Selection Left
RANGE
Home Screen
Factory Default: Lock = 10
0-99
Otherwise meter will enter Lockout Mode
Ut.0 = Bar | Ut.1 = Kg/cm2 |
0-3
Ut.2 = Psi (Default) |
dP.0 = No Decimal Point (Default) |
dP.1 = 1 Decimal Point | dP.2 = 2 Decimal Point |
0-3
dP.3 = 3 Decimal Point
PnC.P : Minimum Value Limit = 0 (Default)
PnC.n : Maximum Value Limit = 0
P | n | C
PnC.C : Unlimited
EC.E = Backlight OFF (Default)
E | n
Ec.n = Backlight ON
rd.0 = Continuous (Default)
rd.1 = 30 Secs.
0-3
rd.2 = 180 Secs.
rd.3 = 600 Secs.
St.E = Eco Mode: Sampling Frequency 1/4Hz
St.n = Normal Mode: Sampling Frequency 1Hz
E | n | F
St.F = Stable Mode: Sampling Frequency 16Hz
(Default)
Change Digit Value
OPERATION
(All Settable)
Ut.3 = KPa | Ut.4 = MPa
5
