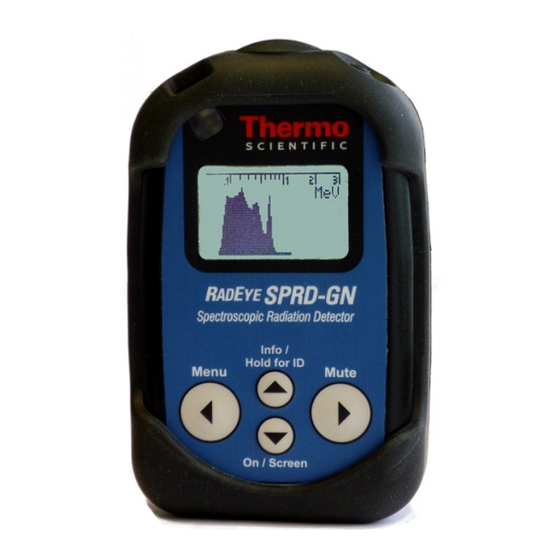

Operating Instructions
DB-103 E
RadEye SPRD-GN
42508/12
Spectroscopic Radiation Detector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RadEye SPRD-GN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermo Scientific RadEye SPRD-GN

Summary of Contents for Thermo Scientific RadEye SPRD-GN

  • Page 1 Operating Instructions DB-103 E RadEye SPRD-GN 42508/12 Spectroscopic Radiation Detector...
  • Page 3 Name Rev. Cat. Explanation state resp. page 25.08.16 RM&SI-EH Pijahn First edition P# 00/2015 *) Category C: editorial correction I: clearing improvement A: substantial amendment Explanations must be given, at least with Category A. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 4: Table Of Contents

    3.1.4  Cross-mode display ........... 3-7  3.2  Scaler ................ 3-8  3.2.1  Mean value ............3-9  3.2.2  Accumulated counts ........3-10  3.2.3  Wait time ............3-10  3.2.4  Background measurement ....... 3-11  3.3  Nuclide identification ..........3-13  DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 5 Sub menu “Measuring unit” (G / N) ....3-29  3.4.9  Sub menu “Scaler Backgnd” ......3-30  3.5  Alarm thresholds ............. 3-30  3.6  Gamma alarm threshold based on the rela- tive standard deviation (sigma threshold) ......... 3-31  3.7  Setting alarm thresholds .......... 3-32  RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...
  • Page 6 Text Info ..............4-6  4.9  Set date and time ............4-7  4.10  Battery type ............4-7  4.11  Lu-Adjust .............. 4-8  4.11.1  Neutron alignment ........... 4-12  4.12  Auto adjust ............4-13  4.13  Key Lock ............. 4-14  DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 7 PC configuration ......8-1     8.1  Ways to connect to a PC ........... 8-1  8.1.1  Wireless connection via Bluetooth ....8-1  8.1.2  Cable connection ..........8-2  8.2  Installation of the optional RadEye_SPRD.EXE software ................8-3  RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...
  • Page 8 Loading spectra from file ........ 8-23  8.7.3  Export spectra data .......... 8-23  Trouble Shooting ......9-1     9.1  RadEye SPRD-GN doesn’t power on ....... 9-1  9.1.1  Press “On” for at least one second ..... 9-1  9.1.2  Check battery ............. 9-1  DB-103 E RadEye SPRD-GN...
  • Page 9 10.1.1  Lu-Adjust and Neutron Alignment ....10-1  10.1.2  Cleaning the instrument ........10-1  10.1.3  Remove batteries for storage ......10-1  Spare Parts ........11-1     11.1  Available spare parts ........... 11-1  11.2  Recommended spare parts ........11-1  RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...
  • Page 10     13.1  RadEye SPRD-GN ..........13-1  13.2  Firmware version ..........13-6  V 1.20 ................13-6  Annex ........... 14-1     14.1  Factory Settings RadEye SPRD-GN ....14-1  Service contact ......15-1     DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 11: Safety Instructions

    RadEye SPRD-GN. The instrument must not be used in explosive atmosphere. The RadEye SPRD-GN is not intended to be used as a person- al dosimeter. No neutron dose rate or dose calculation is per- formed. Due to the high detector sensitivity the gamma dose rate measuring range of the RadEye SPRD-GN is limited to 250 µSv/h (25 mrem/h).

  • Page 12: Weee Compliance

    Directives, the recyclers in your country, and in- formation on Thermo Fisher Scientific products which may assist the detection of substances subject to the RoHS Di- rective are available at www.thermo.com/WEEERoHS 0-10 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 13: Introduction

    1. Introduction The RadEye SPRD-GN radiation pagers are highly sensitive and rugged measuring devices to detect and localize gamma and neutron radiation sources. Furthermore, by virtue of the so called NBR-technique (natu- ral Background Rejection) the RadEye SPRD-GN pager sepa-...
  • Page 14 (SiPM) allowing the de- tection of very low radiation levels. The use of Pulse Shape Discrimination (PSD) for neutron de- tection makes the RadEye SPRD-GN an ideal solution for gamma-neutron detection. The RadEye SPRD-GN pager identifies to the user whether...
  • Page 15 The RadEye SPRD-GN enables measurement of detector pulse rates and energy compensated dose and dose rates. All menu functions described in 3.4 can be configured to be invisible. Thus the instrument can be configured to both, an extremely simple mode allowing just LCD-illumination and alarm ac- knowledgment to a very versatile mode for the more experi- enced user.

  • Page 17: Installation And Start-Up

    2. Installation and start-up Scope of delivery The RadEye is delivered in a folding paper box together with two AAA cells, a rubber protection sleeve and an operating manual. For optional accessories see chapter 12. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 18: Inserting The Battery

     Close the compartment cover hooks first, care for the rub- ber seal being in its groove.  Switch on the unit again. (see chapter 2.4) The instrument continues working in the operating mode set last (see chapter 3.2). DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 19 PC clock time dur- ing read out. In these cases the setting of the clock is not re- quired. For correct time stamp of stored spectra the RTC must be set. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 20: Mounting Of The Protection Sleeve

    Rear view Switching the unit on To switch on the RadEye SPRD-GN, keep the “ON” button pressed for at least one second. The RadEye may need a long- er time for startup if it is started immediately after the batteries...
  • Page 21 Firmware Battery version voltage Display of RadEye SPRD-GN during switch on. The RadEye SPRD-GN starts working with the parameters previously selected (operation mode, calibration factor, alarm threshold, measurement unit etc.). The displayed measure- ment value is a amma value, a eutron value or both.
  • Page 22 During this time period the sigma alarms are active, however not yet with the full sensitiv- ity. The NBR-Alarm is immediately active. Display during the learning phase. The RadEye is ready for operation. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 23 (chapter 3.4) or with the help of the optional PC- program “RadEye_SPRD.EXE” and the cable 42540/26 or 42540/29. Furthermore, additional monitoring modes can be activated. The calibration parameters can only be changed in the factory using special software tools. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 25: Configuration

    3. Configuration Ratemeter After switching on the RadEye SPRD-GN the configured basic display is activated. By a short press on the arrow up key (▲/Info) for one or more times four further display modes can be chosen which are shown for only some seconds.
  • Page 26 Neutron measurement value Gamma and neutron measurement values 1: Battery indication 5: Alarm thresholds 2: Heart beat 6: Bar graph overview 3: Gamma or Neutron channel 7: Info line 4: Measurement unit 8: Auto adjust active DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 27 The battery indication symbol shows the state of the battery. A pulsing heart beat and auto adjust symbol signalizes that the RadEye SPRD-GN is working properly. The Gamma or the Neutron channel is labeled with a G or a N. The measurement unit can be chosen by the main menu and may differ from the pictures above.
  • Page 28 (measurement units: cps or cpm) is much quicker than the time response of the energy compensated dose rate (measurement units: rem/h, R/h, Sv/h, Gy/h). The RadEye SPRD-GN does not show the Neutron dose or the dose rate. During operation of the measuring device at least six alarm thresholds are checked.

  • Page 29: Information Mode Display

    - 4th click: the mean value and peak value of the measured neutron count rate (cps), together with the time indicated since the last reset. (if neutron meas- urement is enabled) RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 30: Channel Mode Display

    3.1.3 Channel mode display Pressing the down arrow – key shows upon click: the neutron channel click: dual channel display click: graphical display of count rate gamma DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 31: Cross-Mode Display

    The count rate alarm thresholds are active, resulting in a quick alarm response, while the calculating of the dose rate for low count rates takes place over a longer time. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 32: Scaler

    This mode can be activated or deactivated via PC-Software (see chapter 8.4) or the option “Cross-mode” in the settings sub menu (see chapter 3.4). Scaler To enter the scaler mode select in the submenu “Operation mode” the option “Scaler“. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 33: Mean Value

    During this wait time a countdown is displayed. See also chap- ter 3.2.3. While the measurement is in progress the Stop sym- bol is blinking. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 34: Accumulated Counts

    3.2.2 Accumulated counts With accumulated counts selected via RadEye_SPRD.EXE the RadEye SPRD-GN shows the collected counts within the measurement time in place of the mean value. This option is only available in combination with measurement unit “cps” and “cpm”. Accumulated counts are limited to 65000 counts.

  • Page 35: Background Measurement

    Elapsed time Action of “Info/▲” “▼”-Key toggles between gam- ma, neutron or dual display The measurement is finished if either the elapsed time arrived the preset time or the accumulated counts reached preset count. RadEye SPRD-GN DB-103 E 3-11 Pi/Iw/Ff 25.08.2016...
  • Page 36 When the measurement is completed, the user is asked wheth- er to save this value („Yes“) or discard this measurement (“No”). If option “Scaler netto” is selected the background value will be subtracted from the measurement. Background value Net value 3-12 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 37: Nuclide Identification

    Elapsed measuring time Battery indication Heartbeat Nuclide identification can be terminated with a long press on “Info/▲” button. The mode is as well terminated by time out after 60 sec if no identification is initiated. RadEye SPRD-GN DB-103 E 3-13 Pi/Iw/Ff 25.08.2016...

  • Page 38: Switch Between Nuclide Id And Ratemeter Mode

    Main screen The main screen offers various displays With the “Save” button (only visible, if option “Autosave” is turned off) a previously recorded unsaved spectrum can be stored to EEPROM (see also 3.3.6). 3-14 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 39: Measuring

    To start the nuclide identification, press the “Info/▲” button. Display with automatic measuring time: Count rate “Info/▲” key Indication auto- matic measuring “▼”-Key toggles count time rate and live spectrum Percent complete display RadEye SPRD-GN DB-103 E 3-15 Pi/Iw/Ff 25.08.2016...
  • Page 40 75 and 5000 cps. If the count rate is lower or higher a message in the top line is displayed. Low rate High rate “On/▼”-Key toggles between measuring and live spectrum display: 3-16 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 41: Result

    For confidence levels below 6 a repetition of the measurement with a longer acquisition time, i. e. improved statistics, is rec- ommended. By pressing the “On/▼”-Key more result pages are available: click: Graphical spectrum display RadEye SPRD-GN DB-103 E 3-17 Pi/Iw/Ff 25.08.2016...
  • Page 42 If “Autosave” is active the spectrum is saved at the end of measurement. If “Autosave” is deselected the spectrum can be saved manually by pressing the right button in display “Spec- trum information”. See also chapter 3.4.6. 3-18 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 43 In display “Energy lines” more information about identified peaks is available by pressing the right button (if enabled): click: Error information Deviation of found peak po- sition from assumed nuclide peak click MCA channel information click Peak counts RadEye SPRD-GN DB-103 E 3-19 Pi/Iw/Ff 25.08.2016...

  • Page 44: Save Spectrum

    Energy information nominal energy of assumed peak 3.3.6 Save spectrum If option “Autosave” is not active a spectrum is saved in the Home screen via the “Save” button (►) 3-20 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 45: View Saved Spectrum

    Scrolling through the single menu options is effected by the “▲/▼” arrow keys. The display returns to its initial default setting in case no key has been activated for more than 10 seconds. RadEye SPRD-GN DB-103 E 3-21 Pi/Iw/Ff 25.08.2016...

  • Page 46: Main Menu

    To select a menu option or a sub menu, highlight the desired action and press the left key The meaning of the Menu key may change with the selected menu. The meaning is shown on the bottom of the display. 3-22 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 47 Scaler Parameter SUB MENU SCALER PARAMETER See 3.4.6 Operation Mode SUB MENU OPERATION MODE See 3.4.7 SUB MENU MEASURING UNIT GAMMA Measuring unit enables the following measuring units: rem/h Sv/h Gy/h See 3.4.8 RadEye SPRD-GN DB-103 E 3-23 Pi/Iw/Ff 25.08.2016...

  • Page 48: Sub Menu "Nuc Id Settings

    - Cycle (for Cycle&Save Mode) Capture Settings - Waiting (wait time after measurement start) If selected, the device starts a nuclide ID once Auto ID CR a predefined count rate threshold has been exceeded 3-24 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 49: Sub Menu "Alarm Indication

    The Alarm LED is enabled / disabled for both gamma and neutron LED. The vibration alarm is enabled / disabled Vibration If enabled, the backlight turns on for 10s if an alarm is detect- LCD LED RadEye SPRD-GN DB-103 E 3-25 Pi/Iw/Ff 25.08.2016...

  • Page 50: Submenu "Settings

    If sound and vibration alarm are disabled at the same time a cross is displayed in the upper right corner. 3.4.4 Sub menu “Settings” The above illustrations depict all main menu options for the submenu “Settings”. 3-26 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 51 Enabling and disabling of automatic adjustment and supervi- Autoadjust sion of Bias voltage Contrast Adjusts the contrast of the LCD display Enables or disables the training mode for a Test Adapter Training 42506/3015 RadEye SPRD-GN DB-103 E 3-27 Pi/Iw/Ff 25.08.2016...

  • Page 52: Sub Menu "Edit Alarm

    PresetTimeMode time can be modified with menu item “Set time/count” Preset count mode is used to measure a predefined number of counts. The counts can be modified with menu item “Set PresetCntMode time/count” 3-28 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 53: Sub Menu "Operation Mode

    This submenu is used to select between ratemeter (see 3.1), scaler (see 3.2) and Nuc ID (Nuclide identification, see 3.3) mode. The “” shows the active mode. 3.4.8 Sub menu “Measuring unit” (G / N) Measuring unit Gamma: Measuring unit Neutron RadEye SPRD-GN DB-103 E 3-29 Pi/Iw/Ff 25.08.2016...

  • Page 54: Submenu "Scaler Backgnd

    Two rate alarm thresholds corresponding to the chosen basic display mode are active. The two active rate alarm thresholds are marked at the bar graph (See 3.1.1 and 3.7). Additionally the two gamma dose thresholds are active. 3-30 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 55: Gamma Alarm Threshold Based On The Rela- Tive Standard Deviation (Sigma Threshold)

    (triangle) if the gamma only display is selected. At instrument start, the background rate meter starts with its maximum value of 100 cps, reaching its final value after 30 seconds. RadEye SPRD-GN DB-103 E 3-31 Pi/Iw/Ff 25.08.2016...

  • Page 56: Setting Alarm Thresholds

    (Change) button if the corresponding “Alarm” is selected: To increment the number, press the ▲/▼arrow keys. To go on to the next digit or to quit the edit mode, menu use ►/◄arrow keys. 3-32 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 57 Alarm dose G Then enter the sub menu by press- ing the “Select” key. Edit value by pressing ▲/▼ keys select digit by ►/◄ keys. Pre unit “”, “m” may be chosen as well. RadEye SPRD-GN DB-103 E 3-33 Pi/Iw/Ff 25.08.2016...
  • Page 58 Leave the last digit with the ► arrow key: Confirm storage of edited value pressing “Yes” 3-34 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 59 Save settings by leaving the menu. The set points of the actual alarm thresholds are seen at the marks on the intensity bar scale. The upper mark shows alarm threshold 1, the lower mark shows alarm threshold 2 RadEye SPRD-GN DB-103 E 3-35 Pi/Iw/Ff 25.08.2016...

  • Page 61: Operation

    The more detector pulses above the count rate that is present at the moment of the activation of the finder mode are captured by the detector, the higher the tone. The finder mode must be enabled in the menu. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 62: Rated Alarm

    1s vibe Dose Rate tone 1s off within 2s Alarm1, 1s low pitch NBR: Balanced tone alternat- NBR disabled Count Rate and NBR Sound 250ms 2 vibes Dose Rate within 1s Alarm1, 250ms NBR: Artificial DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 63 The alarm tone and vibrator are acknowledged by a short key depression of the right arrow pushbutton, the LED remains pulsing. The alarm is extinguished, when the first alarm threshold of the neutron and the gamma measurement value is remained under. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 64: Alarm Display Indication

    (see 3.5). Alarm display indication The status line alternates between three different alarm mes- sages according the table below. Gamma count rate  Neutron  NBR Gamma  or dose rate  Neutron 2  Dose  LOW/MID/HIGH  Neutron 1  Safety  or ART     Alarm 2  BALANCED or  Alarm 1     NORM  DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 65: Additional Information

    A latched alarm is indicated by an “M” near the alarm indica- tor. When the alarm is acknowledged the RadEye returns to normal operations. Latching indication RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 66: Show Alarm

    By pressing the right button the display returns to the menu. Text Info Via PC program “RadEye_SPRD.EXE” it is possible to place text information in the RadEye SPRD-GN. This text infor- mation can be displayed with the menu function „Text Info“. DB-103 E RadEye SPRD-GN...

  • Page 67: Set Date And Time

    Selection of battery type: Rechargeable NiMH or non- rechargeable alkaline batteries. It is needed for a correct low battery warning. Battery type “Alkaline” Battery type “NiMH” If the battery voltage is below the configured threshold the following warning appears: RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 68: Lu-Adjust

    Thus for training purpose the response of the RadEye SPRD- GN to man-made gamma emitting radioactivity can be field tested with a natural and license free ceramic material. Lu-176 must be recognized by the NBR as described in chapter 5.2. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 69 During the first seconds the RadEye checks the background. Please note that the background must be smaller than 50 cps. Date and time of the last successful Lu-Adjust When the background measurement is complete the user may place the test adapter: RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...
  • Page 70 The result is displayed. The test ends with the message “-- READY --” if the Energy error is between ±1%. Pressing the /Info button the user is asked to perform a neu- tron alignment (see 4.11.1). 4-10 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 71 The bias adjust is started by pressing the /Info button. After setting the correct bias voltage the following screen is dis- played: Pressing the /Info button the user is asked to perform a neu- tron alignment (see 4.11.1). RadEye SPRD-GN DB-103 E 4-11 Pi/Iw/Ff 25.08.2016...

  • Page 72: Neutron Alignment

    In order to minimize the required time, the RadEye SPRD-GN should be placed in a location with minimal shielding of the cosmic radiation (less than about 100 g/cm²...

  • Page 73: Auto Adjust

    4.12 Auto adjust If enabled, auto adjust works as a background task during normal operation of the RadEye SPRD-GN. The RadEye SPRD-GN permanently monitors the pulse height of the cos- mic neutron background events and performs a continuous fine adjustment of the detector amplification in order to correct any eventual long-term drift of the detector performance.

  • Page 74: Key Lock

    Working auto adjust is displayed with a flashing symbol in the screen: Auto adjust 4.13 Key Lock By pressing the “▼/On” key for at least one second a notifica- tion screen is displayed: Keep the button pressed to lock the key pad: 4-14 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 75 Unlocking is performed according to the LCD instructions upon pressing any key: Press left key first, then lower key and then right key. This feature can be disabled using RadEye_SPRD.exe. RadEye SPRD-GN DB-103 E 4-15 Pi/Iw/Ff 25.08.2016...

  • Page 77: Detection Of Gamma Sources

    During operation in count rate mode with sigma  2 the back- ground radiation is always monitored and a smoothed, low pass filtered value is computed. This value, limited to 100 cps, is used for the calculation of Alarm 1 if the sigma alarm is RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 78: Nbr (Natural Background Rejection)

    Using the NBR feature however, radiation fields with an energy distribution that is sufficiently different from the natural environment can trigger an alarm at 20 cps or even below. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 79 A count rate or dose rate alarm without any detected energetic anomaly is indicated as “Balanced” or “NORM” depending on the selected NBR-message configuration. Alarm displays with activated NBR alarm: Man-made radioactivity with main energies up to approxi- mately 150 keV. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...
  • Page 80 Man-made radioactivity with main energies up to approxi- mately 600 keV. Man-made radioactivity with main energies above 600 keV Natural radioactivity (NORM-Material) DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 81: Indication Of Neutron Sources

    10 times higher than in the case the in- strument is held in the hand. Thus the RadEye SPRD-GN, worn as a pager, may indicate a neutron alarm with the blue...
  • Page 82 5 seconds, an alarm threshold of 0.2 cps typi- cally provides false alarm-free operation. In locations with elevated neutron background (e.g. higher altitude), the alarm threshold may need to be set slightly higher. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 83: Functional Test

    Failure indication In case of a failure or if the battery voltage is low, the beeper generates a tone sequence every 30 s. The corresponding failure message is displayed in the LCD: RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...
  • Page 84 EEPROM Read or EEPROM Write error. A Watchdog Error indicates that the micro controller has problems to work on its tasks in a given timeframe. Reasons are strong electromagnetic pulses, firmware errors or hardware issues. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 85: Overload Indication

    Neutron count rates of more than 10000 cps lead to a neutron overload. Both overload messages of the neutron and the gamma channel can be displayed by the RadEye SPRD-GN: RadEye SPRD-GN DB-103 E...

  • Page 86: Temperature Warning

    Temperature warning The maximum temperature of the RadEye SPRD-GN is 50°C (122°F). If the temperature higher than 50 °C the RadEye shows the following screen: By pressing the right button, the user may switch off the RadEye to avoid false alarms.

  • Page 87: Pc Configuration

    8. PC configuration The configuration of the RadEye SPRD-GN via Windows software requires optional Thermo Scientific hardware and software. Ways to connect to a PC A RadEye unit can be connected to a PC either by serial inter- TM 2 face, USB interface or by Bluetooth 8.1.1...

  • Page 88: Cable Connection

    Alternatively, the optional USB connection cable is used to connect to an USB port. Using the USB connection requires the installation of driver software that will generate a virtual serial port that can be se- DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 89: Installation Of The Optional Radeye_Sprd.exe

    Open the file “Setup.EXE” on the Software installation CD Rom and follow the installation guideline. The installation generates a RadEye_SPRD.EXE Icon on the desktop. Start RadEye_SPRD.EXE Once the RadEye_SPRD.EXE program has been started, de- vice parameters are displayed on the screen. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 90: Radeye Sprd-Gn Device Parameters

    The Frame "RadEye SPRD-GN" contains the unit's serial number and version number of the software. Click on the Read button, the Parameters of RadEye SPRD-GN will be read out from the device and shown in the Frame. Figure 8-1: Main Window 8.3.2...
  • Page 91 Up to 100 measured val- ues can be represented. The graduation of the ordinate is au- tomatically adjusted to the measured values supplied by the unit. Figure 8-2: Measurement graphics RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...
  • Page 92 Close Logfile menu item. No further data is recorded. Open the File / View Logfile... menu to view the measurement logfile. For training and demonstration a prior recorded logfile can be replayed by opening Replay logfile. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 93: Select Serial Interface

    8.3.3 Select serial interface Via Configuration / Com settings... menu another window is opened from which you may select the corresponding inter- face. An error message is displayed if the interface is not available. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 94: Configuration

    Configuration On the Configuration / RadEye SPRD-GN… menu, the fol- lowing parameters can be modified:  Operating mode  Unit  Basic display  Time interval of the history  Acoustic indication  Alarm level for all basic displays  Signaling types ...
  • Page 95 The frame “On Button” configures the assignment of the “▼/On” button. See also chapter 3.1.3. The frame “Nuclides ID Result” configures the assignment of the “▼/On” button for the result screen after ID measurement. See also chapter 3.3.5. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 96: User Defined Text

    In the field “Text Info” the user can define 4 lines text, which can be displayed on the LCD by the RadEye. The “Text Field” stores a text with up to 200 characters in the RadEye. This text cannot be displayed by the RadEye. 8-10 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 97: Mode Configuration

    Ratemeter: If background subtraction is active the back- ground gamma and neutron rate in frame scaler background is subtracted. Auto Adjust enables or disables the automatic neutron peak stabilization. See 4.12 RadEye SPRD-GN DB-103 E 8-11 Pi/Iw/Ff 25.08.2016...

  • Page 98: Nuclide Id

    Figure 8-7: Nuclide ID settings Except for the maximum measuring time that limits the auto measuring time and Auto ID parameters, all settings can be changed on the instrument as well (unless blocked). 8-12 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 99  Spectrum Autosave: if active the spectrum will be saved automatically after ID.  Overwrite oldest spectrum without warning: if the memory is full old spectra will be overwritten without us- er request. RadEye SPRD-GN DB-103 E 8-13 Pi/Iw/Ff 25.08.2016...

  • Page 100: Trigger List

    “Add” and “Delete” is used to add and delete entries in the trigger list. “Up” and “Down” move the entries in the trigger list. “Edit…” opens another window where the nuclides can be managed. 8-14 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 101: Alarm Configuration

    Figure 8-9: Edit nuclide trigger list 8.4.6 Alarm configuration Figure 8-10: Alarm setting RadEye SPRD-GN DB-103 E 8-15 Pi/Iw/Ff 25.08.2016...

  • Page 102: Bluetooth Configuration

    If the RadEye SPRD-GN is mainly used as an alarm device wearing at the belt, it is recommended to set an alarm latching time of 10s. This is useful to notice short exposure events.

  • Page 103: Menu Configuration

    RadEye. “Secure connection” uses the PIN code that can be edited in the right field. For more information please read the manual which is deliv- ered together with the BTcom cover. 8.4.8 Menu configuration Figure 8-12: Menu selection RadEye SPRD-GN DB-103 E 8-17 Pi/Iw/Ff 25.08.2016...

  • Page 104: History

    Once the setting of the parameters is finished, the configura- tion is sent to the RadEye SPRD-GN by clicking on the “Write to RadEye SPRD-GN” button. Parameters including the selected menu configuration can be saved with File / Save as…...
  • Page 105 Figure 8-8: History read out Clicking at the graph, each individual, stored measured value can be displayed: Figure 8-9: Single history value indication RadEye SPRD-GN DB-103 E 8-19 Pi/Iw/Ff 25.08.2016...

  • Page 106: Logbook

    At the display every event is shown in one line for better overview. The date and time of the PC is used for time relation. Figure 8-10: Logbook 8-20 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 107: Radeye Spectra

    RadEye. The data is automatically stored on the hard disk in ANSI N42.42 (2012) XML format. The upper part of the window displays the spectrum graphical- ly. The lower part of the window shows the details of the spec- trum. RadEye SPRD-GN DB-103 E 8-21 Pi/Iw/Ff 25.08.2016...
  • Page 108 “Store remark” stores the text in the XML file. The tab “Nuclide Identification” displays the identified nu- clides together with the peak data. “Detailed Gross” shows some general information. “Detailed BGnd” shows some general information about the last background spectrum measurement. 8-22 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 109: Storing Spectra To Another Location

    By means of “File / Export spectrum…” menu function the user can export the currently loaded N42 spectrum file as text file which can be imported in data spreadsheet programs (e.g. MS Excel). RadEye SPRD-GN DB-103 E 8-23 Pi/Iw/Ff 25.08.2016...

  • Page 111: Trouble Shooting

    The LED may flash then only very shortly. 9.1.2 Check battery If the RadEye SPRD-GN does not respond to a long press (> 1s) of the “” button, then please use the following step by step procedure: A) Remove the current batteries...

  • Page 112: Reading Data From The Start Up Screen

    The RadEye doesn’t show the menu items as described in the manual The items available in the RadEye SPRD-GN’s menu can be disabled or enabled via the RadEye_SPRD.EXE software. The factory setting has all menu functions enabled. Please refer to chapter 8.4, menu settings.

  • Page 113: The Radeye Shows An Error Message In The Display's Top Line

    If the failure was related to a strong electromagnetic pulse scenario and the failure went away afterwards, then a repair may not be necessary. A diligent observation of the RadEye SPRD-GN proper operation after the failure is strong- ly recommended. The RadEye is not found in the software If the connection between the RadEye and the computer can’t...
  • Page 114 The correct serial interface has been selected. It is recommended to use the Windows system tools to deter- mine the occupation of the currently active serial ports. Virtual serial ports are labeled accordingly for identification. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 115: Radeye Lost Date And Time Settings

    Please check if the correct battery type is selected under “set- tings” / “Batt. type” and change the type in case. Rechargeable batteries supply a voltage of 1.2V each, while Alkaline batter- ies provide 1.5V. RadEye SPRD-GN DB-103 E Pi/Iw/Ff 25.08.2016...

  • Page 116: History Data Shows The Wrong Time And Date

    Rechargeable batteries offer also a steeper drop from accepta- ble battery voltage to “battery low” than Alkaline types. History data shows the wrong time and date See chapter 9.6. DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 117: Maintenance

    10. Maintenance 10.1 Recommended maintenance The RadEye SPRD-GN is basically maintenance free. 10.1.1 Lu-Adjust and Neutron Alignment It is recommended to perform a Lutetium test routine (Lu- Adjust) with the optional Lutetium test adapter on a regular basis. The Lutetium test routine and neutron alignment is de- scribed in chapter 4.11.

  • Page 119: Spare Parts

    11. Spare Parts 11.1 Available spare parts Item Part Number Front foil RadEye SPRD-GN 42506703082 engl. Battery cover 425067033 Rubber shock protection (rub- 42506703018 ber boot) Battery IEC-LR03 Micro 1,5V SM164600012 ENERGIZER E92 (1 pack = 2 batteries) 11.2 Recommended spare parts...

  • Page 121: Optional Accessories

    The usage of the earphone is recommended, if the RadEye is switched into FINDER mode and disturbance through noisy environment shall be compensated. The earphone is plugged into the RadEye’s socket at bottom of the unit. The cable length is 1.2m. RadEye SPRD-GN DB-103 E 12-1 Pi/Iw/Ff 25.08.2016...

  • Page 122: Lutetium Test-Adapter For Radeye (425067071)

    12.4 Desktop holder (425067060) Alignment between the RadEye’s IR data interface window and the IR interface of a PC connection cable is insured with the usage of the desktop holder. Please see chapter 8.1.2 for details. 12-2 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 123: Ir Connection Cable Usb (4254026)

    Please see chapter 8.1.2 for details. Cable length = 1.2 m 12.6 Bluetooth battery cover (425067087) The standard battery lid is replaced with the Bluetooth battery cover. Please see chapter 8.1.1 for details. RadEye SPRD-GN DB-103 E 12-3 Pi/Iw/Ff 25.08.2016...

  • Page 124: Radeye Area Monitor With Alarm Contacts (4250680)

    12.7 RadEye Area Monitor with alarm contacts (4250680) A RadEye SPRD-GN can be used as installed radiation moni- tor if used as RadEye Area Monitor. The RadEye is perma- nently powered and the alarm status is visible as light and with further accessories also as sound alarm (425068010).

  • Page 125: Technical Data

    *(10) [Sv/h], [rem/h], H*(10) [Sv], [rem] Air kerma dose rate and dose: x [R/h], [Gy/h], Hx [R], [Gy] Within the RadEye SPRD-GN the re- lation 1 rem =10 mSv and 1R=8.77mGy is used. Measuring range: Gamma: 250 µSv/h [25 mrem/h] depending on calibra-...

  • Page 126: Linearity Error

    Energy dependence: see Diagram 13-1 and Diagram 13-2 Direction of perpendicular to the device’s longitudinal max. response: axis, to the reference mark on the back side of the unit 13-2 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 127 0,5m without protection sleeve 1,5m with protection sleeve Size: 96 mm x 61 mm x 31 mm, without rubber protection Weight: around 160 g including two Alkali Manganese AAA cells LR 3 and rub- ber protection. RadEye SPRD-GN DB-103 E 13-3 Pi/Iw/Ff 25.08.2016...
  • Page 128 NBR-ratio filter type: RC: cycle time: Power consumption:  17mW: normal operation without alarm signals and LCD illumination  80mW with illuminated LC display  60mW LED alarm  185mW acoustic alarm  80mW vibrator alarm 13-4 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...
  • Page 129  150 h using two alkaline AAA cells Battery service life:  75 h using 800mAh NiMH battery Diagram 13-1: dose rate response Diagram 13-2: Energy response in main direction count rate RadEye SPRD-GN DB-103 E 13-5 Pi/Iw/Ff 25.08.2016...

  • Page 130: Firmware Version

    13.2 Firmware version V 1.20 First edition 13-6 DB-103 E RadEye SPRD-GN Pi/Iw/Ff 25.08.2016...

  • Page 131: Annex

    14. Annex 14.1 Factory Settings RadEye SPRD-GN Item Factory default Language English Measuring unit dose rate Sv/h Type of battery Battery (Alkaline) Mode Count rate [cps] Acoustic indication Single pulse indication Single Pulse Click Divider Keyboard Beep when key pressed...
  • Page 132 Text display line 2 RadEye SPRD-GN Text display line 3 Line 3 Text display line 4 Line 4 Text field This text is not shown in the LCD. Operation mode Ratemeter Unit Gamma Dose rate unit Gamma in cps mode...
  • Page 133 Bluetooth: Power off at battery low Enabled Bluetooth: Blue LED on Enabled Bluetooth: Firewall Enabled Bluetooth: Secure connection Enabled Bluetooth PIN 1234 Bluetooth: operation mode PC with RadEye settings Functions All menu items active RadEye SPRD-GN DB-103 E 14-3 Pi/Iw/Ff 25.08.2016...

  • Page 135: Service Contact

    15. Service contact To request repair or calibration services, please use the online RGA (Return Goods Authorization) process at: http://www.thermoscientific.com/servicerepair RadEye SPRD-GN DB-103 E 15-1 Pi/Iw/Ff 25.08.2016...
  • Page 138 Thermo Fisher Scientific Messtechnik GmbH Post address: Frauenauracher Straße 96 P.O. Box 16 60 D-91056 Erlangen, Germany D-91051 Erlangen, Germany +49 9131 998-0 www.thermofisher.com +49 9131 998 475 fax info.rmp.erlangen@thermofisher.com...

This manual is also suitable for:

42508/12

Table of Contents
