FB000 RTU Power Supply Module and Chassis Field Installation Guide
D301874X012
November 2023
2.
3.

Replacing a Power Module

1.
2.
2

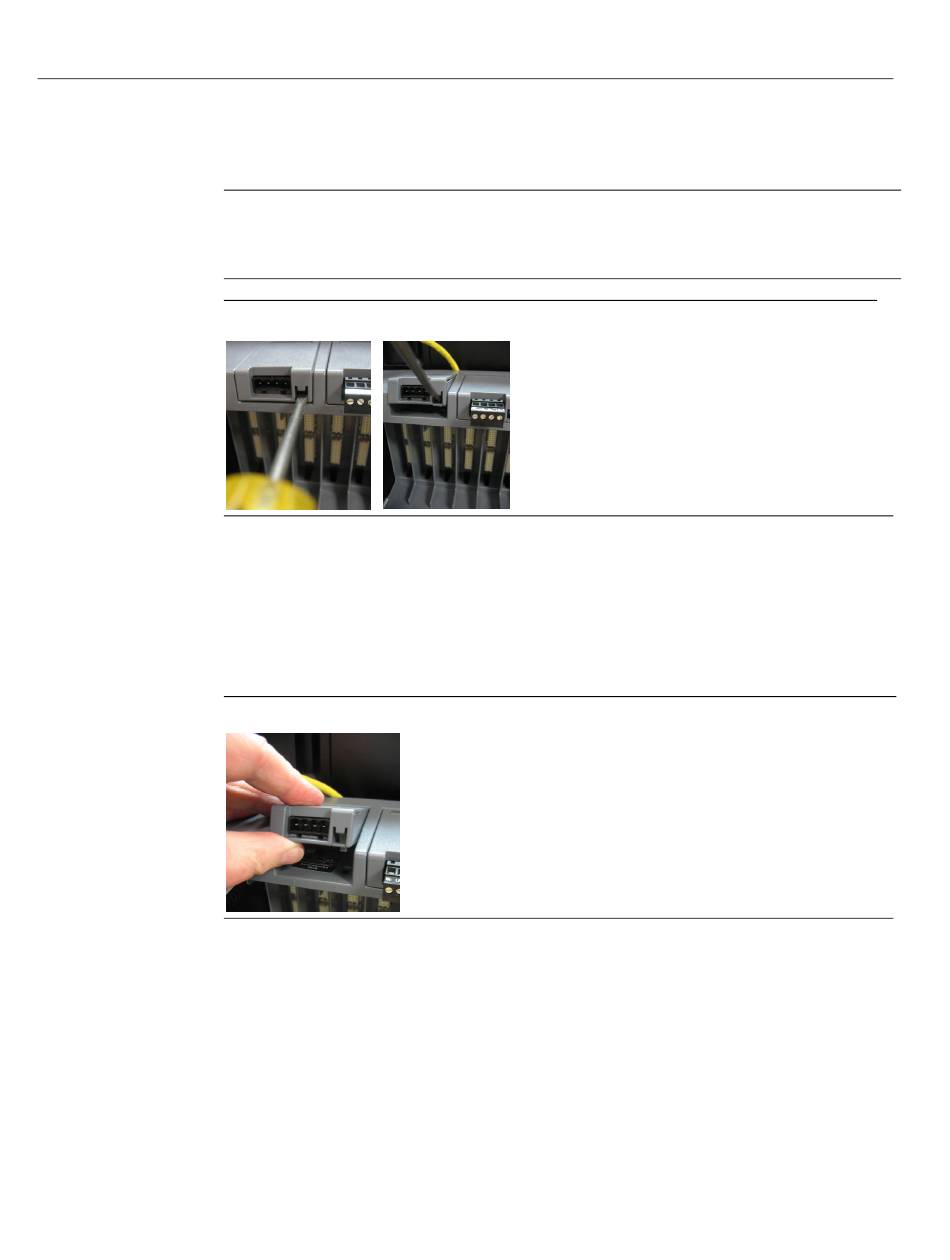

Push a flathead screwdriver into the opening in the lower right of the power
module and rotate the handle of the screwdriver upwards to rotate the module
upwards.
Note
Do not rotate the handle of the screwdriver downwards; that may pop the cover
off the power module.
Removing Power Module
Now you can grasp the power module and pull it out.
Press the power module at an angle into the chassis with the tab at the rear end
of the module going into the matching slot of the chassis. Press the module in as
you rotate it down and it snaps into place.
Replacing Power Module
Re-attach the terminal block.
