Server Express
™
Used with pouches up to
1½ gallons with 16mm fitments.
MODELS:
SE
SE-SS
SS-1SE
SS-2SE
SE-2
SE-2DI
SE-3
SE-3DI
SE-4
SE-4DI
SE-5
SE-5DI
SE-6
Thank You
...for purchasing our Server Express™ Pouched
Condiment Dispenser. This portion controlled unit is
sealed and sanitary, achieves excellent evacuation and
has only a few parts for easy clean-up.
SIMPLIFY CONDIMENT MANAGEMENT— GO POUCHED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Server Express SE
Summary of Contents for Server Express SE

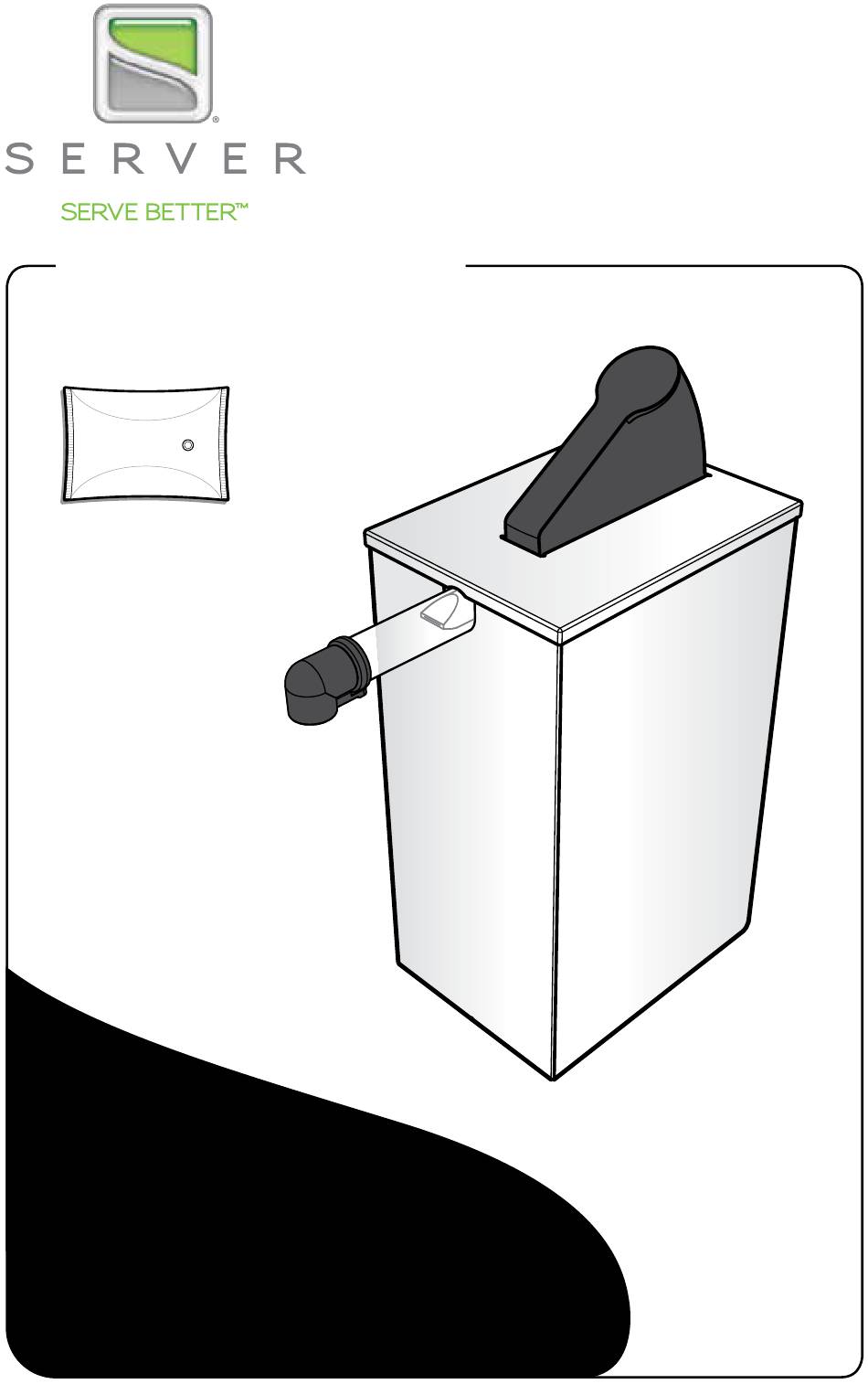

- Page 1 SE-4 SE-4DI SE-5 SE-5DI SE-6 Thank You ...for purchasing our Server Express™ Pouched Condiment Dispenser. This portion controlled unit is sealed and sanitary, achieves excellent evacuation and has only a few parts for easy clean-up. SIMPLIFY CONDIMENT MANAGEMENT— GO POUCHED...
- Page 2 SERVER EXPRESS MODELS ™ Your model may vary. See pages 2—4. Examples include: 07000 Rectangular Black SS-1SE SS-2SE 67760 07300 Rectangular Single Stand Twin Stand PARTS LEVER 07014 HINGE PIN 07161 11" BRUSH 82049 ASSEMBLY 07048 07053 ROLLER 07056 RECTANGULAR...
- Page 3 SERVER EXPRESS MODELS ™ SE-SS 07030 07010 Round Stainless Steel Round Black PARTS LEVER 07014 HINGE PIN 07161 11" BRUSH 82049 ASSEMBLY 07052 07051 ROLLER 07056 PUMP Unit 07030: SHROUD 07326 07794 RAMP 07036 See page 6 Unit 07010: ROUND VESSEL 07047 for individual pump parts.
- Page 4 SERVER EXPRESS MODELS ™ SE-SS SE-SS 07125 07020 Single Single Drop-In SE-2 SE-2DI 07140 07160 Twin Twin Drop-In SE-3 SE-3DI 07040 07050 Triple Triple Drop-In SE-4 SE-4DI 07200 07210 Quadruple Quadruple Drop-In SE-5 SE-5DI 07060 07070 Quintuple Quintuple Drop-In SE-6...
- Page 5 PARTS LEVER MODEL(S) 07014 ASSEMBLY HINGE 07125, 07020 07055 07057 07140, 07160 07341 07342 07161 07040, 07050 07079 07083 ASSEMBLY 07200, 07210 07185 07186 07060, 07070 07104 07105 ROLLER 07080 07114 07115 07056 POUCH SUPPORT 07159 PUMP 07794 See page 6 for individual pump parts.
- Page 6 Check with local food and safety regulators for specific guidelines. Server Products, Inc. cannot be NSF International lists this pump as: responsible for the serving of potentially hazardous “Not acceptable for dispensing potentially...
-
Page 7: Pump Assembly
PUMP ASSEMBLY WASH ALL PARTS PROPERLY BEFORE USE. See page 9. INSERT PINCH VALVE into pump housing. TIP: Squeeze the pinch valve open before installation to ensure it isn’t stuck shut. INSTALL DOME Press dome into Wrap loop housing fully. around lower opening to Ensure valve flap... - Page 8 SETUP PRACTICE SAFETY. WASH ALL PARTS PROPERLY BEFORE USE. See page 11. ATTACH POUCH TO PUMP Firmly press piercing connector into center of pouch fitment. An audible click indicates a secure connection. CLICK INSTALL PUMP Slide pouch and pump into pouch support within shroud.
-
Page 9: Portion Control
PLACE LID ON TOP PRIME PUMP Press lever several times until you see product in discharge tube. PORTION CONTROL THE LID IS SET TO DELIVER 1 OZ PORTIONS. If lid reassembly is needed, or to specify a different portion size: One hinge pin attaches lever to lid. - Page 10 TAKE-DOWN & DISASSEMBLY REMOVE LID REMOVE PUMP & POUCH DETACH PUMP FROM POUCH FLUSH & RINSE PUMP Place lower end of pump into container of hot water. Pump until all remaining product is expelled and only water flows from discharge tube. DISASSEMBLE Page 10...
-
Page 11: Care Of Stainless Steel
CLEANING CLEAN After disassembling, clean all washable parts with soap and hot water. YES! Use dishwashing RINSE soap and hot water fully with clear water. • External surfaces may be wiped clean with a clean damp cloth. • Glass and surface cleaners approved for use in food contact areas may be used. -
Page 12: Troubleshooting
Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt. Typically, units are repaired Server Products equipment is backed by a and ship out within 48 hours of receipt.
