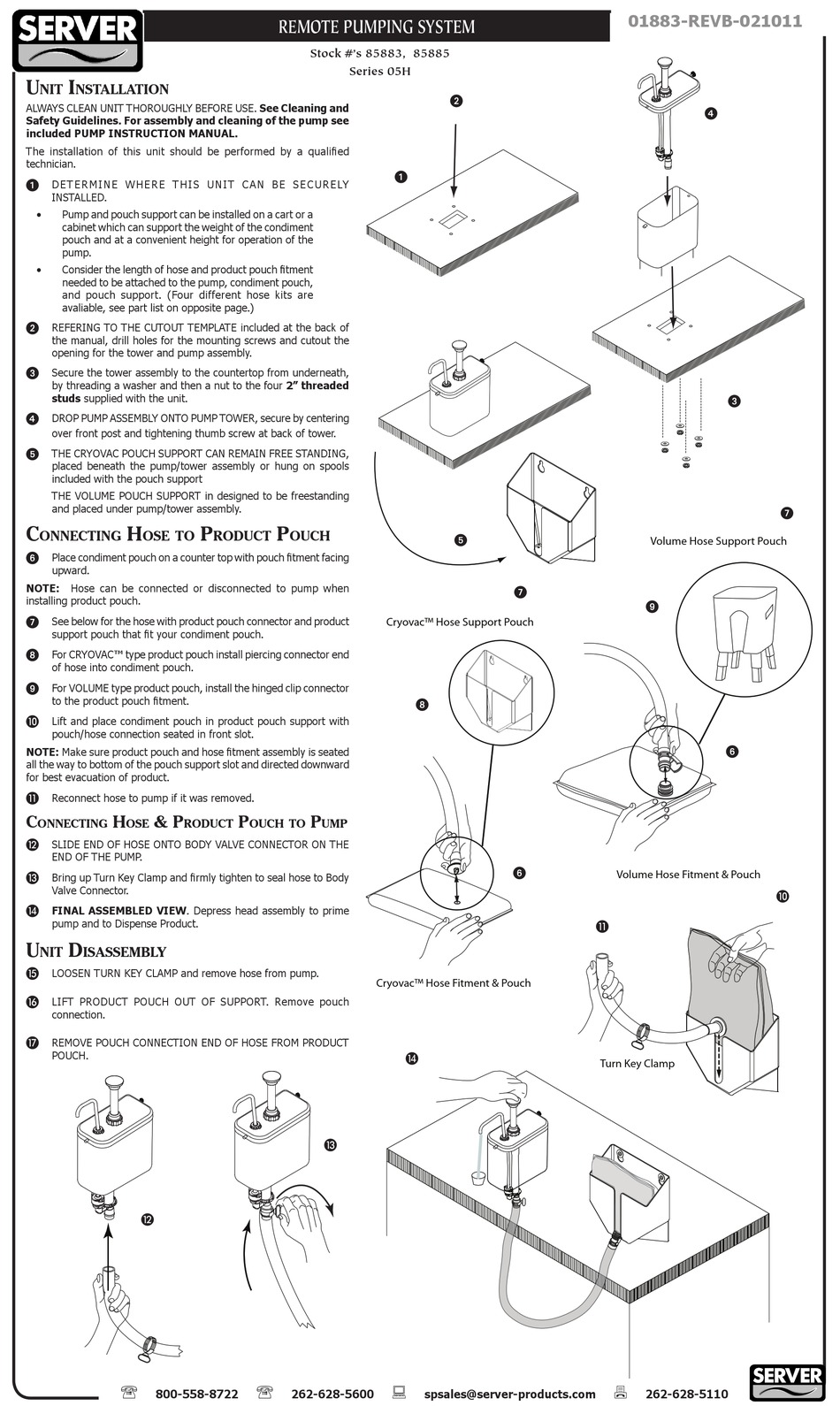

Server 05H Series Installation

U i
nit nstallation
ALWAYS CLEAN UNIT THOROUGHLY BEFORE USE. See Cleaning and
Safety Guidelines. For assembly and cleaning of the pump see
included PUMP INSTRUCTION MANUAL.
The installation of this unit should be performed by a qualified
technician.
D E T E R M I N E W H E R E T H I S U N I T C A N B E S E C U R E LY
1
INSTALLED.
Pump and pouch support can be installed on a cart or a
•
cabinet which can support the weight of the condiment
pouch and at a convenient height for operation of the
pump.
Consider the length of hose and product pouch fitment
•
needed to be attached to the pump, condiment pouch,
and pouch support. (Four different hose kits are
avaliable, see part list on opposite page.)
REFERING TO THE CUTOUT TEMPLATE included at the back of
2
the manual, drill holes for the mounting screws and cutout the
opening for the tower and pump assembly.
Secure the tower assembly to the countertop from underneath,
3
by threading a washer and then a nut to the four 2" threaded
studs supplied with the unit.
DROP PUMP ASSEMBLY ONTO PUMP TOWER, secure by centering
4
over front post and tightening thumb screw at back of tower.
THE CRYOVAC POUCH SUPPORT CAN REMAIN FREE STANDING,
5
placed beneath the pump/tower assembly or hung on spools
included with the pouch support
THE VOLUME POUCH SUPPORT in designed to be freestanding
and placed under pump/tower assembly.
C H
onneCting ose to
6 Place condiment pouch on a counter top with pouch fitment facing
upward.
NOTE: Hose can be connected or disconnected to pump when
installing product pouch.
See below for the hose with product pouch connector and product
7
support pouch that fit your condiment pouch.
8 For CRYOVAC™ type product pouch install piercing connector end
of hose into condiment pouch.
For VOLUME type product pouch, install the hinged clip connector
9
to the product pouch fitment.
Lift and place condiment pouch in product pouch support with
J
pouch/hose connection seated in front slot.
NOTE: Make sure product pouch and hose fitment assembly is seated
all the way to bottom of the pouch support slot and directed downward
for best evacuation of product.
Reconnect hose to pump if it was removed.
K
C H & P
onneCting ose rodUCt
L SLIDE END OF HOSE ONTO BODY VALVE CONNECTOR ON THE
END OF THE PUMP.
M Bring up Turn Key Clamp and firmly tighten to seal hose to Body
Valve Connector.
FINAL ASSEMBLED VIEW. Depress head assembly to prime
N
pump and to Dispense Product.
U d
nit isassembly
O LOOSEN TURN KEY CLAMP and remove hose from pump.
P LIFT PRODUCT POUCH OUT OF SUPPORT. Remove pouch
connection.
REMOVE POUCH CONNECTION END OF HOSE FROM PRODUCT
Q
POUCH.
