KIT 81261
SMOOTHIE DISPENSER
01669-REVA�080414�ENGLISH
Part
Qty.
Description
81263
2

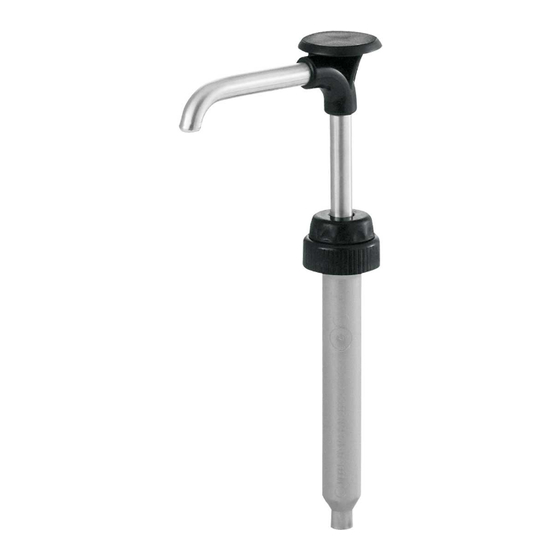

BP-1 (Bottle Pump), 38MM, 10" DEEP, .9 OZ
81288
1
BP-1 (Bottle Pump), 38MM, 10" DEEP, WATER
81289
1
BP-1 (Bottle Pump), 38MM, 10" DP, STRAWBERRY
81293
1
BP-1, 38MM, 10" DEEP, MANGO
83181
2
JAR, FOUNTAIN, PLSTC, 2/3, SHALLOW
83182
6
JAR, FOUNTAIN, PLSTC, 2/3, DEEP
83214
3
LID ASSEMBLY, PLASTIC, 2/3
BK

Advertisement

loading
Need help?

Need help?

Do you have a question about the BP-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Server BP-1

  • Page 1 01669-REVA�080414�ENGLISH KIT 81261 Part Qty. Description SMOOTHIE DISPENSER 81263 BP-1 (Bottle Pump), 38MM, 10” DEEP, .9 OZ 81288 BP-1 (Bottle Pump), 38MM, 10” DEEP, WATER 81289 BP-1 (Bottle Pump), 38MM, 10” DP, STRAWBERRY 81293 BP-1, 38MM, 10” DEEP, MANGO 83181...
  • Page 2 SPECIFIC PUMP CLEANING PUMP DISASSEMBLY PUMP CLEANING BEFORE FIRST USE AND AFTER USE DAILY OR BEFORE FIRST USE AND AFTER USE DAILY, BEFORE FIRST USE AND AFTER USE DAILY, DISASSEMBLE REGULARLY, DISASSEMBLE AND CLEAN PARTS. DISASSEMBLE AND CLEAN PUMP. AND CLEAN PUMP. FOR SAFE AND PROPER CARE, AND TO PREVENT CORROSION, OF PARTS, IT IS IMPORTANT TO REMOVE PUMP FROM FOUNTAIN JAR.
  • Page 3 BOTTLE PUMP PARTS PART PUMP DESCRIPTION 06022 BALL, ½” DIAMETER STAINLESS STEEL KNOBS 81262 81264 81263 GAGING COLLAR - .9 OZ DISCHARGE TUBE 81267 81263 HEAD ASSEMBLY - .9 OZ 81286 81288 HEAD ASSEMBLY - WATER LOCKING COLLAR 81287 81288 GAGING COLLAR - WATER 81291 81289...
  • Page 4 Be aware of the product you are serving and the • Apply food equipment lubricant on seal o-ring. temperature the product is required to maintain. Server Products, Inc. can not be responsible for the INSTALL SEAL ASSEMBLY SECURELY ONTO HEAD serving of potentially hazardous product.
