Server 85783 Manual

Remote dispensing system, remote pump with 36" hose single/twin pouch system
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

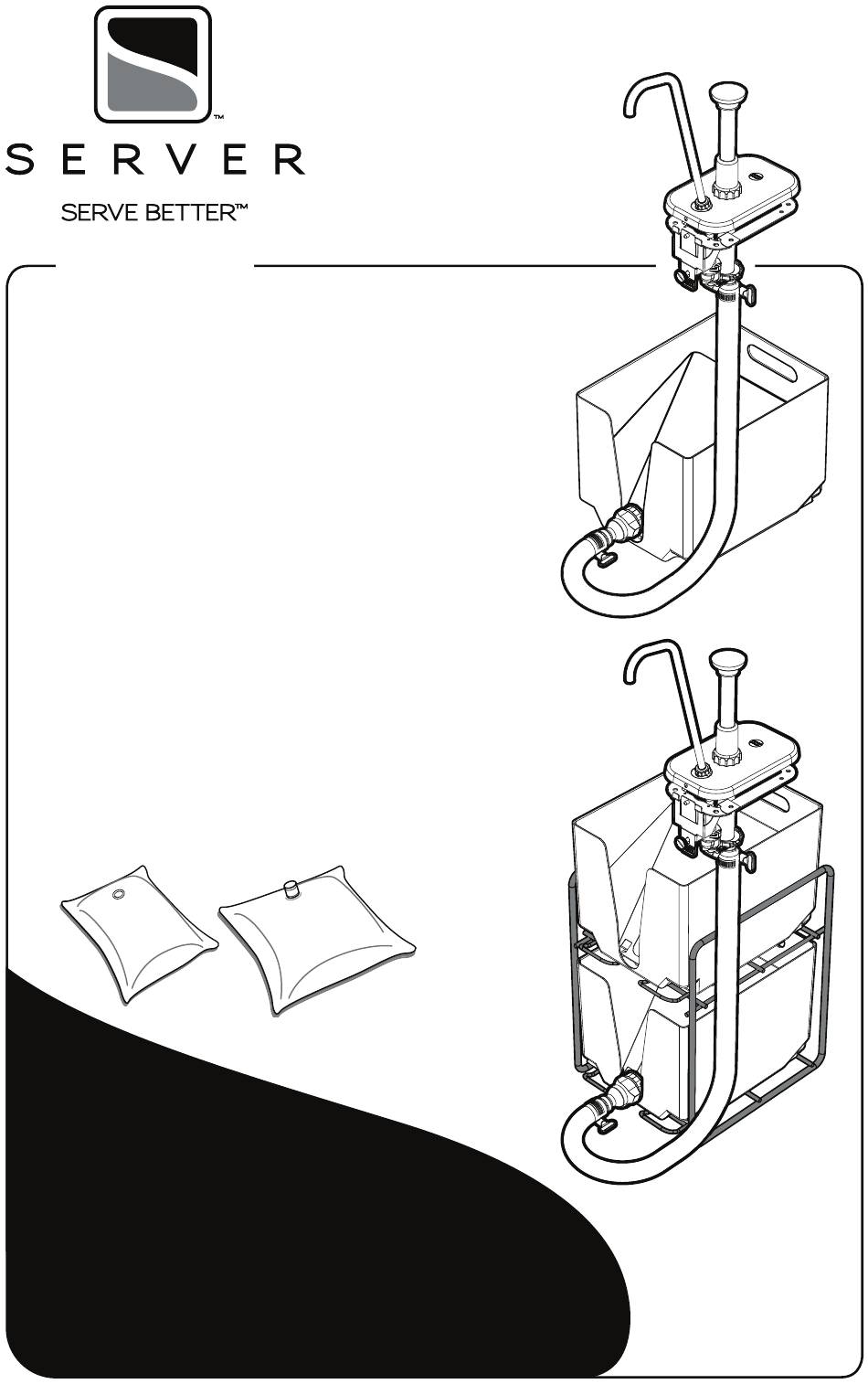

Remote
Dispensing System
Remote Pump with 36" Hose
SINGLE POUCH SYSTEM
85783
Remote Pump with 36" Hose
TWIN POUCH SYSTEM
85784
Use with pouches up to 3 gallons
with either 16mm fitment
or 38mm connector.
Thank You
...for purchasing our Remote Dispensing System.
This manually operated system simplifies
high-volume dispensing, eliminating the
hassle of a CO
driven dispenser.
2
HIGH VOLUME—HIGHLY CONVENIENT

Advertisement

loading
Need help?

Need help?

Do you have a question about the 85783 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Server 85783

Summary of Contents for Server 85783

  • Page 1 Remote Dispensing System Remote Pump with 36" Hose SINGLE POUCH SYSTEM 85783 Remote Pump with 36" Hose TWIN POUCH SYSTEM 85784 Use with pouches up to 3 gallons with either 16mm fitment or 38mm connector. Thank You ...for purchasing our Remote Dispensing System.
  • Page 2 REMOTE SYSTEM PARTS SINGLE POUCH SYSTEM 85783 EVACUATION PUMP PLATE 85951 07814 MOUNTING TORSION BRACKET SPRING 85791 07813 HOSE ASSEMBLY 85758 POUCH SUPPORT 07811 36" HOSE 85255 TWIN POUCH SYSTEM 85784 TURN-KEY (2) EVACUATION CLAMPS (2) PLATES 85877 07814 COUPLING...
  • Page 3 NSF International lists this pump as: Be aware of the product you are serving “Not acceptable for dispensing potentially and the temperature the product is required hazardous foods.” to maintain. Server Products, Inc. cannot be responsible for the serving of potentially hazardous product. Page 3...

  • Page 4: Quick Start

    YOU WILL NEED: QUICK START • A qualified person to install the countertop bracket • Screwdriver, (4) screws, router and/or saw equipment INSTALL THE COUNTERTOP BRACKET • Choose a location with easy access and • Use cutout template included to mark, convenient height for pump.
  • Page 5 PREPARE POUCH(ES) Place condiment pouch on flat surface with pouch connector or fitment facing upward. If pouch has If pouch has 38MM EXTERNAL CONNECTOR 16MM INTERNAL FITMENT • Remove pouch cap. • Screw dispensing cap onto adapter. • Screw dispensing cap onto connector. •...
  • Page 6 SWITCHING POUCHES WHEN A CONDIMENT POUCH BECOMES EMPTY... DISCONNECT HOSE FROM EMPTY POUCH Press button on side of hose coupling to release. SNAP HOSE COUPLING ONTO DISPENSING CAP ON NEW POUCH See page 5 for how to prepare pouch(es). DID YOU KNOW? The hose coupler and dispensing cap prevent leaks when hose is disconnected.
  • Page 7 DISASSEMBLY DISCONNECT HOSE FROM PUMP Turn hose clamp turn-key counter-clockwise to loosen the hose. DISCONNECT HOSE FROM POUCH Press button on side of hose coupling to release. REMOVE PART(S) FROM POUCH Unscrew dispensing cap from pouch. IF USED: Remove adapter from 16mm pouch fitment. IMPORTANT: Only throw away empty pouch.

  • Page 8: Need Help

    Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt. Typically, units are repaired Server Products equipment is backed by a and ship out within 48 hours.

This manual is also suitable for:

85784
