Summary of Contents for Server EXTREME CARLS JR. 13G Series

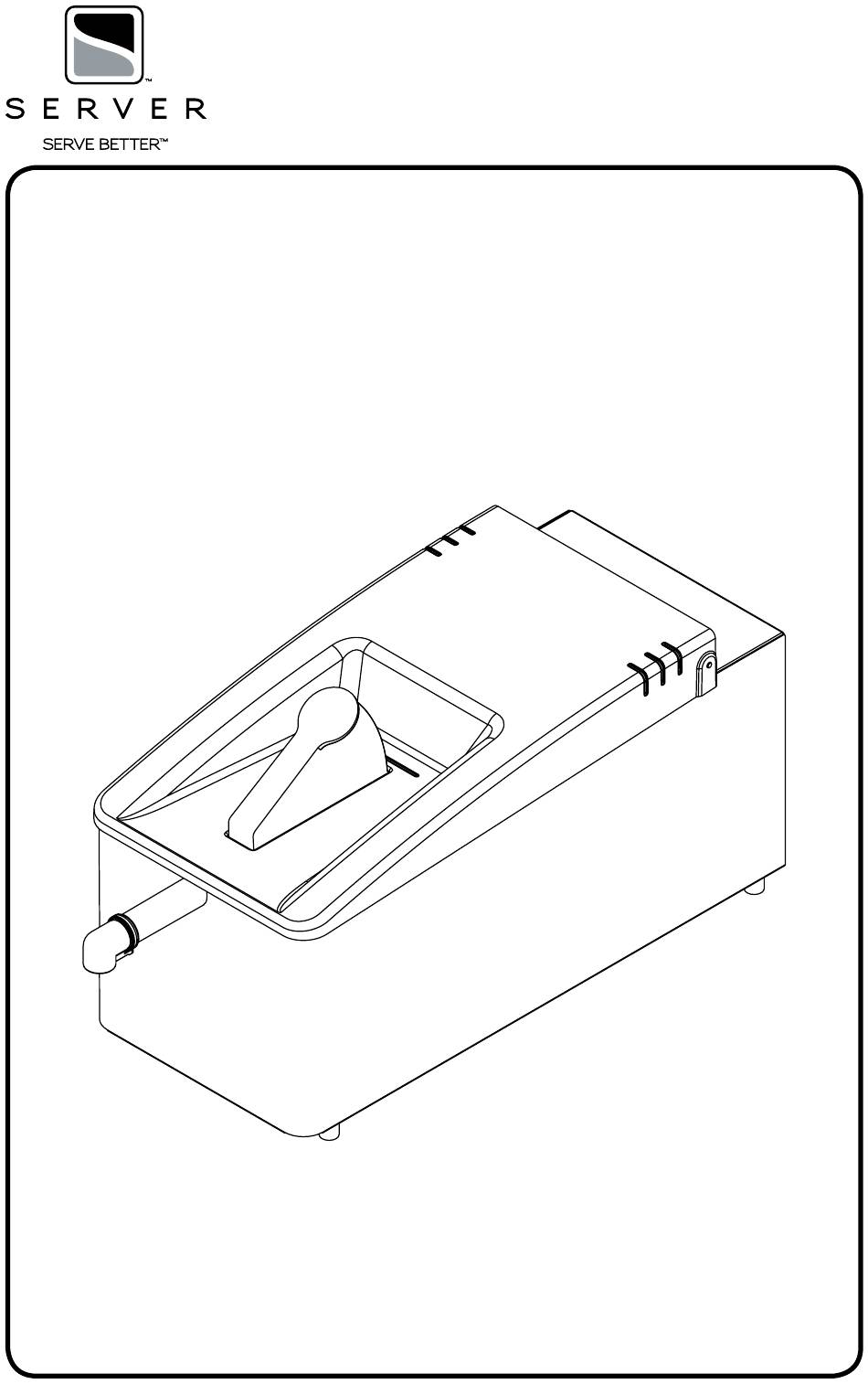

- Page 1 01747-REVA�080414�ENGLISH MODEL: EXTREME COUNTERTOP DISPENSER CARLS JR. Series 13G 07555...
-
Page 2: Portion Control
PORTION CONTROL UNIT SET-UP ALWAYS CLEAN UNIT THOROUGHLY BEFORE FIRST USE. Portion control is the amount of product which will SEE SAFETY GUIDELINES, UNIT TAKE-DOWN, PUMP dispense from the pump with each full push of the lever. DISASSEMBLY, CLEANING, AND PUMP ASSEMBLY. The roller, which is attached to the bottom of the lever, can be adjusted to allow for specific portion control. -
Page 4: Pump Disassembly
PUMP DISASSEMBLY PUMP ASSEMBLY ALWAYS CLEAN PUMP THOROUGHLY BEFORE EACH USE. REMOVE O-RING FROM CONNECTOR. SEE UNIT TAKE-DOWN, PUMP DISASSEMBLY, PUMP • Carefully pry o-ring off with fingers. ASSEMBLY, SAFETY GUIDELINES, AND CLEANING. Do not use a tool or any sharp object to remove o-ring, this will damage the o-ring. -
Page 5: Pump Cleaning
PUMP CLEANING CLEANING UNIT BEFORE FIRST USE AND AFTER USE DAILY OR BEFORE FIRST USE AND AFTER USE DAILY, REGULARLY, DISASSEMBLE AND CLEAN PARTS. DISASSEMBLE AND CLEAN UNIT. FOR SAFE AND PROPER CARE, AND TO PREVENT STAINLESS STEEL PARTS CAN CORRODE. CORROSION, OF PARTS, IT IS IMPORTANT TO IT IS IMPORTANT TO CLEAN, RINSE, SANITIZE, AND CLEAN, RINSE, SANITIZE, AND DRY PARTS DAILY OR... -
Page 6: Parts List
PARTS LIST Part # Qty. Description 07014 LEVER 07056 ROLLER 07161 PIN, HINGE 07383 DOME, PUMP 07388 PUMP HOUSING ASSEMBLY 07823 07813 SPRING, TORSION 07507 CONNECTOR, ANTI-CHOKE OFF 07814 PLATE, EVACUATION 07818 HOUSING, OUTER ASSEMBLY 07517 CAP, PLASTIC 38MM 07796 FITTING, DISCHARGE 07798 VALVE, PINCH... - Page 7 07555 07014 81105 07161 07056 07823 07814 07813 07821 07811 86337 07818 82049 81058...
-
Page 8: Unit Troubleshooting
UNIT TROUBLESHOOTING GENERAL SERVICE, REPAIR, OR RETURNS Possible Problems: Before sending any item to Server Products for service, • Pump dispenses little or no product. repair, or return, contact Server Products customer service to request a Return Authorization Number. • Portion control is not consistent.
