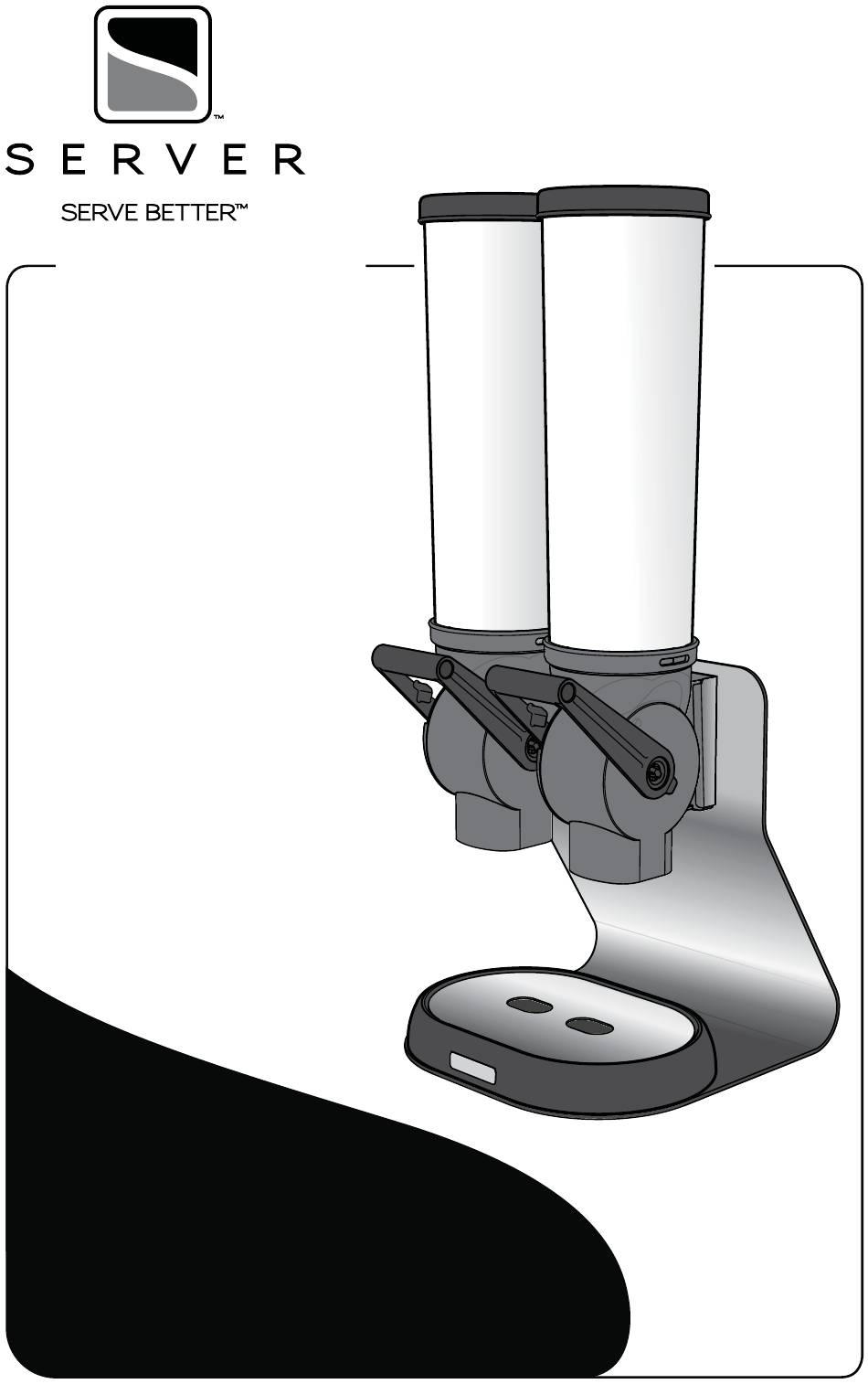

CerealServ
™
CEREAL DISPENSERS
MODELS:
DFD-C
DFD-C-ST
DFD-C-2
DFD-C-3
Thank You
...for purchasing our CerealServ™ Dispensers.
Eliminate the waste of single-serve cereal packages.
These robust dispensers easily dispense favorites with
Configurations vary.
an ADA compliant handle – no twisting wrist motion or
See page 3.
tight grasping required.
SERVE CEREAL—BETTER

Advertisement

loading
Need help?

Need help?

Do you have a question about the CerealServ DFD-C and is the answer not in the manual?

Questions and answers

Related Manuals for Server CerealServ DFD-C

Summary of Contents for Server CerealServ DFD-C

  • Page 1 CerealServ ™ CEREAL DISPENSERS MODELS: DFD-C DFD-C-ST DFD-C-2 DFD-C-3 Thank You ...for purchasing our CerealServ™ Dispensers. Eliminate the waste of single-serve cereal packages. These robust dispensers easily dispense favorites with Configurations vary. an ADA compliant handle – no twisting wrist motion or See page 3.
  • Page 2 Keep fingers clear of all moving parts to prevent and the temperature the product is required operator injury when dispensing product, during to maintain. Server Products, Inc. cannot cleaning, assembly and disassembly. be responsible for the serving of potentially hazardous product.

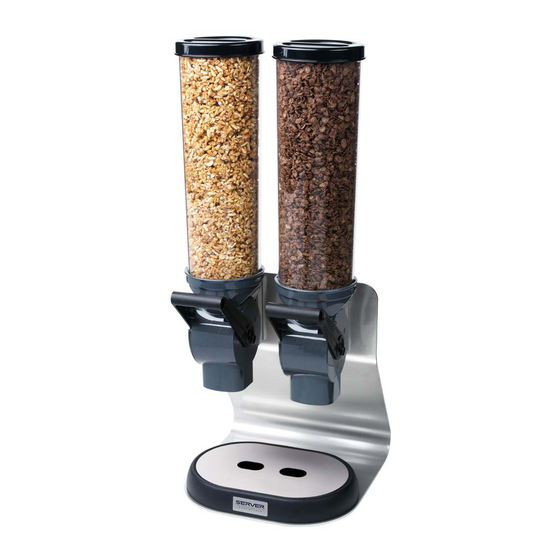

  • Page 3 CONFIGURATIONS WALL-MOUNTED DFD-C-2 | DFD-C-3 1.5 LITER DISPENSERS 88930 Double with mounting bracket 88950 Triple with mounting bracket 3 LITER DISPENSERS 88940 Double with mounting bracket 88960 Triple with mounting bracket COUNTERTOP DFD-C-ST 1.5 LITER DISPENSERS 88890 Double with countertop stand 88910 Triple with countertop stand 3 LITER DISPENSERS...

  • Page 4: Install Cylinder

    PRACTICE SAFETY. WASH ALL PARTS ASSEMBLY PROPERLY BEFORE USE. See page 2. ATTACH FRICTION PAD Insert four triangular tabs on friction pad into matching slots in cylinder. INSTALL CYLINDER Slide cylinder into the opening of dispenser body. INSTALL HANDLE ONTO BODY & CYLINDER Slide handle over both sides of body and cylinder.
  • Page 5 ADD HOPPER TUBE Insert tabs of hopper into slots on body. Turn clockwise until secure. Hopper snaps into place. FILL UNIT WITH CEREAL PUT THE LID ON TOP OF HOPPER MOUNTING COUNTERTOP STAND Slide dispenser into bracket of stand. WALL BRACKET INSTALLATION YOU WILL NEED: •...

  • Page 6: Troubleshooting

    For cylinder to advance and serve a portion, the handle must travel its full range of motion up and down. SWING HANDLE UP FULLY to load the cylinder chamber. Handle CLICKS above side notch. SWING HANDLE DOWN FULLY to dispense the serving.
  • Page 7 DISASSEMBLY REMOVE LID EMPTY INGREDIENTS FROM UNIT REMOVE HOPPER Turn hopper counterclockwise to remove tabs from slots on body. REMOVE PIVOT PIN Rotate pin to the unlock position and take it out. REMOVE HANDLE Lift handle upward to the position just before it would click.

  • Page 8: Need Help

    Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service Server Products equipment is backed by a is extremely prompt. Typically, units are repaired two-year limited warranty against defects in and ship out within 48 hours of receipt.
